7 INSTALLING THE X-RAY UNIT
20 Planmeca ProOne Installation Manual

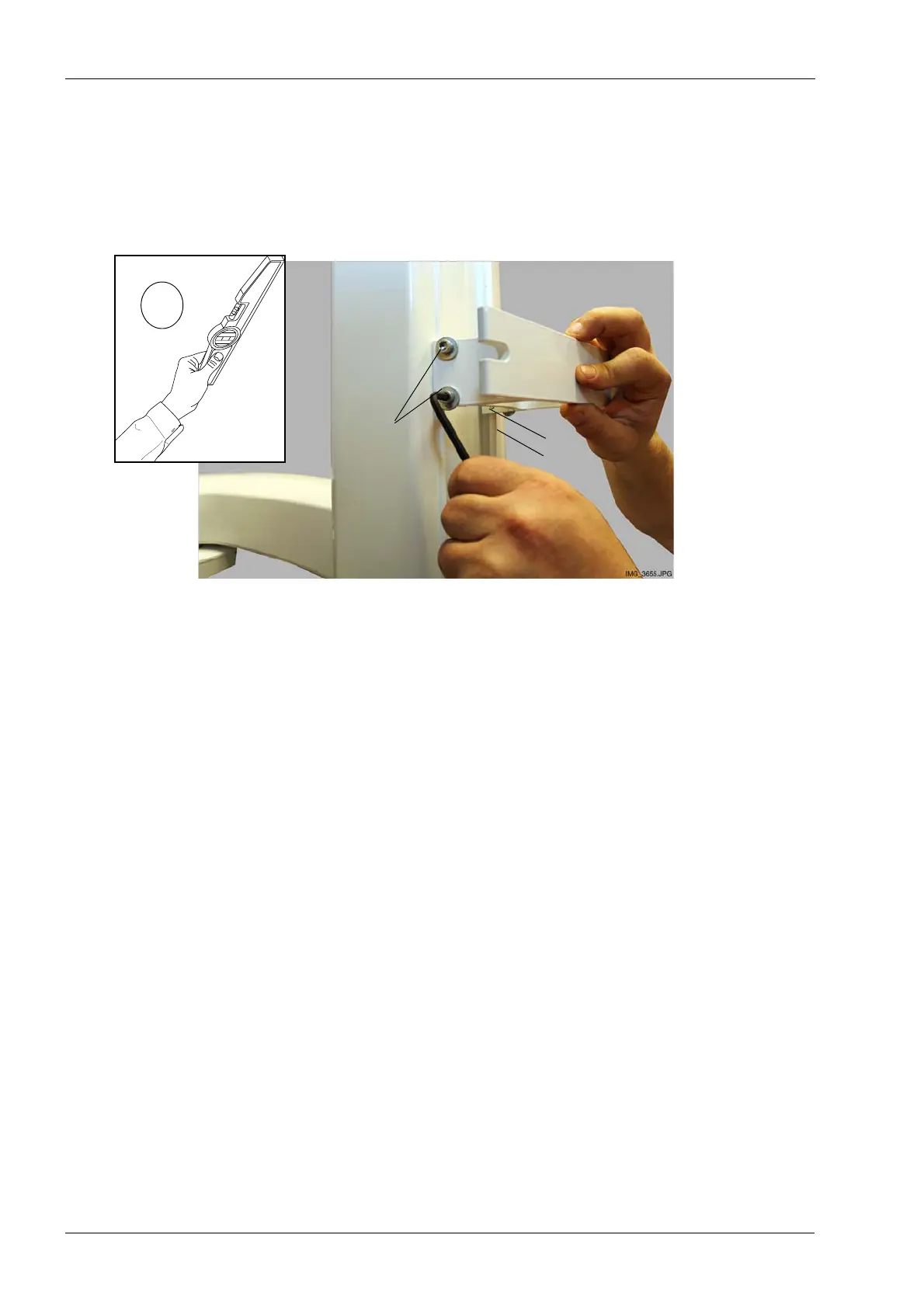

2. Carefully move the X-ray unit against the wall bracket. Attach the wall bracket to the
X-ray unit column by tightening the four attachment screws (two on each side). The
wall bracket clamps must press firmly against the guide rails inside the column.
NOTE
Use a spirit level to ensure that the column is vertical.
Clamp
Guide rail
Attachment screws
(two on each side)
!
(view as seen from the side of the wall)
