9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
3.55
ENGINE ASSEMBLY VIEWS

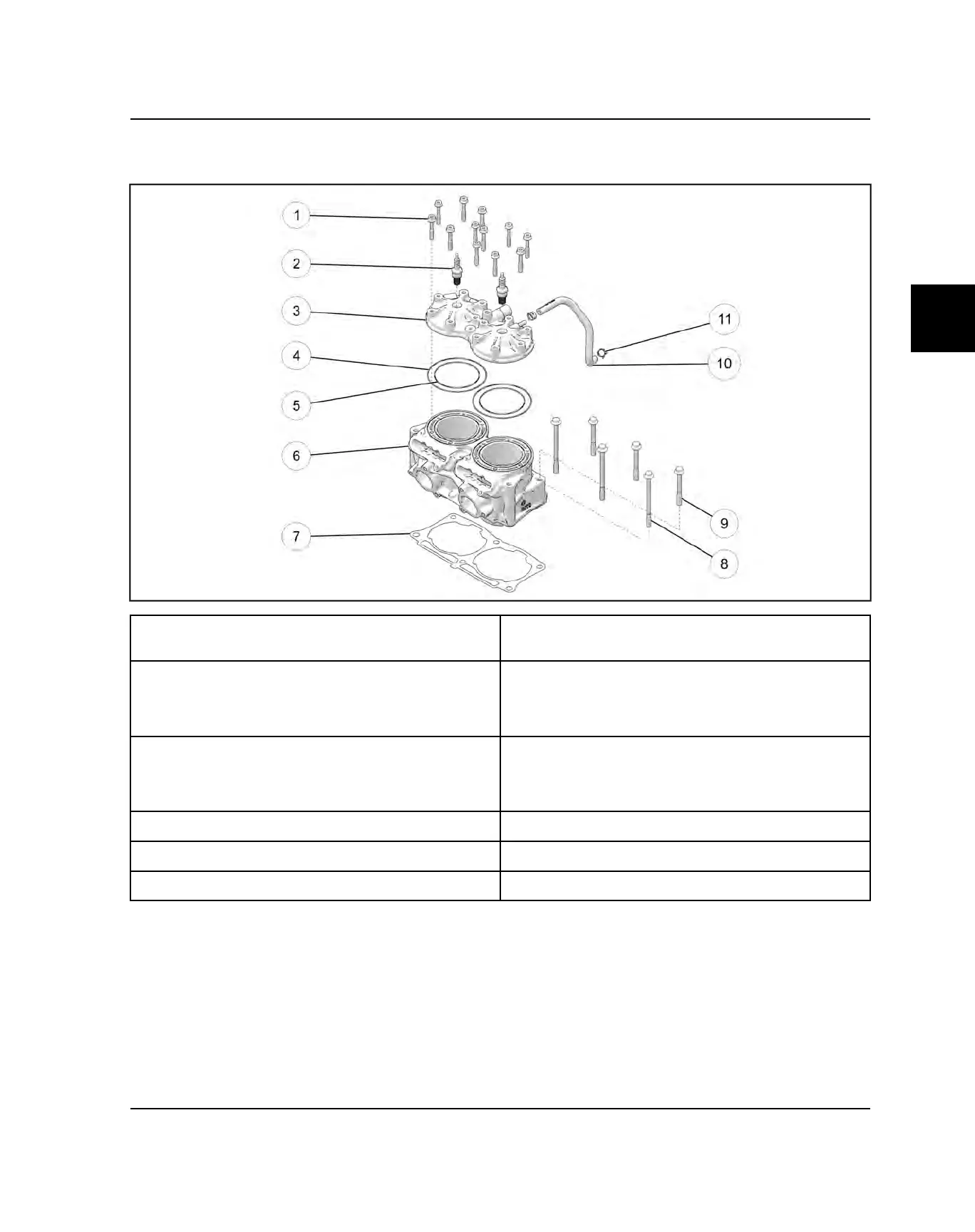

CYLINDER ASSEMBLY VIEW
q
Cylinder Head Fasteners (M8 x 1.25 x 50)
23 ft-lbs (31 N·m)
u
Cylinder Base Gasket
w
Spark Plug
i
Cylinder Fasteners (M10 x 1.50 x 127)
40 ft-lbs (54 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
e
Cylinder Head
o
Cylinder Fasteners (M10 x 1.50 x 83)
40 ft-lbs (54 N·m)
Apply VES oil under fastener head and to threads prior
to installation.
r
O-Ring
a
Throttle Body Coolant Hose
t
O-Ring
s
Springband Clamp
y
Cylinder
