9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
10.7
ELECTRICAL HARNESS

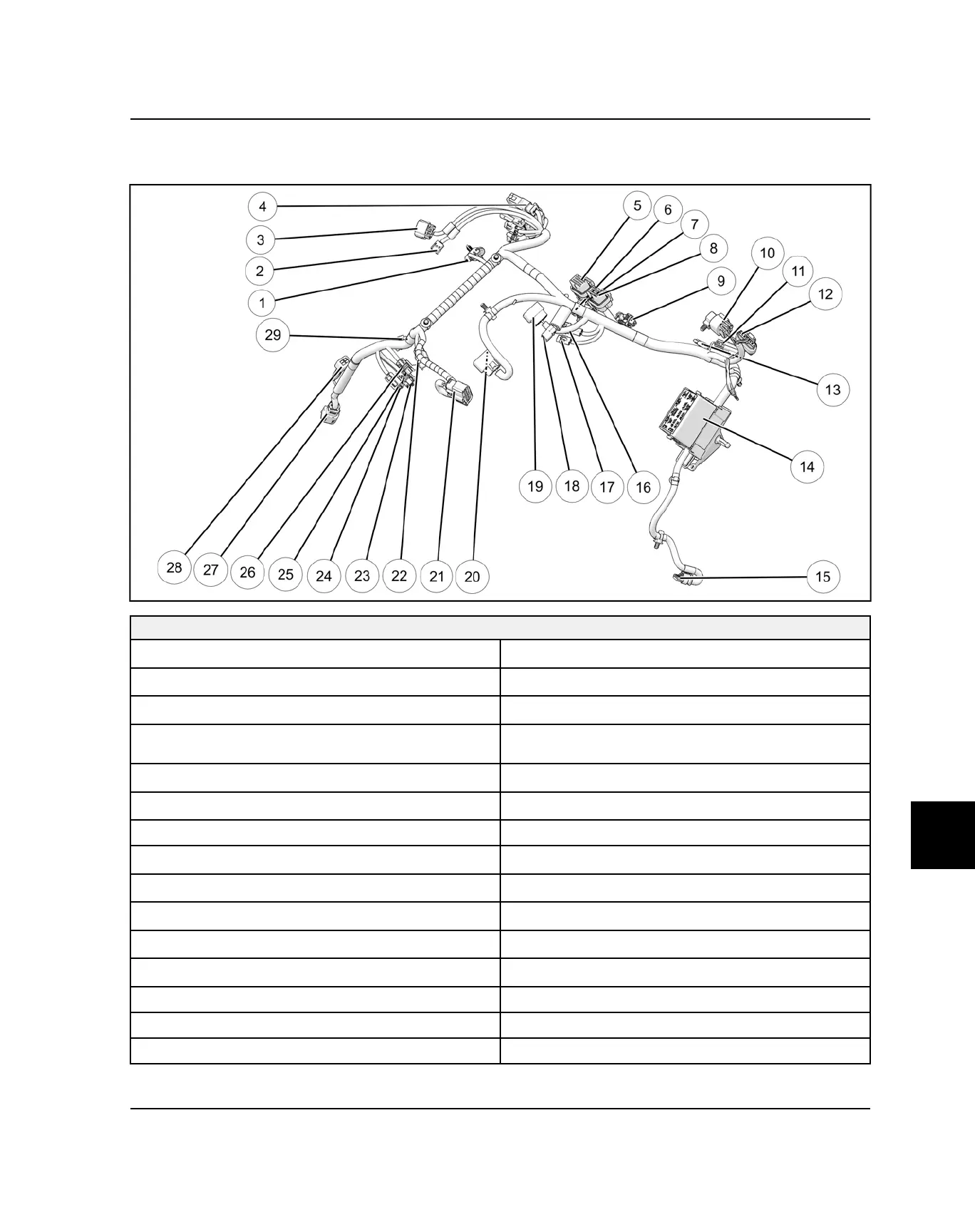

CHASSIS HARNESS CONNECTORS
CONNECTOR DESCRIPTION
q
Tail Light
j
Ignition Coil (MAG)
w
Fuel Pump
k
Ignition Coil (PTO)
e
Console Jumper
l
Stator Signals
r
Handlebar Harness, Refer to Handlebar Connectors page
10.10
1(
PBR (ECU, CAN, GND)
t
ECU Connector B
2)
PBR (DC Power)
y
Coolant Temp Sensor
2!
Chassis / Hood
u
TMAP Sensor
2@
EGT2 Sensor
i
ECU Connector A
2#
Injector Harness
o
Detonation Sensor
2$
Oil Pump
a
Diagnostic Connector
2%
TPS Sensor
s
EGT Sensor
2^
Ground Speed Sensor
d
Diagnostic Power
2&
Ground Speed Capacitor
f
Oil Level
2*
Electric Start
g
Load Center
2(
Fuel Sensor
h
EV Actuator
BATTERY / ELECTRICAL
