9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

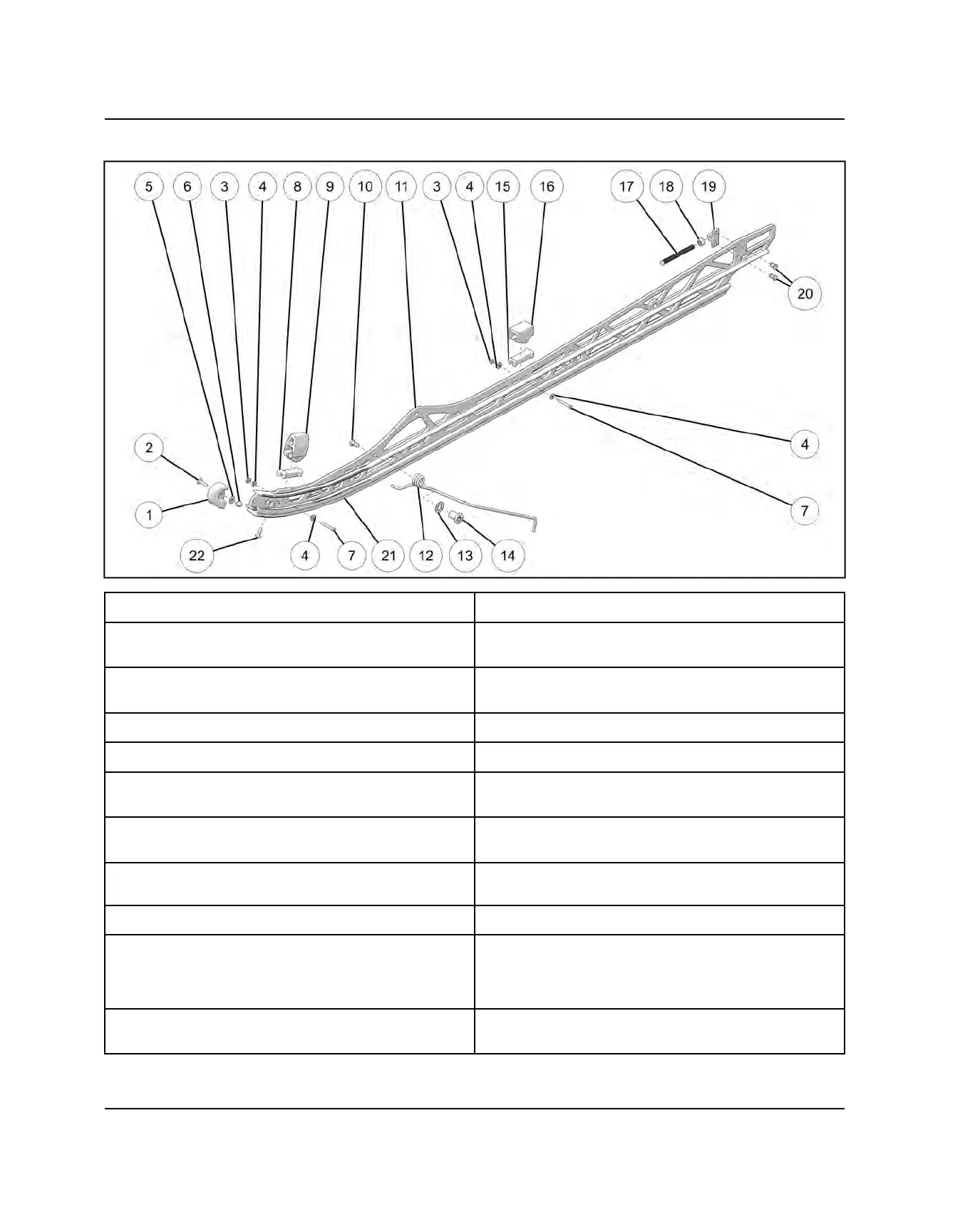

RMK RAIL ASSEMBLY VIEW
q
Rail Tip
d
Scratcher
w
Screw (M6 x 1.0 x 30)
Screw head located on opposite side of adjuster blocks.
f
Washer
e
Nut (M5 x 0.8)
Torque until screw protrudes 5mm out of nut
g
Bushing (M8)
r
Washers
h
Bumper Liner
t
Washers
j
Bumper
y
Nut (M6 x 1.0)
4 ft-lbs (6 Nm)
k
Adjuster Screw (M10 x 1.5 x 100)
u
Screw (M5 x 0.8 x 40)
Screw head located on adjuster block side of rail.
l
Jam Nut (M10 x 1.5)
i
Bumper Liner
1(
Adjuster Block
Riveted to outside of rail.
o
Bumper
2)
Rivets
a
Screw (M8 x 1.25 x 20)
14 ft-lbs (19 Nm) +/- 20%
Head of screw to be on same side of rail as adjuster
block
2!
Rail Slider
s
Rail Beam
2@
Screw (M6 x 1.0 x 20)
4 ft-lbs (6 Nm)
STEERING / SUSPENSIONS
