9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
8.7

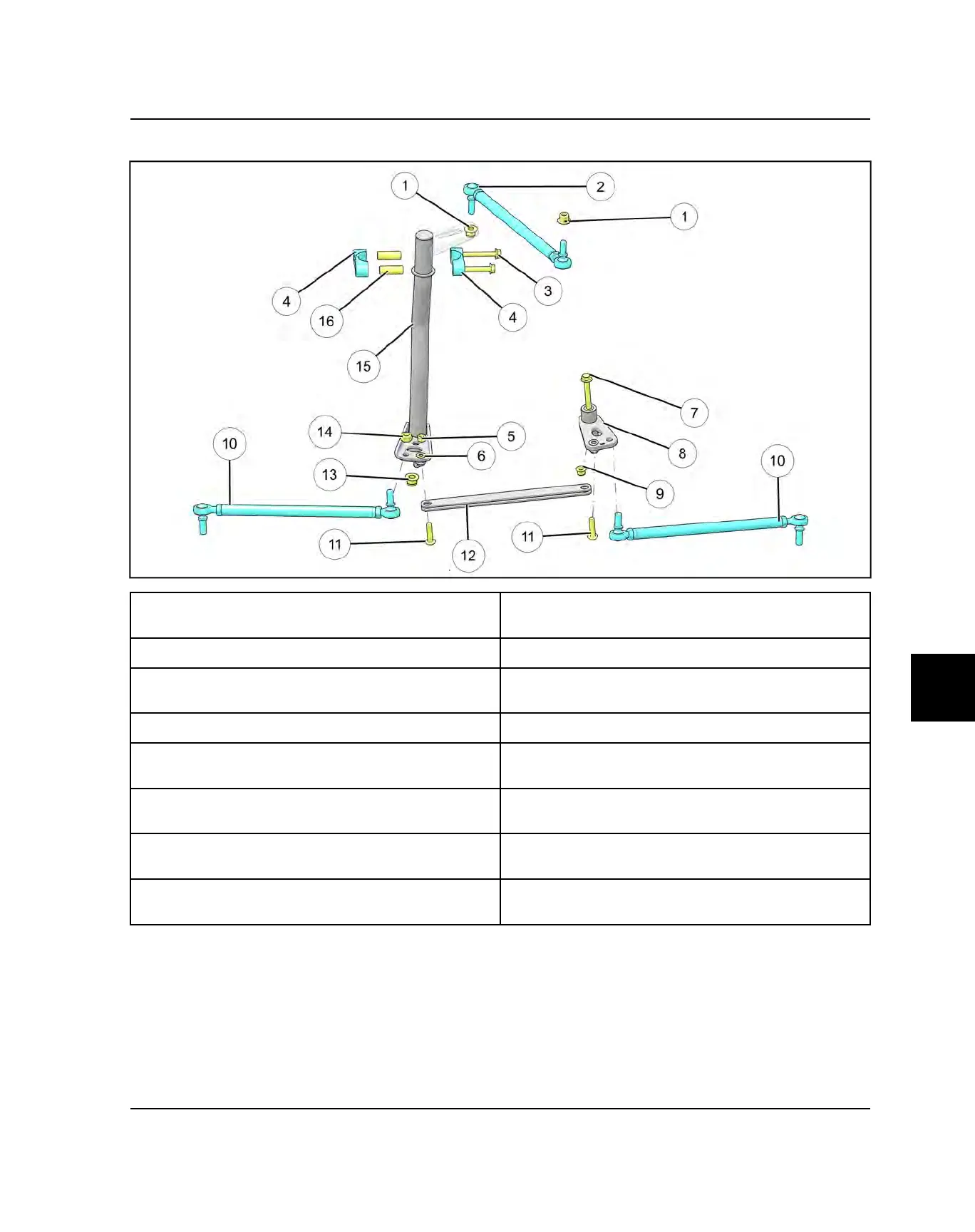

LOWER STEERING ASSEMBLY - AXYS REACT
q
Draglink Assembly Fastening Nut (M10X1.5)
37 ft-lbs (50 Nm)
o
Idler Assembly Fastening Nut (M8X1.25)
30 ft-lbs (41 Nm)
w
Draglink Assembly
a
Tie Rod Assembly
e
Lower Steering Post Bushing Fastener (M8X1.25X55)
22 ft-lbs (30 Nm)
s
Rack Link Fastener (M8X1.25X35)
20 ft-lbs (27 Nm)
r
Lower Steering Post Bushing
d
Rack Link Assembly
t
Rack Link Assembly Fastening Nut (M8X1.25)
20 ft-lbs (27 Nm)
f
Steering Post Fastening Nut (M10X1.5)
22 ft-lbs (30 Nm)
y
Washer (8.4X16.0X0.91)
g
Tie Rod Fastening Nut (M10X1.5)
37 ft-lbs (50 Nm)
u
Idler Assembly Fastener (M8X1.25X85)
30 ft-lbs (41 Nm)
h
Steering Post
i
Idler Assembly
j
Steering Post Bushing Spacer
Grease Before Assembly
STEERING / SUSPENSIONS
