Polaris 850 PRO-RMK 155 2020 - Coolant Bottle Assembly View

3
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
3.129

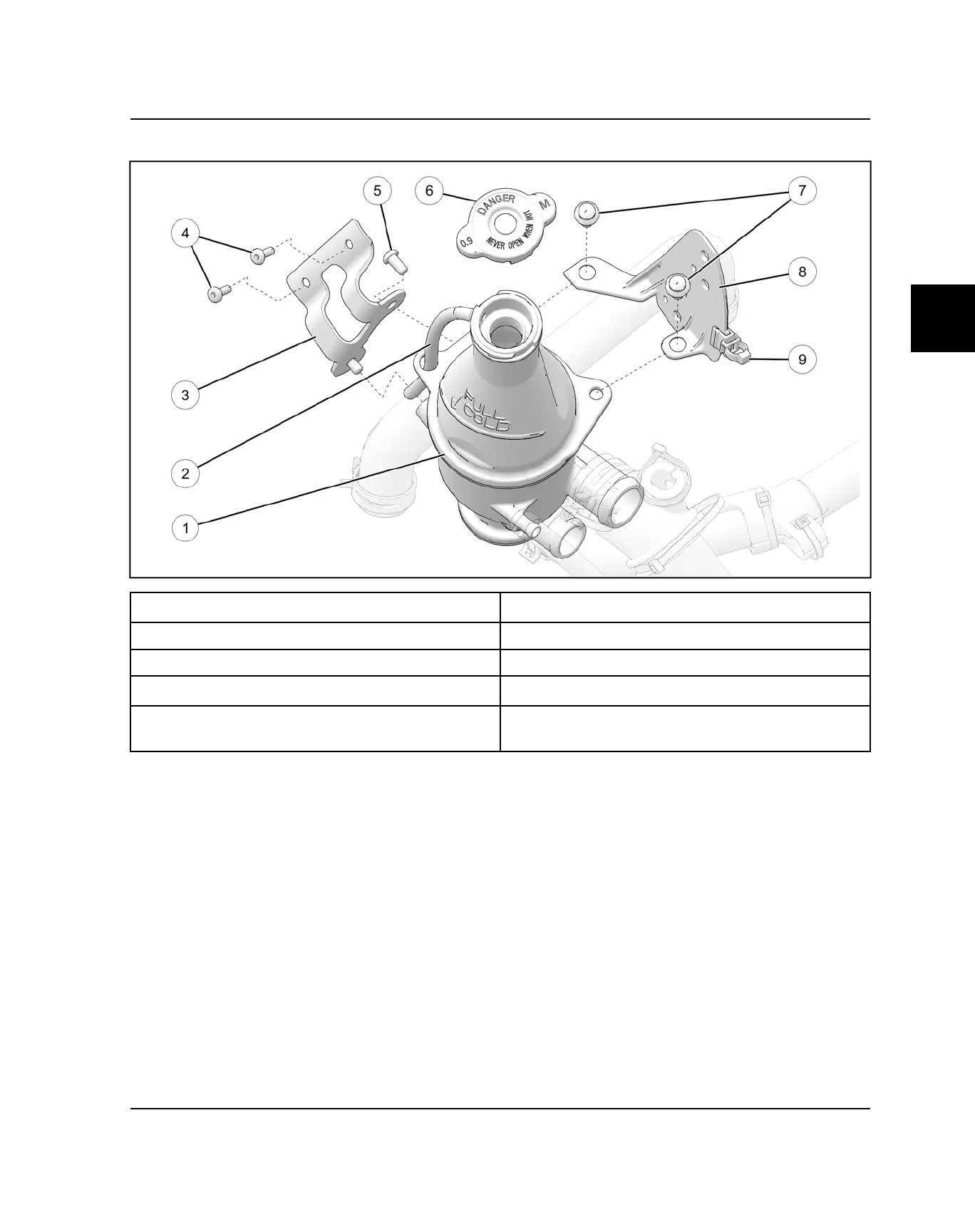

COOLANT BOTTLE ASSEMBLY VIEW
q
Coolant Bottle
y
Pressure Cap
w
Coolant Bottle Vent Line
u
Plastic Push Rivet
e
Coolant Bottle Bracket
i
Connector Placement Bracket
r
Rivet
o
Edge Clip
t
Coolant Bottle Bracket Fasteners
7 ft-lbs (9 Nm)
