Polaris 850 PRO-RMK 155 2020 - Engine Mount Assembly View

3
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
3.59

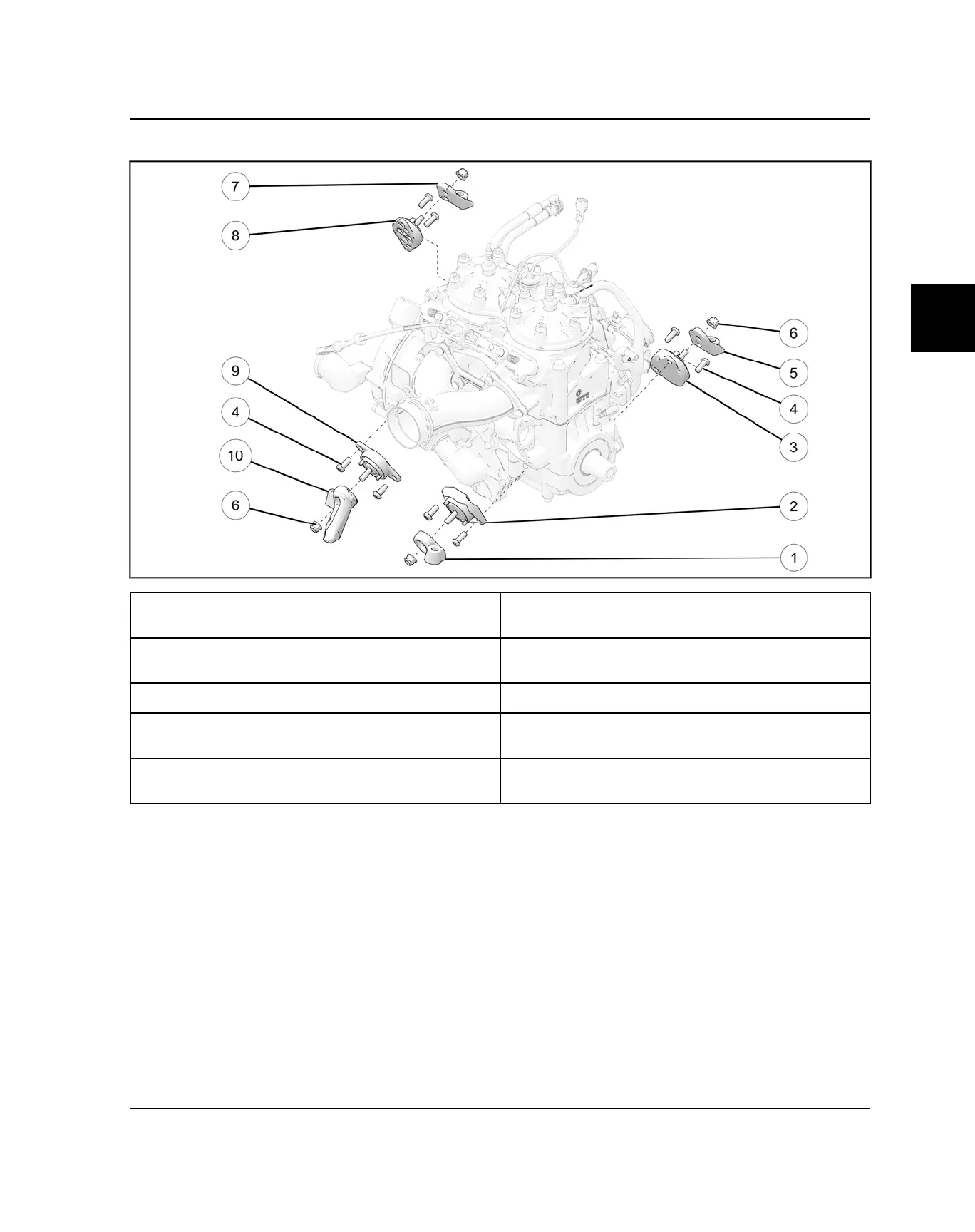

ENGINE MOUNT ASSEMBLY VIEW
q
Front PTO Engine Mount Bracket
Mount Bracket to be retained while mount nut is torqued
y
Engine Mount Bracket Nut (M8 x 1.25)
18 ft-lbs (24 N·m)
w
Front PTO Engine Mount
u
Rear MAG Engine Mount Bracket
Mount Bracket to be retained while mount nut is torqued
e
Rear PTO Engine Mount
i
Rear MAG Engine Mount
r
Engine Mount Fasteners (M8 x 1.25 x 20)
18 ft-lbs (24 N·m)
o
Front MAG Engine Mount
t
Rear PTO Engine Mount Bracket
Mount Bracket to be retained while mount nut is torqued
a
Front MAG Engine Mount Bracket
Mount Bracket to be retained while mount nut is torqued
ENGINE / COOLING / EXHAUST
