8.26
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

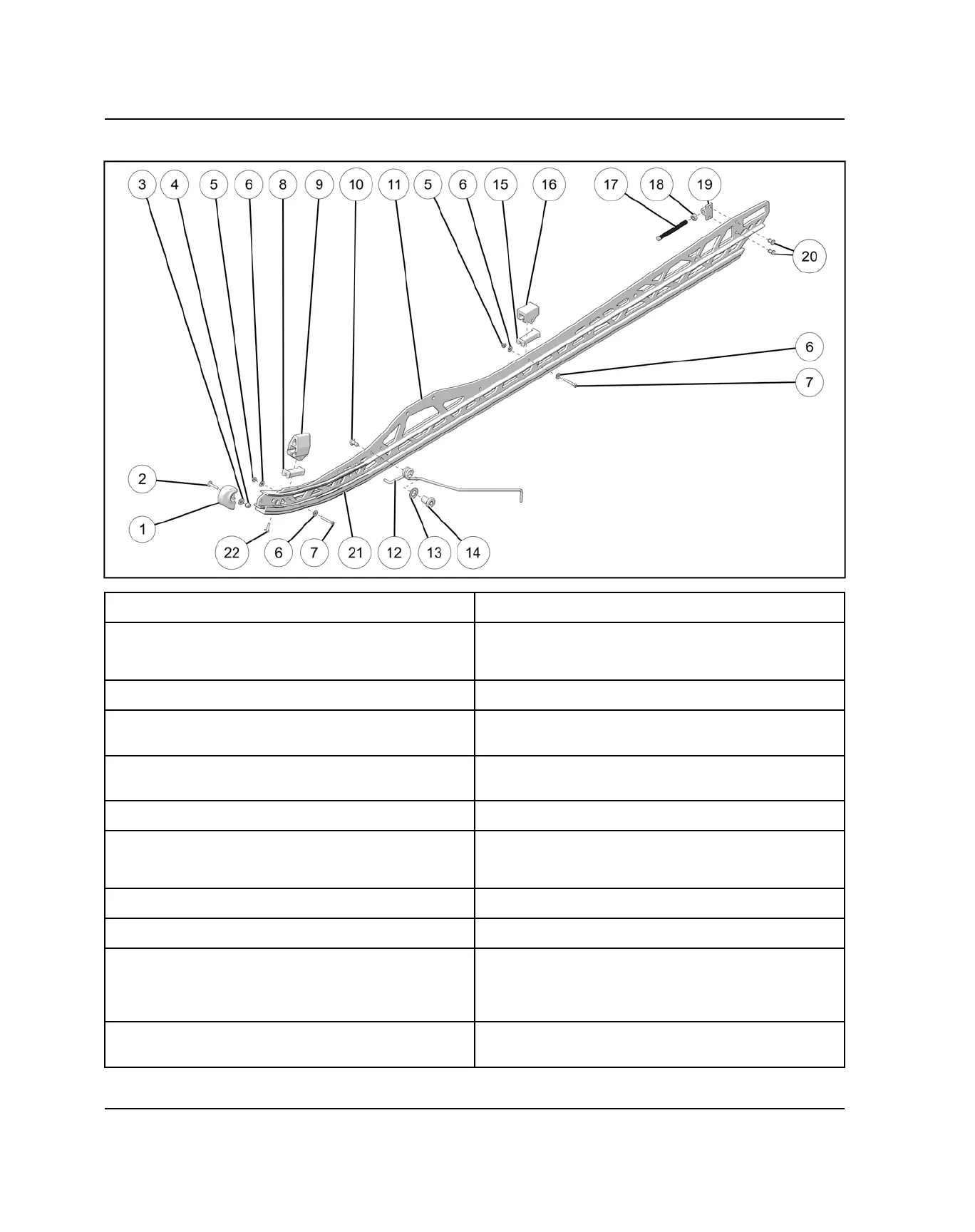

RMK 174" RAIL ASSEMBLY VIEW
q
Rail Tip
d
Scratcher
w
Screw
Head of screw to be on same side of rail as adjuster
block
f
Washer
e
Washers
g
Bushing (M8)
r
Nut
4 ft-lbs (6 Nm)
h
Bumper Liner
t
Nut
Torque until screw protrudes 5mm out of nut
j
Bumper
y
Washer
k
Adjuster Screw
u
Screw
Head of screw to be on opposite side of rail as adjuster
block
l
Jam Nut
i
Bumper Liner
1(
Adjuster Block
o
Bumper
2)
Rivets
a
Screw (M8 x 1.25 x 20)
14 ft-lbs (19 Nm) +/- 20%
Head of screw to be on same side of rail as adjuster
block
2!
Rail Slider
s
Rail Beam
2@
Screw
4 ft-lbs (6 Nm)
STEERING / SUSPENSIONS
