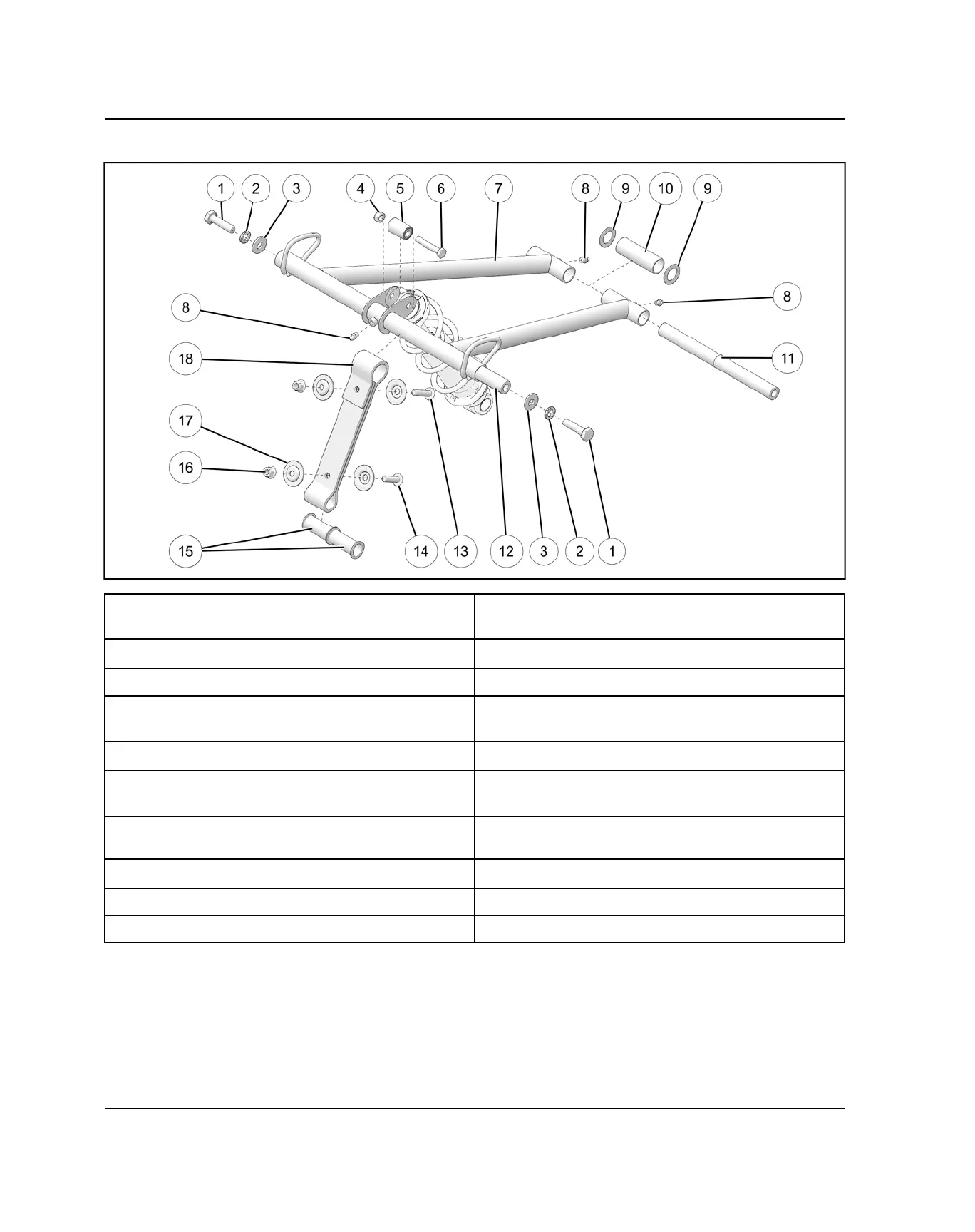

RMK 174" FRONT TORQUE ARM ASSEMBLY VIEW
q
Screw
47 ft-lbs (64 Nm)
s
Cross Shaft
w
Spring Lock Washers
d
Hollow Shaft
e
Washers
f
Screw
r
Nut
17 ft-lbs (23 Nm)
g
Screw
t
Shock Bushing
h
Bushing
y
Screw
j
Flange Nuts
17 ft-lbs (23 Nm)
u
Torque Arm
k
Domed Washers
Install dome-side out.
i
Lubrication Fittings
l
Limiter Strap
o
Washers
— Front Track Shock
a
Tube
STEERING / SUSPENSIONS
