10.80
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

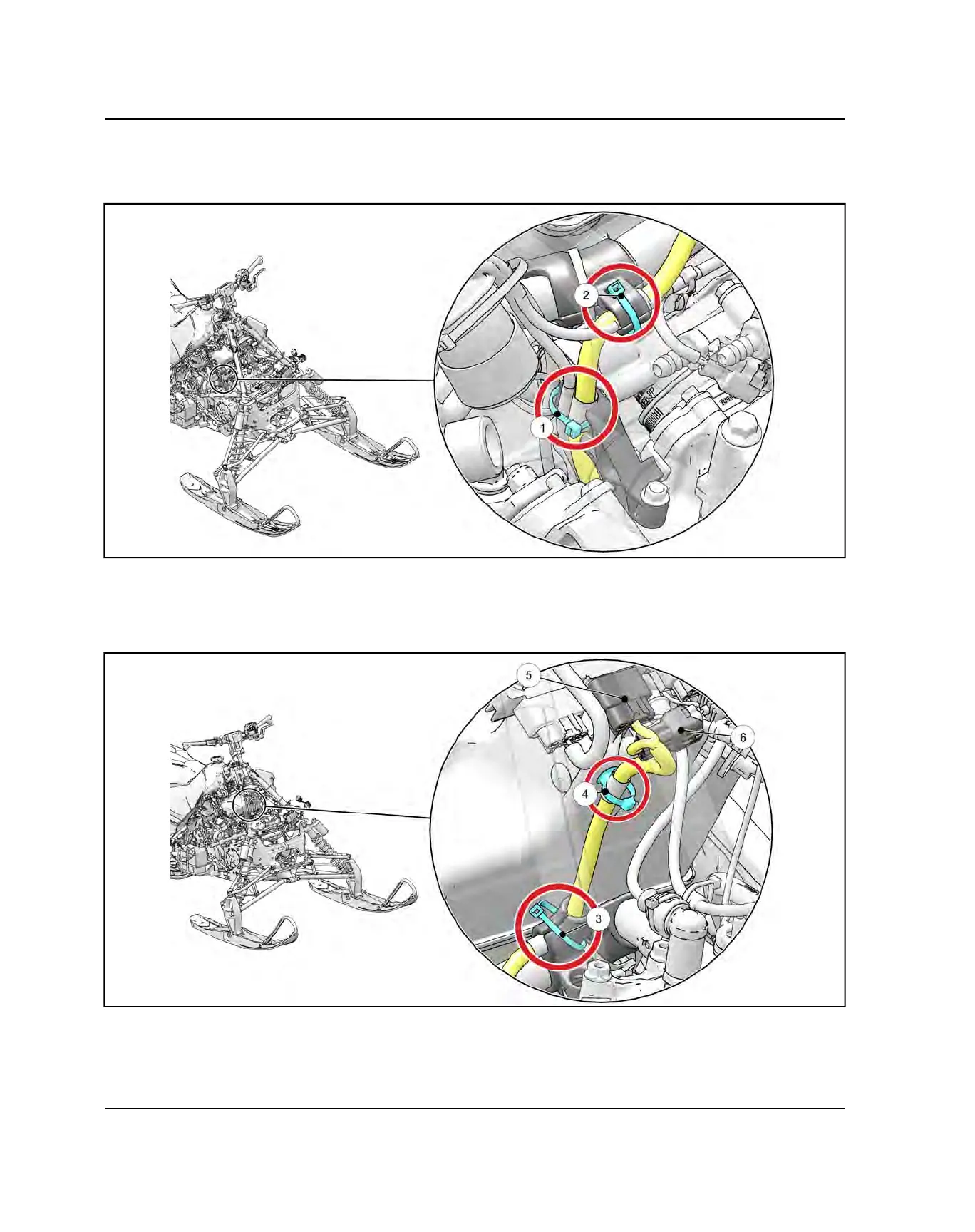

STATOR HARNESS ROUTING
1. Route the stator harness up to the stator wire retainer and secure stator harness and TPS harness with a panduit
strap
q
.
2. Continue routing the stator harness to the stator wire support on the coolant hose and secure stator harness and
fuel injector harness with a panduit strap
w
.
3. Continue routing the stator harness to the throttle cable / hose support on the coolant hose and secure stator
harness and fuel injector harness with a panduit strap
e
.
4. Route the stator harness upward along the air box and secure to the routing clip
r
on the air box. Connect the 3
pin connector
t
to the PBR and the 6 pin connector
y
to the main harness.
BATTERY / ELECTRICAL
