5.6
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
FUEL INJECTORS / FUEL RAIL / THROTTLE BODY

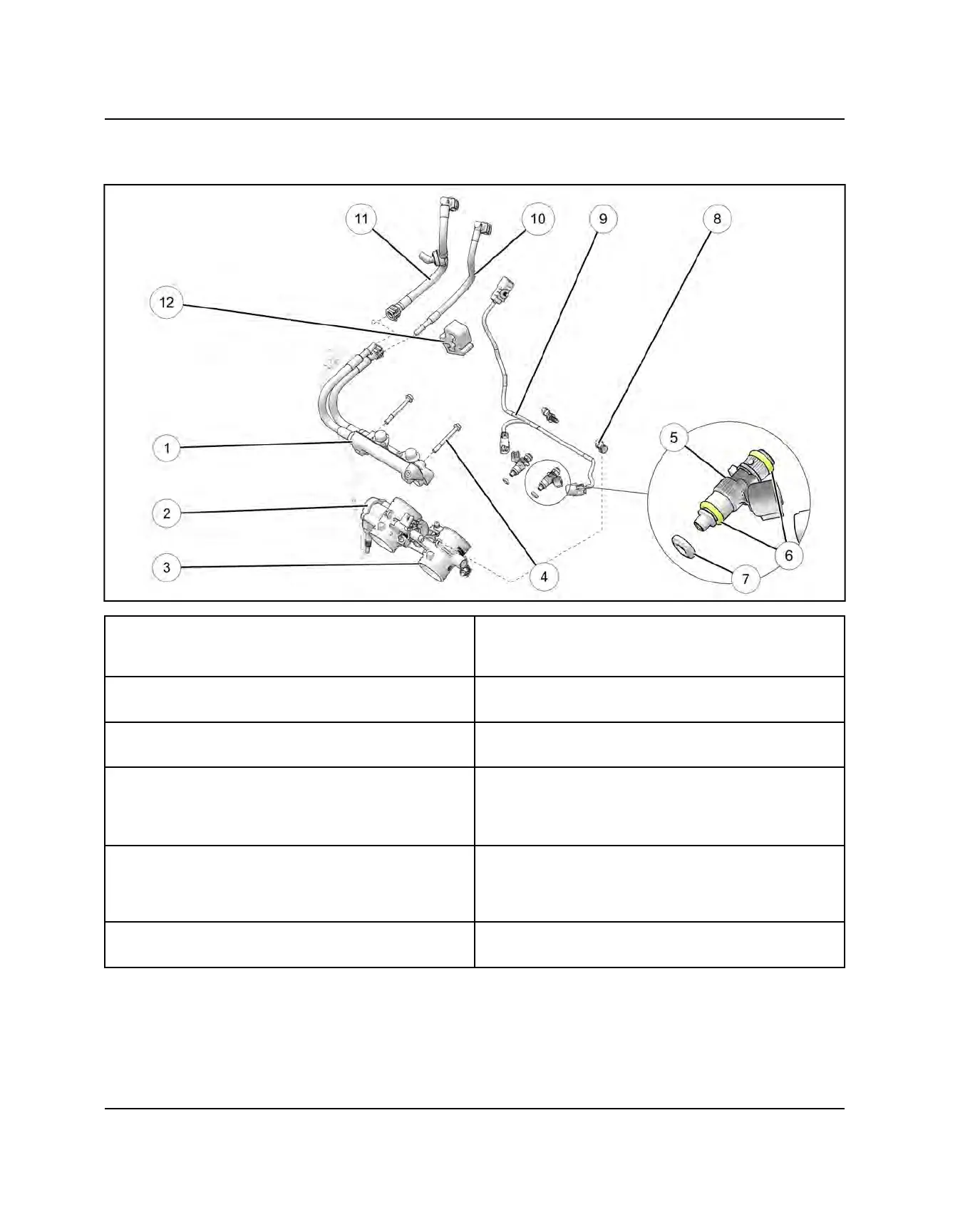

FUEL RAIL / THROTTLE BODY ASSEMBLY VIEW
q
Fuel Rail Assembly
Do not service fuel hoses or micro dampers. Replace
with new service assembly.
u
Rubber Bushing
Replace with new when removed.
w
Throttle Position Sensor (TPS)
Located on MAG side of Engine
i
Routing Clip
e
Throttle Body Assembly
Service part includes TPS.
o
Fuel Injector Service Harness
r
Fuel Rail Mounting Fasteners
First Pass: 5 ft-lbs (6.5 N·m)
Second Pass: 15 ft-lbs (20 N·m)
a
Fuel Hose- Supply
Supply Quick Connect Fittings (RED)
t
Fuel Injectors
Individual fuel injectors are not serviceable. Replace
both fuel injectors with fuel injector service harness. O-
rings and bushing are serviceable.
s
Fuel Hose- Return
Return Quick Connect Fittings (BLUE)
y
O-Ring
Replace with new when removed.
d
Foam Block
FUEL SYSTEM
