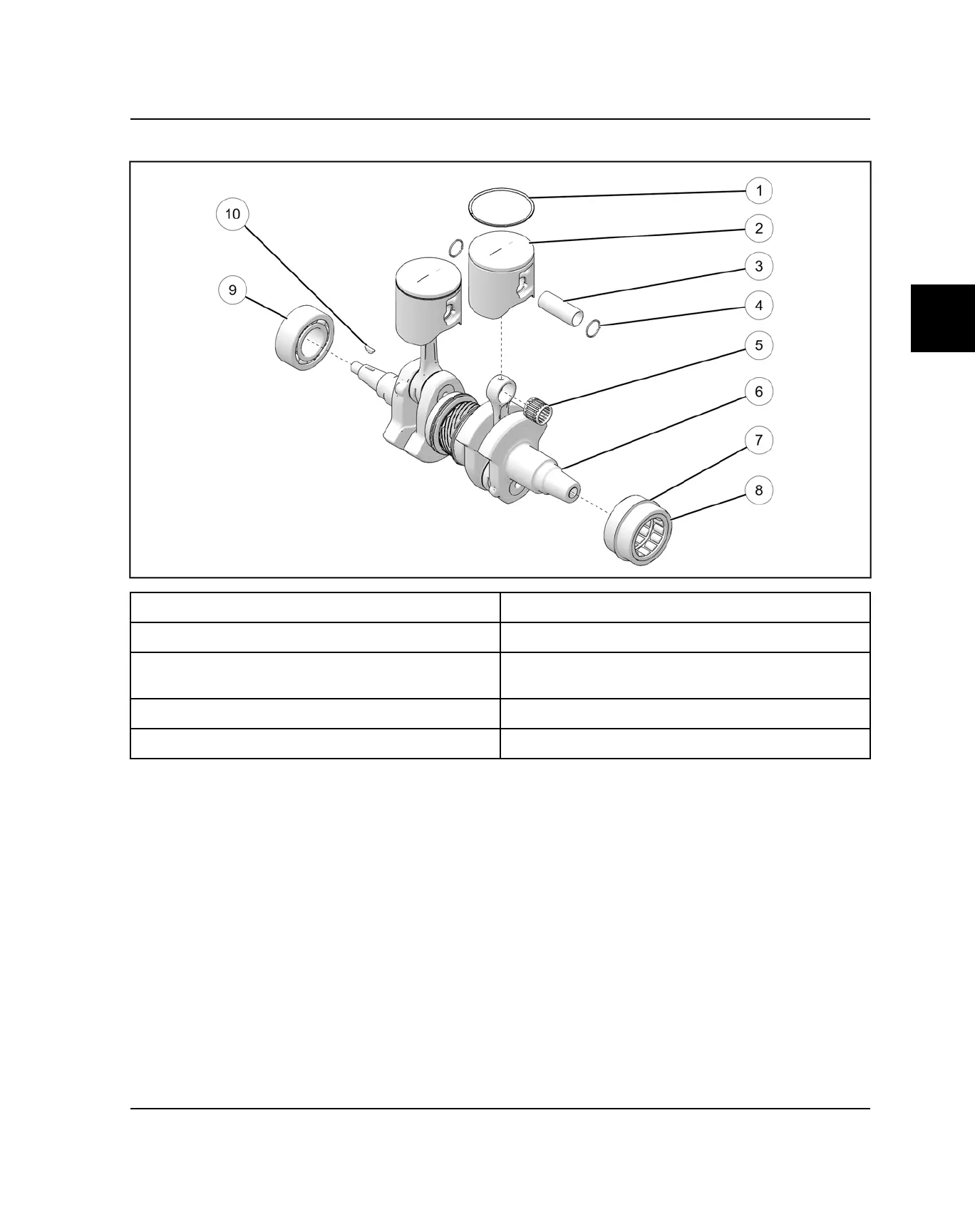

PISTON & CRANKSHAFT ASSEMBLY VIEW
q
Piston Ring
y
Crankshaft Assembly
w
Piston
u
Bearing (PTO) Snap Ring
e
Piston Pin
i
Bearing (PTO)
Bearing is slip fit
r
Piston Circlip
o
Bearing
t
Bearing (MAG)
a
Woodruff Key
