3.150
9850060
R02
-
2020-2021
850
AXYS™
Long
Track
Snowmobile
Service
Manual
©
Copyright
Polaris
Inc.

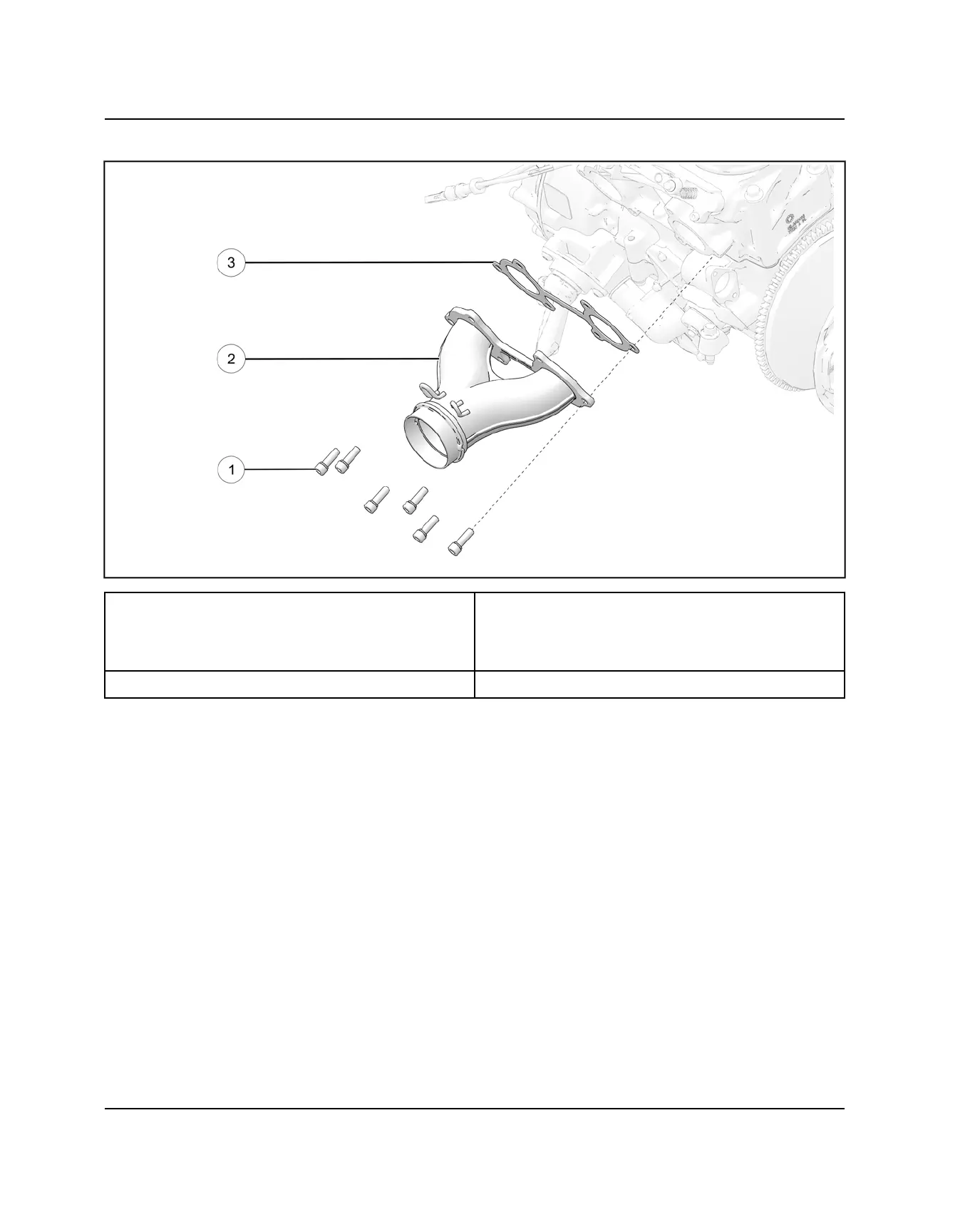

EXHAUST
MANIFOLD
ASSEMBL
Y
VIEW
q
Exhaust
Manifold
Fasteners
First
Pass:
1
1
ft-lbs
(15
N·m)
Second
Pass:
22
ft-lbs
(30
N·m)
e
Exhaust
Manifold
Gasket
w
Exhaust
Manifold
ENGINE
/
COOLING
/
EXHAUST
349
351
Table of Contents
Chapter 1 1 General Information
7
Table of Contents
7
Vehicle Identification
10
Model Number Designation (2017 +)
10
Vehicle Identification Number (Vin) Designation (2017 +)
10
Tunnel Decal
10
Vehicle Identification Number Locations
11
Engine Serial Number Location
12
Reference Information
13
Replacement Keys
13
Publication Part Numbers - 2020
13
Publication Part Numbers - 2021
14
Special Tools
15
2021 850 Pro-Rmk 155 Qd2 2.75 Track
34
2021 850 Rmk Khaos 155 Qd2 2.75 Track
42
Clutch Settings (Model Year 2020)
66
850 Pro-Rmk 155/163 & Rmk Khaos 155 Clutch Settings
66
850 Pro-Rmk 155/163/174 & Rmk Khaos 155 3.0 Track Clutch Settings
66
850 Sks 155 Clutch Settings
66
Clutch Settings (Model Year 2021)
67
850 Pro-Rmk / Rmk Khaos (155/163/165) Clutch Settings
67
850 Pro-Rmk / Rmk Khaos (155/163/174) 3.0 Track Clutch Settings
67
850 Sks 155 Clutch Settings
68
Misc Specifications and Charts
69
Master Torque Table
69
Conversion Table
74
Sae Tap / Drill Sizes
75
Metric Tap / Drill Sizes
75
Decimal Equivalents
76
Fuel Recommendations
77
Service Precautions
78
General Diagnostics
79
Diagnostic Trouble Codes (Dtcs)
79
Troubleshooting - Engine will Not Start
88
Performance Troubleshooting Guide
89
Digital Wrench Diagnostic Software Overview
91
Digital Wrench Special Tools
91
Digital Wrench Software Version / Update
92
Digital Wrench - Updating Software
92
Digital Wrench® Communication Errors
93
Digital Wrench® Feature Map
94
Digital Wrench - System Configurations
95
Digital Wrench - Diagnostic Trouble Codes (Dtcs) Display
96
Digital Wrench - Data List Display
97
Digital Wrench - Meters
97
Digital Wrench - Data Trigger (Freeze Frame)
98
Digital Wrench - Special Tests Menu
99
Digital Wrench - Vehicle Historical Information
99
Digital Wrench - Output State Control Testing
100
Digital Wrench - Service Report
101
Digital Wrench - Ecu / Injector / Oil Pump Replacement Menu
102
Digital Wrench - Ecu Replacement
102
Digital Wrench - Fuel Injector Replacement
106
Digital Wrench - Electronic Oil Pump Flow Offset
108
Digital Wrench - Service Procedures Menu
110
Fuel Injector Break-In Timer Reset
110
Oil Pump Enrichment Mode Timer Reset
112
Ev Actuator Learn Procedure
113
Gearing Change Reprogramming
116
Electronic Oil Pump Prime Procedure
117
Digital Wrench - Ecu Reprogramming (Reflash)
119
Digital Wrench - Vehicle Identification Information
122
Polaris Mobile Digital Wrench® (Pmdw)
125
Drive Belt
126
Drive Clutch
126
Driven Clutch
126
Belt Wear / Burn Diagnostics
127
Shock Analysis
128
Electrical Service Notes
129
Digital Multi-Meter (DMM) Notes
129
Static and Dynamic Testing
129
Connector Probing Guidelines
130
Testing Continuity / Resistance
131
Testing for a Short to Ground
131
Testing for a Short to Voltage
132
Testing for Intermittent Conditions
133
Testing Current Flow (Amperage)
133
Current Draw - Key off
134
Testing Voltage Drop
134
Maintenance Chapter 2 Maintenance 2
137
Axys Spare Belt Holder / Tools
140
Emission Control Information
140
Emission Control Label
140
Emission Control Maintenance Requirements
140
Maintenance
140
Maintenance Overview
140
Non-Ionizing Radiation
140
850 Break-In Periods
142
Drive Belt Break-In
142
Engine Break-In Period
142
Vehicle Break-In
142
Maintenance Program
143
Maintenance Program Overview
143
Pre-Ride Inspection
143
Pre-Season Maintenance
144
Periodic Maintenance Chart
146
Lubricants / Service Products
151
50/50 Extended-Life Engine Antifreeze
153
Axys Side Panels
154
Hood / Side Panel Service
154
Hood Removal / Installation
155
Engine Maintenance
156
Throttle Lever Freeplay Adjustment
156
Throttle Lever Freeplay Inspection
156
Spark Plug Maintenance
157
Spark Plug Wire / Cap Maintenance
157
Coolant Bottle Level Check
158
Cooling System Maintenance
158
Cooling System Overview
158
Cooling System Bleeding
159
Drive Belt / Clutch Maintenance
160
Drive Belt Removal - Axys
160
Drive Belt Installation - Axys
161
Belt Deflection Inspection / Adjustment
162
Clutch Alignment / Offset - Ps-52666
163
Clutch Alignment / Offset - Ps - 47477 Lwt Tool
164
Clutch Alignment / Offset - Ps - 51607
165
Axys Clutch Offset / Float Adjustment
166
Clutch Cleaning
167
Axys Fuel System Maintenance
168
Fuel / Air Intake / Exhaust Maintenance
168
Intake Filters
168
Exhaust System Inspection
169
Maintenance
169
Chaincase Oil Level Check
170
Drive Chain Tension Adjustment
170
Drive System Maintenance
170
Chaincase Oil Change - Cover Drain Method
171
Chaincase Oil Change - Pump Method
171
Quickdrive Low Inertia System
173
Brake System Inspection
174
Brake System Maintenance
174
Brake Fluid
175
Brake System Bleeding
175
Handlebar Component Fasteners
176
Steering / Suspension Maintenance
176
Handlebar Angle Adjustment
177
Front Suspension Inspection
178
Control Arm Pivot Adjustment
180
Ski Alignment / Toe Adjustment
180
Skag Replacement
182
Rear Suspension Inspection
183
Rail Slider Inspection
185
Track Inspection
185
Track Alignment
186
Track Tension Inspection
186
Track Tension Adjustment
187
Track Tension Specifications
188
Battery Maintenance
189
Dry Shipped Agm Battery Maintenance
189
Electrical System Maintenance
189
Lead Acid Low Maintenance Battery Maintenance
189
Battery Removal
190
Battery Installation
191
Battery Activation (Electric Start Models Only)
192
Battery off Season Storage
194
Battery Tender Port
194
Chassis Ground
194
Axys Led Lights
195
Headlight Adjustment
195
Auxiliary Engine Stop Switch
196
Throttle Release Switch (Trs)
196
Drive Belt Storage
197
Fogging the Engine
197
Off Season Storage
197
Treating the Fuel System
197
Battery/Electrical System Storage
198
Chaincase
198
Cleaning the Snowmobile
199
Lubricate the Pivots
199
Chapter 3 Engine / Cooling / Exhaust
201
General Information
204
Torque Specifications - Engine
204
Service Specifications
205
Important Engine Service Notes
206
Special Tools
207
Electronic Oil Pump
209
Electronic Oil Pump - Flow Offset Identification
209
Electronic Oil Pump Mounting
209
Oil Pump Line Connections
211
Oil Check Valve Fitting Hose Clamp Position
213
Oil Supply Hose Routing
214
External Oil Injector Check Valve Replacement
215
Oil Injector Check Valves
215
Cross Shaft Oil Gallery Outlet Check Valve
216
Cross Shaft Oil Gallery Outlet Check Valve Replacement
217
Cross Shaft Oil Gallery Outlet Check Valve Testing
217
Electronic Oil Pump - Resistance Check
223
Electronic Oil Pump Prime Procedure
223
Electronic Oil Pump Manual Prime Procedure
225
Digital Wrench - Electronic Oil Pump Flow Offset
226
Crankcase Weep Hole
228
Electronic Oil Pump - Trouble Codes / Protection Mode
228
Oil Tank
229
Oil Tank Assembly View
229
Oil Tank Removal
230
Oil Tank Installation
231
Engine Removal
232
Engine Service
232
Engine Installation
239
850 Engine
247
Engine Model Number Matrix - 2020
247
Engine Model Number Matrix - 2021
247
Engine Specifications
247
Component Torque Sequences
248
Component Orientation Views
252
Crankcase Sealant Path
253
Cylinder Assembly View
255
Crankcase Assembly View
256
Piston & Crankshaft Assembly View
257
Stator / Flywheel Assembly View
258
Engine Mount Assembly View
259
Water Pump Assembly View
260
Reed Valve Assembly View
262
Flywheel Removal / Inspection
263
Stator Removal / Inspection
264
Stator Installation
265
Flywheel Installation
266
Reed Valve Inspection
268
Reed Petal Replacement Inspection
269
Reed Petal Removal
270
Reed Petal Installation
271
Cylinder Head Removal
273
General Information - Top End
273
Cylinder Head Inspection
274
Cylinder Removal
275
Cylinder Inspection
276
Cylinder Honing
277
Piston Removal
278
Piston Inspection
279
Piston Markings
279
Piston Ring Installed Gap
280
Piston Ring Markings
280
Piston Needle Bearing
281
Crankcase Disassembly
282
General Information - Bottom End
282
Crankshaft Removal
283
Lower Crankcase Cross Shaft Gallery Inspection
284
Lower Connecting Rod Bearing Inspection
285
Main Bearing Inspection
285
Pto Bearing Inspection
286
Crankshaft Truing
287
Crankshaft Index
288
Crankshaft Runout Inspection
288
Water Pump Removal
289
Water Pump Installation
292
Crankshaft Installation
294
Crankcase Assembly
296
Piston Installation
297
Cylinder Installation
298
Cylinder Head Installation
299
Recoil Assembly View
300
Recoil Housing Disassembly
301
Recoil Housing Removal
301
Recoil Housing Assembly
302
Recoil Housing Installation
304
E-Ves-II Overview
305
E-Ves-II Assembly View
307
E-Ves-II Operation Notes
308
E-Ves-II Removal
312
E-Ves-II Disassembly
313
E-Ves-II Inspection
313
E-Ves-II Assembly
314
E-Ves-II Installation
315
E-Ves Diagnostic Trouble Codes (Dtcs)
316
Electronic Exhaust System (E-Ves-II) - Cable Travel Test
319
E-Ves-II - Using Digital Wrench Data Display
321
Ev Actuator Learn Procedure
322
Ev Actuator Mounting
325
Ev Actuator Smart Controller
326
Ev Actuator Wire Harness Connector
326
Cooling System
327
Cooling System Assembly (Pro-Rmk)
327
Cooling System Assembly (Sks)
328
Coolant Bottle Assembly View
329
Cooling Hose - Hot Side Routing / Retention
330
Cooling Hose - Cold Side Routing / Retention (Pro-Rmk)
332
Cooling Hose - Cold Side Routing / Retention (Sks)
334
Coolant Bottle / Thermostat Removal
337
Coolant Bottle / Thermostat Installation
338
Coolant Bottle Overflow Line Routing
340
Thermostat Location
341
Thermostat Testing
341
Air Intake
342
Air Intake Assembly View
342
Air Intake Plenum Removal
343
Air Intake Plenum Installation
344
Air Intake Tube Removal
345
Air Intake Tube Installation
346
Air Box Removal
347
Air Box Installation
348
Exhaust
349
Exhaust Assembly View
349
Exhaust Manifold Assembly View
350
Exhaust Removal
351
Exhaust Manifold Installation
353
Exhaust Manifold Removal
353
Exhaust Installation
354
Chapter 4 Engine Electrical
357
Diagnostic Power Connector
358
General Information
358
Engine Overheating Troubleshooting
359
Engine Protection Features
359
Engine Temperature Protection Modes
359
Detonation (Det) Protection Modes
360
Detonation (Det) Troubleshooting
361
Extended Idle Engine Shutdown Mode
361
Cleanfire Fuel Injection (Cfi) System
362
Cleanfire Fuel Injection Overview
362
Exhaust Gas Temperature (Egt) Sensor
363
Air Temperature / Pressure Sensor (T-Map)
364
Crankshaft Position Sensors (Cps)
364
Crankshaft Position Sensor Air Gaps
365
Engine Coolant Temperature (Ect) Sensor
366
Ignition Coil Packs
366
Fuel Pressure Sensor
367
Knock (Det) Sensor
367
Ecu (Cna) 34 Pin Connector Pinout
368
Electronic Control Unit (Ecu)
368
Ecu (Cnb) 34 Pin Connector Pinout
369
Ecu Label Information
370
Ecu Location / Mounting
370
Throttle Position Sensor (Tps) Testing
372
Tps Wire Routing
373
Perc Forward Operation
374
Perc Operation
374
Perc Overview
374
Perc Troubleshooting Notes
374
Polaris Electronic Reverse Control (Perc)
374
Chapter 5 Fuel System
375
General Information
376
Service Warnings
376
Fuel Pump Prime Procedure
377
Fuel Type Selection - Interactive Digital Display (IDD) Gauge
378
Fuel Type Selection - Standard Gauge
378
Fuel Injectors / Fuel Rail / Throttle Body
380
Fuel Rail / Throttle Body Assembly View
380
Fuel Hose Quick Disconnect Fittings
381
Throttle Body Removal
381
Throttle Body Installation
385
Fuel Injectors
389
Fuel Rail / Fuel Injector Service
389
Fuel Injector Service
393
Fuel Tank / Fuel Pump Service
394
Fuel Tank Assembly View - Rmk
394
Fuel Tank Removal - Rmk
395
Fuel Tank Installation - Rmk
397
Fuel Pump Specifications
399
Fuel Pump Removal / Service
400
Fuel Pump Installation
401
Fuel Pump Harness Routing
404
Fuel Line
405
Fuel Line Routing
405
Chapter 6 Final Drive / Brake Systems
409
Drive Chains
411
Drive Gears
411
General Information
411
Chaincase Sprocket Ratio Speed Chart - Axys (7.764 CD)
412
Gearing Stock Settings - 2020
413
Gearing Stock Settings - 2021
414
Gearing Change Reprogramming
415
Chaincase Assembly View
417
Chaincase Service
417
Chaincase Oil Level Check
418
Drive Chain Tension Adjustment
418
Chaincase Oil Change - Cover Drain Method
419
Chaincase Oil Change - Pump Method
419
Chaincase Cover Gasket Orientation
420
Chaincase Cover Torque Pattern
421
Chaincase Disassembly
421
Right Fender Chaincase Access Screws
421
Chaincase Assembly
424
Chaincase Cover Service
424
Chaincase Housing Removal
426
Chaincase Housing Installation
429
Chaincase Vent Line Routing
430
Quickdrive Assembly View
431
Quickdrive Low Inertia Drive System
431
Quickdrive Drive Belt / Sprocket Removal
432
Quickdrive Drive Belt / Sprocket Installation
433
Quickdrive Backer Plate Assembly View
435
Quickdrive Backer Plate Removal
436
Quickdrive Backer Plate Installation
437
Driveshaft Assembly View
438
Driveshaft Service
438
Driveshaft Removal
439
Driveshaft Installation
440
Jackshaft Assembly View
441
Jackshaft Service
441
Jackshaft Installation
442
Jackshaft Removal
442
Brake System
443
Brake System General Notes
443
Brake System Inspection
443
Brake System Bleeding
444
Chapter 7 Pvt System
453
Clutch Weight
455
Drive Spring
455
Engagement Rpm
455
General Information
455
Neutral Speed
455
Shift out Over-Rev
455
Special Tools - Pvt System
455
1:1 Shift Ratio
456
Back-Shifting
456
Driven Helix / Ramp
456
Driven Spring
456
Final Gearing
456
Low / High Ratio
456
Shift out Rpm
456
Series 10 Drive Clutch Weights
458
Spring Free Length
458
Perc Team Lwt Driven Helixes
459
Team Ramp Angles
459
Team Driven Springs
460
Drive Belt
461
Drive Belt Specifications
461
Drive Belt Removal - Axys
462
Drive Belt Installation - Axys
463
Drive Clutch
464
Drive Clutch Identification
464
Drive Clutch Assembly View
465
Drive Clutch Disassembly
466
Drive Clutch Removal
466
Roller Removal
468
Roller Installation
469
Spider Button Installation
469
Bushing / Insert Replacement
470
Moveable Sheave Bushing/Insert Removal and Installation
470
Cover Bushing
471
Drive Clutch Assembly
472
Drive Clutch Installation
474
Spider Indexing
475
Driven Clutch
477
Driven Clutch Assembly View - Team Lwt
477
Driven Clutch Disassembly
478
Driven Clutch Removal
478
Driven Clutch Assembly
479
Driven Clutch Installation
480
Belt Deflection Inspection / Adjustment
481
Pvt System Adjustments
481
Clutch Alignment / Offset - Ps-52666
482
Clutch Alignment / Offset - Ps - 47477 Lwt Tool
483
Clutch Alignment / Offset - Ps - 51607
484
Axys Clutch Offset / Float Adjustment
485
Clutch Cleaning
486
Chapter 8 Steering / Suspensions
487
General Information
489
Rod End Alignment
489
Steering / Suspension General Inspections
489
Rod End Engagement
490
Toe Specifications
490
Front Control Arm Assembly View - Axys React
491
Steering / Front Suspension Assembly Views
491
Upper Steering Post Assmbly - Axys React
492
Lower Steering Assembly - Axys React
493
Front Sway Bar Assembly - Axys React
494
Steering / Front Suspension Service
495
Steering Post Removal
495
Steering Post Installation
497
Spindle Removal
500
Spindle Installation
501
Lower Control Arm Service
502
Upper Control Arm Service
502
Control Arm Pivot Service
504
Spherical Bearing Replacement
504
Rear Susupension Assembly Views
505
Rmk Rear Suspension Pivot / Brace Shaft Assembly View
505
Rmk Rail Assembly View
506
Rmk Rail Beam Detail
507
Rmk Khaos Rail Assembly View
508
Rmk Khaos Rail Beam Detail
509
Rmk Front Torque Arm Assembly View
510
Rmk 174" Rear Suspension Pivot / Brace Shaft Assembly View
511
Rmk 174" Rail Assembly View
512
Rmk 174" Rail Beam Detail
513
Rmk 174" Front Torque Arm Assembly View
514
Rmk Rear Torque Arm Assembly View
515
Sks Rear Suspension Pivot / Brace Shaft Assembly View
516
Sks Rail Assembly View
517
Sks Rail Beam Detail
518
Sks Front Torque Arm Assembly View
519
Bogie Wheel Service
520
Rear Suspension Service
520
Front Track Shock (Fts) Service
522
Rear Track Shock (Rts) Service
523
Rear Suspension Removal
524
Rear Suspension Installation
525
General Setup / Adjustments - All Models
526
Handlebar Component Fasteners
526
Handlebar Angle Adjustment
527
Two Piece Throttle Control Removal
527
Two Piece Throttle Control Installation
528
Ski Alignment / Toe Adjustment
529
Control Arm Pivot Adjustment
530
Ski Assembly Service
531
Skag Replacement
532
Rail Slider Inspection
533
Track Inspection
533
Track Alignment
534
Track Tension Inspection
534
Track Tension Adjustment
535
Track Tension Specifications
536
Limiter Strap Adjustment
537
General Setup / Adjustments - 155" or Longer
538
Rmk Suspension Adjustment Introduction
538
Pro-Rmk and Sks Shock Locations
539
Front Suspension (Ifs) Factory Clicker Settings
540
Front Suspension (Ifs) Factory Spring Settings
540
Front Track Shock (Fts) Factory Clicker Settings
541
Front Track Shock (Fts) Factory Spring Settings
541
Rear Track Shock (Rts) Factory Spring Settings
542
Rear Track Shock (Rts) Factory Clicker Settings
543
Shock Rebuilding Tools
544
Shocks
544
2020 Shock Specifications
546
2021 Shock Specifications
552
General Information
558
Shock Maintenance Overview
558
Walker Evans Shock Valve Part Numbers - 3/8" I
559
Walker Evans Shock Valve Part Numbers - 7/16" I
560
Walker Evans Piston Valve Arrangement
562
Walker Evans Piston Valve Orientation
562
Walker Evans Piggyback Shock Ifp Depth
563
Walker Evans Piggy Back (Low Speed Adj.)
564
Walker Evans Piggyback Shock Assembly View
564
Walker Evans Piggyback Shock - Disassembly
566
Walker Evans Piggyback Shock - Assembly
570
Walker Evans Piggy Back (High/Low Speed Adj.)
576
Walker Evans Piggyback Shock Disassembly
576
Walker Evans Piggyback Shock Assembly
580
Chapter 9 Chassis
589
General Cautions and Notes
590
General Information
590
Chassis Assembly Views
591
Right Bulkhead / Chaincase Assembly View
591
Left Bulkhead / Side Support Assembly View
592
Clutch Guard / Foot Supports Assembly View
593
Over Structure Assembly View
594
Recoil Roller Assembly View
595
Tunnel Assembly View
596
Body Assembly Views
597
Hood Assembly View
597
Hood Foam Assembly View
598
Nosepan / Fender Assembly View
599
Side Panel Assembly View
600
Console Assembly View
601
Seat Assembly View
603
Bumper Assemby Views
604
Stock Bumper
604
Monarch Bumper
605
Rear Bumper / Closeoff Assembly View
606
Bonded Component Overview
607
Bonded Component Service
607
Lord 406 Acrylic Adhesive Information
607
Bonded Component Service
608
Bonded Component Surface Preparation
608
Adhesive Application Patterns
611
Bulkhead Floor Plate Installation
619
Bulkhead Floor Plate Removal
619
Front Tunnel Bulkhead Cooler Installation
620
Front Tunnel Bulkhead Cooler Removal
620
Bulkhead Clip Removal, Left
621
Support Brace Installation, Right
621
Support Brace Removal, Right
621
Bulkhead Clip Installation, Left
622
Bulkhead Clip Removal, Right
623
Bulkhead Clip Installation, Right
624
Chapter 10 Battery / Electrical
625
Charging / Lighting System
629
Electrical System General Cautions
629
General Information
629
Ignition Timing
629
Spark Plugs
629
Diagnostic Power Connector
630
Chassis Harness Connectors
631
Electrical Harness
631
Chassis Harness Routing / Retention
632
Handlebar Connectors
634
Handlebar Harness Locations
635
Handlebar Harness Retention
636
Rear Harness Routing / Retention
637
Egt Sensor Routing
639
Speed Sensor Harness Routing (Chaincase)
641
Speed Sensor Harness Routing (Quick Drive)
642
Knock (Det) Sensor Harness Routing
643
Engine Coolant Temperature (Ect) Sensor Harness Routing
644
Ignition Coil Harness Routing
645
Fuel Injector Harness Routing
647
Oil Pump Jumper Harness Routing
649
Load Center
650
Load Center Details - 2020 to Current
650
Relay / Fuse Details
652
Load Center Location
653
Battery
654
Battery Removal
654
Specifications
654
Battery Installation
655
Battery Identification
656
Battery Activation (Electric Start Models Only)
657
Dry Shipped Agm Battery Charging and Testing
660
Dry Shipped Agm Battery Maintenance
660
Agm Battery Charging - Deeply Discharged (below 3 Volts)
661
Agm Battery Charging - Low Charge
661
Agm Low Maintenance Battery Charging
661
Agm Low Maintenance Battery Maintenance
662
Agm Low Maintenance Battery Testing
662
Battery Conductance Analyzer
662
Battery / Electrical
663
Battery Load Test
663
Battery Open Circuit Voltage Test (Ocv)
663
Battery Specific Gravity Test
663
Battery off Season Storage
664
Battery Tender Port
664
Cold Engine Protection Mode
665
Digital Instrument Cluster / Security
665
Overview
666
Information Display Area
667
Odometer/Engine Hour Display Area
667
Rider Information Center
667
Speed Display Area
667
Indicator Lamps
668
Changing Units
669
Mode / Set Switch
669
Diagnostic Display Mode
670
Playback Function
670
Fuel Selector Mode
671
IDD User's Guide / Owner's Manual
672
Interactive Digital Display (Pidd) Connector Pinouts
672
IDD Usb Flash Drive Cable
673
Interactive Digital Display (Pidd) Hood Bracket
673
IDD - Usb Flash Drive Recommendations
674
Pidd User Notes / Troubleshooting
674
Pidd - Using a Service Battery
675
Interactive Digital Display (Pidd) Frozen Display Screen Recovery Methods
676
Interactive Digital Display (Pidd) Reset and Update Procedure
678
Gps Receiver Troubleshooting
679
Security System - Enable
681
Security System: Disable Procedure
683
Security System: Pass Code Reset
683
Security System - Axys User Notes
684
First Time Use of Your Security System
685
Security System (Ignition Lock System)
685
Locking the System with Your Personal Security Code
688
Unlocking the System with Your Personal Security Code
689
Changing to a New Security Code
690
Security System Access Quick Reference
690
IDD Security: Locking
691
IDD Security: Changing Pass Code
692
IDD Security: Unlocking
692
Led Headlight / Tail Light
694
Led Headlight Overview
694
Led Headlight Service
694
Led Headlight / Tail Light Troubleshooting
695
Led Tail Light Overview / Service
695
Pbr Location
696
Pbr Overview
696
Power Boosting Regulator (Pbr)
696
Pbr Details
697
Pbr Circuit
698
Pbr Testing
698
Pbr Diagnostic Trouble Code List
699
Pbr Update / Replacement
701
Stator
702
Stator Circuit / Architecture
702
Stator Testing
703
Stator Harness Routing
704
Ferrite Suppressor
705
Controllers / Converters
706
Ev Actuator Smart Controller
706
Electronic Oil Pump - Resistance Check
707
Auxiliary Stop Switch
708
Ignition Switch
708
Oil Level Sender
708
Switches
708
Brake Switch
709
Tether Switch
709
Throttle Release Switch
709
Battery Power Fuse
710
Circuit Breaker
710
Fuses / Diodes / Resistors
710
Battery Charge Relay
711
Ev Learn Relay
711
Relay Overview
711
Relays
711
Starter Solenoid
712
Capacitors
713
Ground Speed Sensor Capacitor Overview
713
Measuring Capacitance
713
Electric Start / Battery Bracket
714
Starter Motor / Flex Drive Assembly View
714
Starter Motor / Flex Drive Service
715
Battery Bracket Assembly
717
Electric Start Harness Routing
718
Battery Harness Routing
719
Additional Circuit Diagrams
723
Circuit Diagram Viewing
723
Circuit Diagrams
723
Ignition Control System Overview
723
Next-Gen Service Power Harness Circuit Diagram
724
Battery / Electrical
725
Hand / Thumb Warmers
725
Thumb Warmer Diagnostics
725
Thumb Warmer Resistance Checks
725
Full Length Hand Warmer Resistance Checks
726
Full Length Hand Warmers
726
Hand Warmer Diagnostics
726
12V Accessory Rca Adapter
727
Accessory Power Connectors
727
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Polaris 850 PRO-RMK 155 2020 and is the answer not in the manual?
Ask a question
Polaris 850 PRO-RMK 155 2020 Specifications
General
Brand
Polaris
Model
850 PRO-RMK 155 2020
Category
Snowmobiles
Language
English
Related product manuals
Polaris 850 RMK Khaos 155 2020
747 pages
Polaris 850 SKS 155 2020
747 pages
850 PRO-RMK 163 3.0" QD 2021
747 pages
850 MATRYX INDY XC 129 2021
727 pages
850 MATRYX SWITCHBACK ASSAULT 146 2021
727 pages
Polaris 800 PRO RMK
142 pages
Polaris 2015 800 PRO RMK
140 pages
Polaris 800 RMK ASSAULT 2011
512 pages
Polaris 600 RMK
142 pages
Polaris 2015 600 RMK
140 pages
Polaris 600 INDY 2013
131 pages
650 MATRYX INDY XC 137 2021
727 pages
Need help?
General
To Next Page
