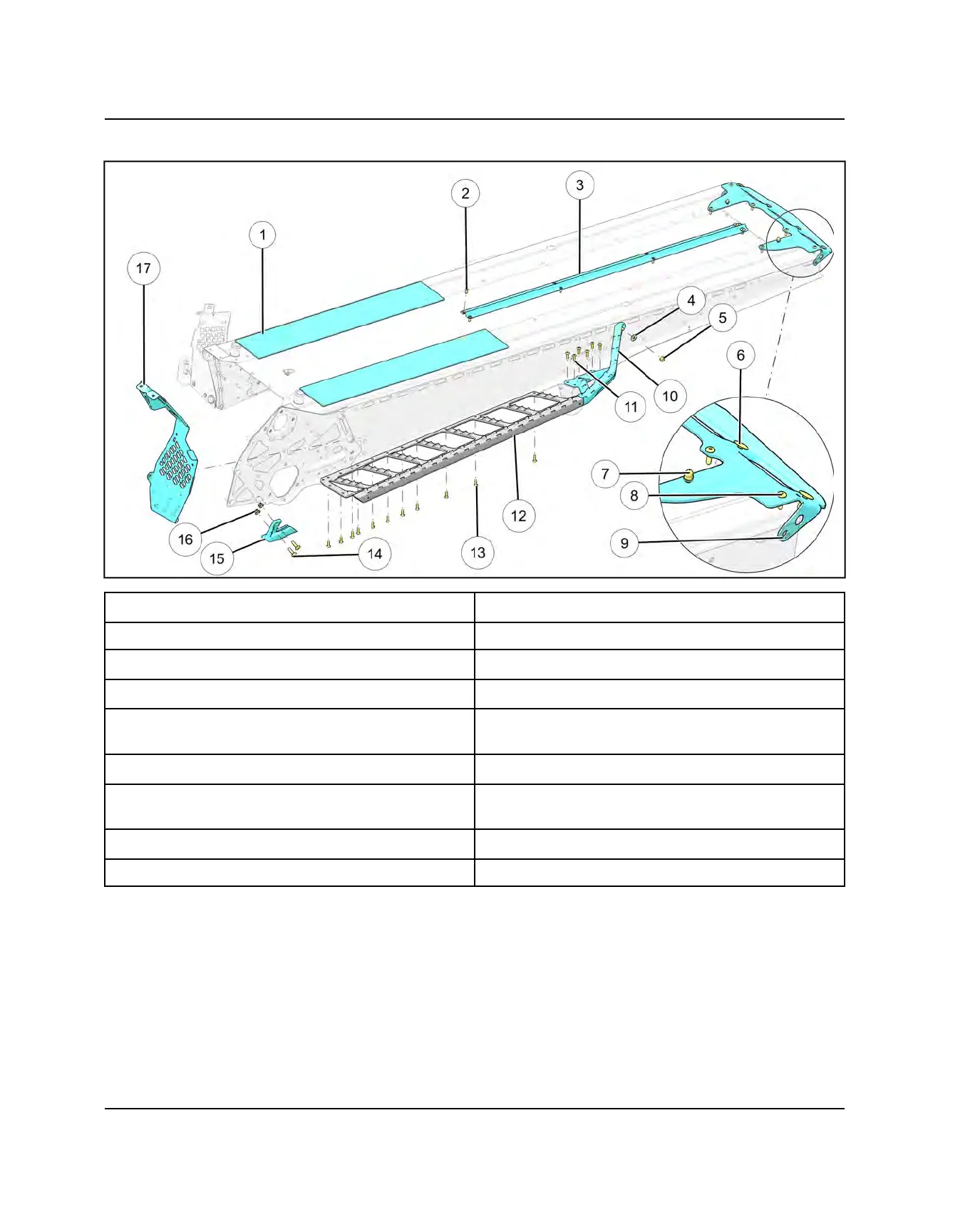

TUNNEL ASSEMBLY VIEW
q
Fuel Tank / Tunnel Foam Pads a
Rear Running Board Support
w
Rivet
s
Rivet
e
Taillight Harness Cover
d
Running Board
r
Washer (6.4 x 18.0 x 1.6)
f
Rivet
t
Nut (M6 x 1.0)
9 ft-lbs (12 Nm)
g
Fastener (M6 x 1.0 x 22)
9 ft-lbs (12 Nm)
y
Pop-Rivet
h
Front Running Board Support
u
Acorn Nut (M5)
16 in-lbs (1.8 Nm)
j
Nut (M6 x 1.0)
9 ft-lbs (12 Nm)
i
Rivet
k
Toe Stop
o
Closeoff
