DRIVEN CLUTCH INSTALLATION
1. Verify the same number of offset washers / bushings
are installed on the jackshaft that were present when
the clutch was removed.
2. Apply a light film of Polaris Premium Grease to the
jackshaft splines and shaft.
3. Install the driven clutch.

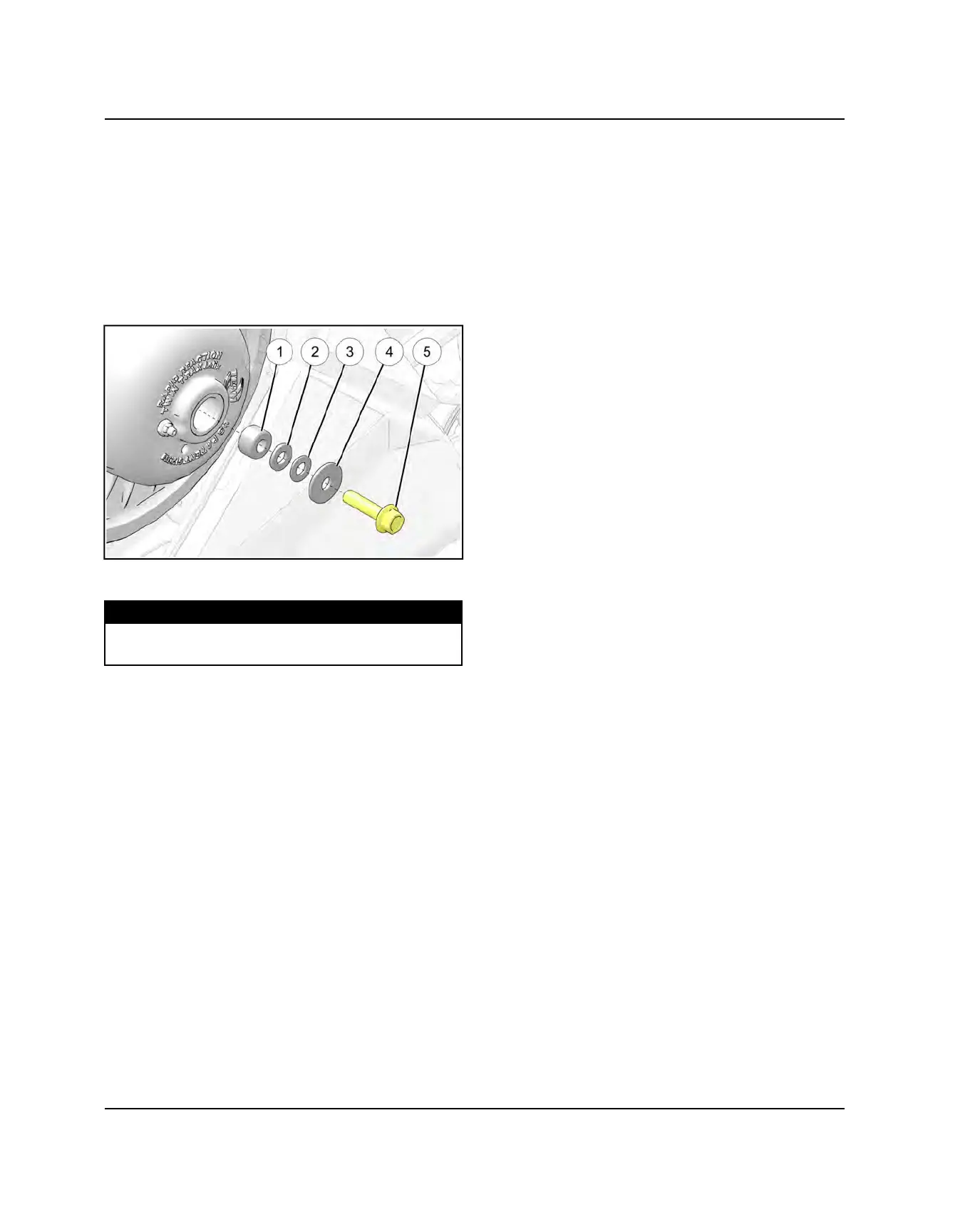

4. Install spacer
q
, float washers
w
and
e
, flat washer
r
, and driven clutch bolt
t
.
5. Torque bolt to specification.
TORQUE
Driven Clutch Bolt:
18 ft-lbs (25 Nm)
