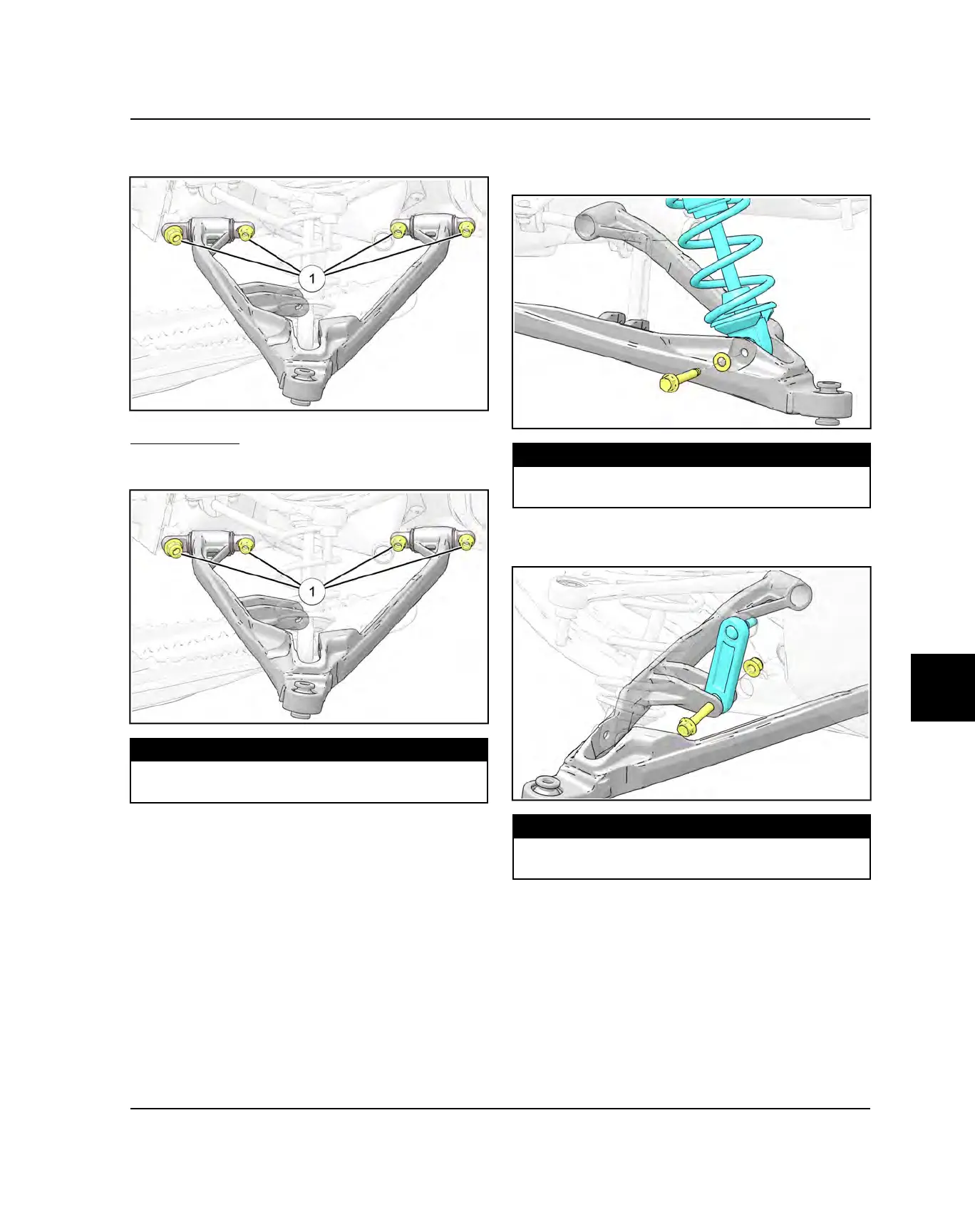

5. Remove the four nuts
q
securing the lower control
arm and remove the lower control arm.
INSTALLATION
1. Install the control arm using four new nuts
q
. Torque
to specification.
TORQUE
Control Arm Pivot Nuts:
40 ft-lbs (54 Nm)
2. Install the shock into the lower control arm and
secure using a new fastener and washer. Torque to
specification.
TORQUE
Lower Shock Fastener:
18 ft-lbs (25 Nm)
3. Install the sway bar link in the control arm and secure
using fastener and new nut. Torque to specification.
TORQUE
Sway Bar Link Nut
18 ft-lbs (25 Nm)
4. Reinstall the ski. Refer to Ski Assembly Service page
8.45.
5. Reinstall the spindle. Refer to Spindle Removal page
8.14.
