6.5
CLUTCHING
6
PVT SYSTEM SERVICE

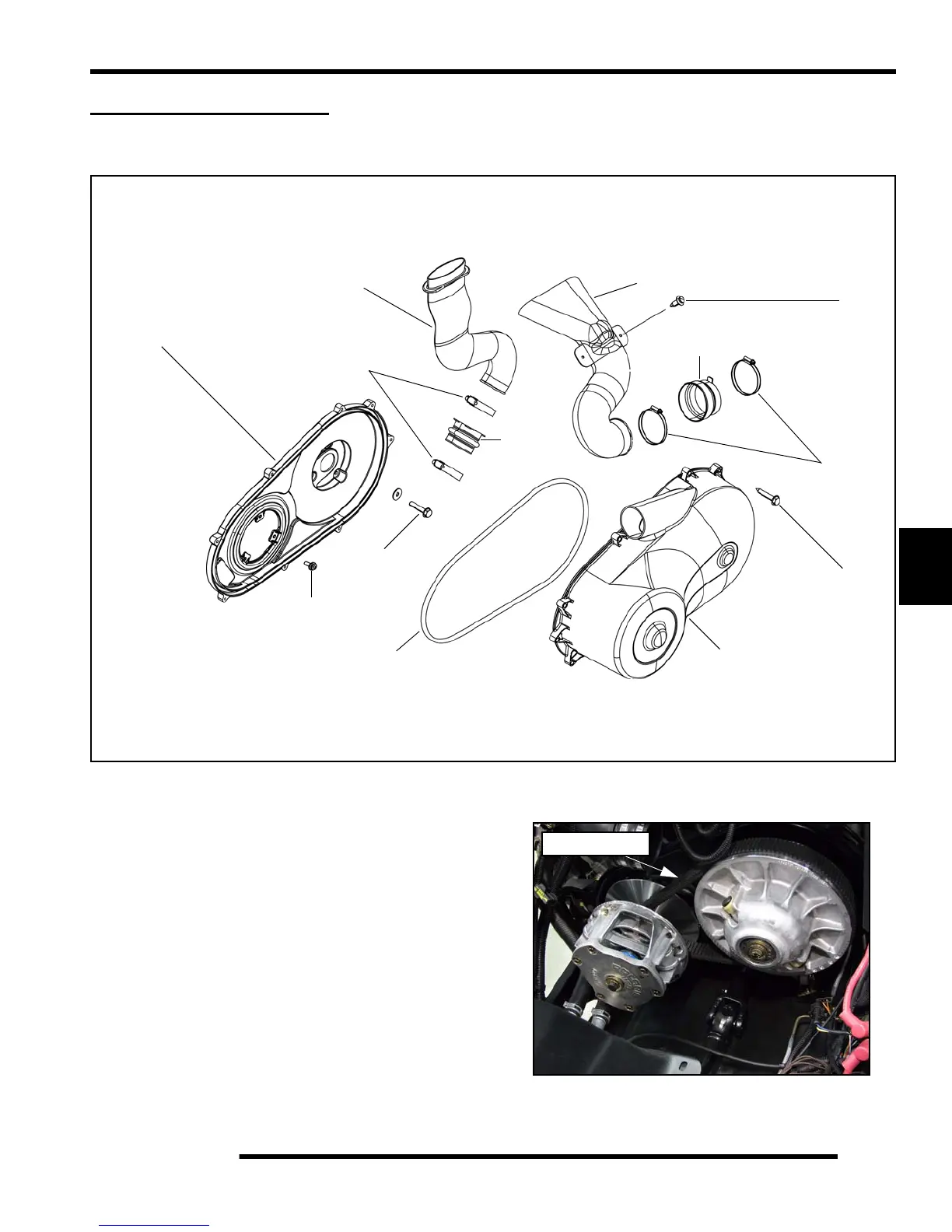

PVT Sealing and Ducting Components
Disassembly
Some fasteners and procedures will vary. Refer to the
appropriate parts manual for proper fasteners and fastener
placement.
1. Remove driver and passenger seats (see Chapter 5).
2. Remove the rear service panel to gain access to the outer
clutch cover (see Chapter 5).
3. Remove the (2) push rivets and (2) fasteners retaining the
rear seat base, and remove the seat base from vehicle to
allow clutch cover removal.
4. Loosen the hose clamp on the clutch outlet duct.
5. Remove outer clutch cover screws and remove the clutch
cover.
6. Mark the drive belt direction of rotation and remove drive
belt (see “DRIVE BELT - Belt Removal”).
7. Remove the driven clutch retaining bolt and driven clutch.
Inner
Clutch
Clamps
Outer
Cover
Outer
Push
Rivets
Outlet Duct
Clutch
Inlet Duct
Screws
Clutch Cover
Clutch Cover
Retainer
Screws
Bolt/Washer
Cover Seal
Boot
Boot
Clamps
Mark Rotation
