Polaris rzr 800 2008 User Manual

7.34
FINAL DRIVE

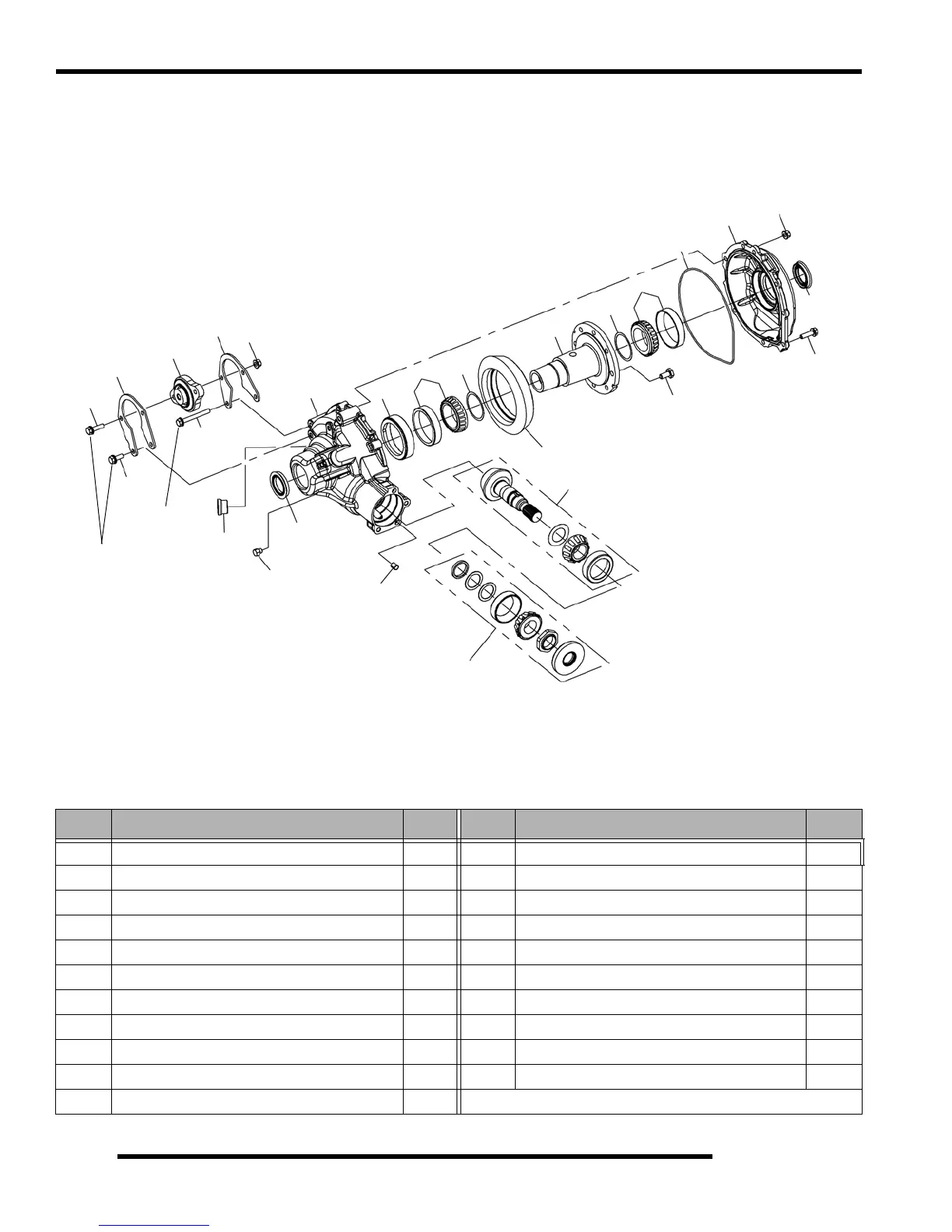

Gearcase Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Screw 2 12 Axle, Spool 1
2 Screw 2 13 O-Ring 1
3 Bracket, Rear Mount, RH 1 14 Housing, Rear, LH 1
4 Bracket, Rear Mount, LH 1 15 Screw, Flange Head 2
5 Mount, Rear 1 16 Seal, Oil 2
6 Nut, Flanged 4 17 Screw, Flange Head 4
7 Assembly, Rear Housing, RH 1 18 Screw 8
8 Bearing Retainer Ring 1 19 Dowel 2
9 Assembly, Tapered Roller Bearing 2 20 Plug, Drain w/O-Ring 1
10 Shim 2 21 Plug, Fill w/O-Ring 1
11 Assembly, Gear and Pinion 1
1
2
3
4
5
6
7
8
9
10
7
13
14
15
16
17
18
19
20
12
21
30-45 in. lbs.
(3-5 Nm)
40 ft. lbs.
(54 Nm)
23-27 ft. lbs.
(31-37 Nm)
10
9
6
16
7
7
70-80 ft. lbs.
(95-108 Nm)
23-27 ft. lbs.
(31-37 Nm)
23-27 ft. lbs.
(31-37 Nm)
