10.20
ELECTRICAL

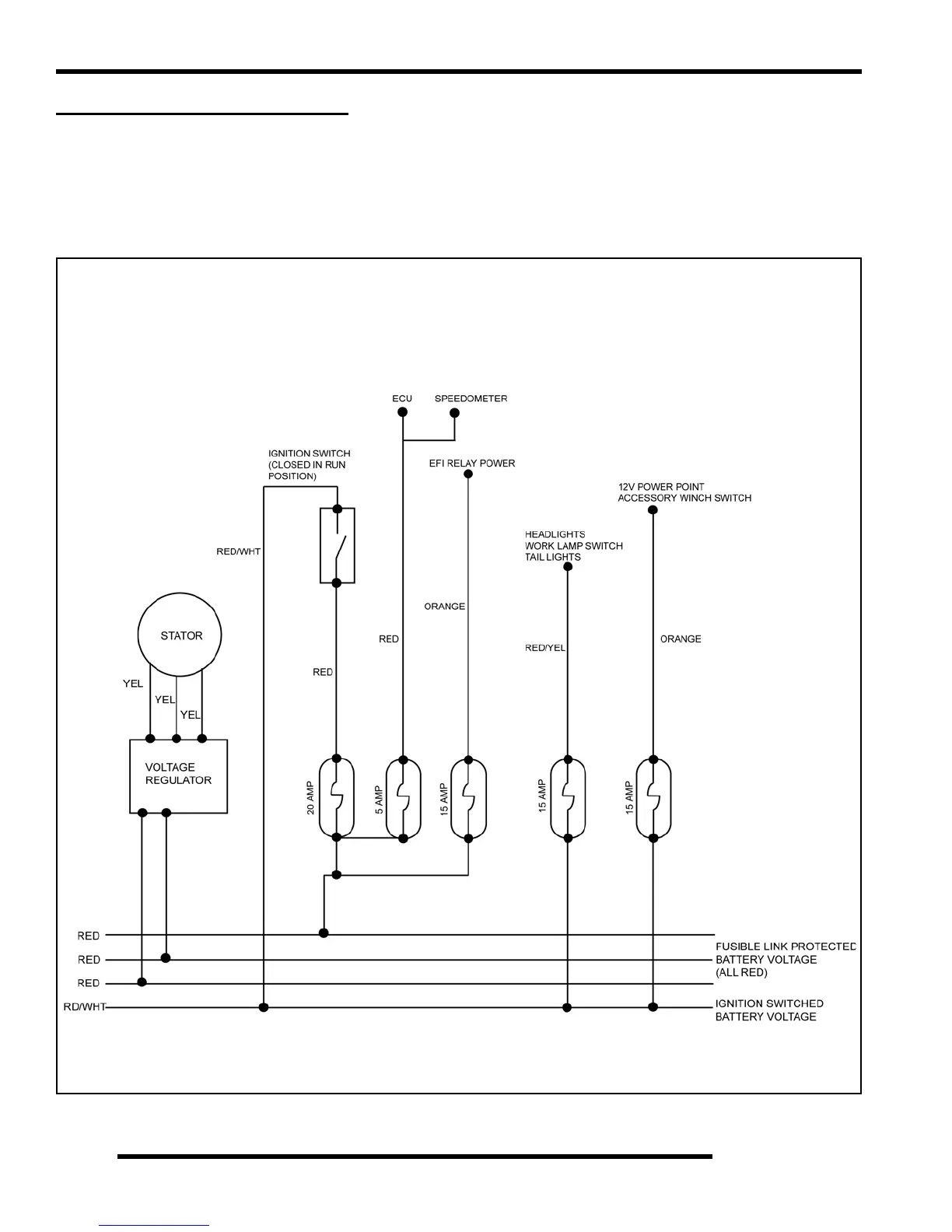

FUSES / CIRCUIT BREAKER
Operation
Located in the fuse box under the dash, the fuse panel provides current protection for components such as the Instrument Cluster,
ECU, EFI system, Chassis Power and Accessories.
A separate 20-amp circuit breaker protects the fan motor circuit (see wire diagram for details).
