Headlamp Housing Removal
1. Disconnect the headlamp from the wiring harness. Be sure
to pull on the connector, not on the wiring.

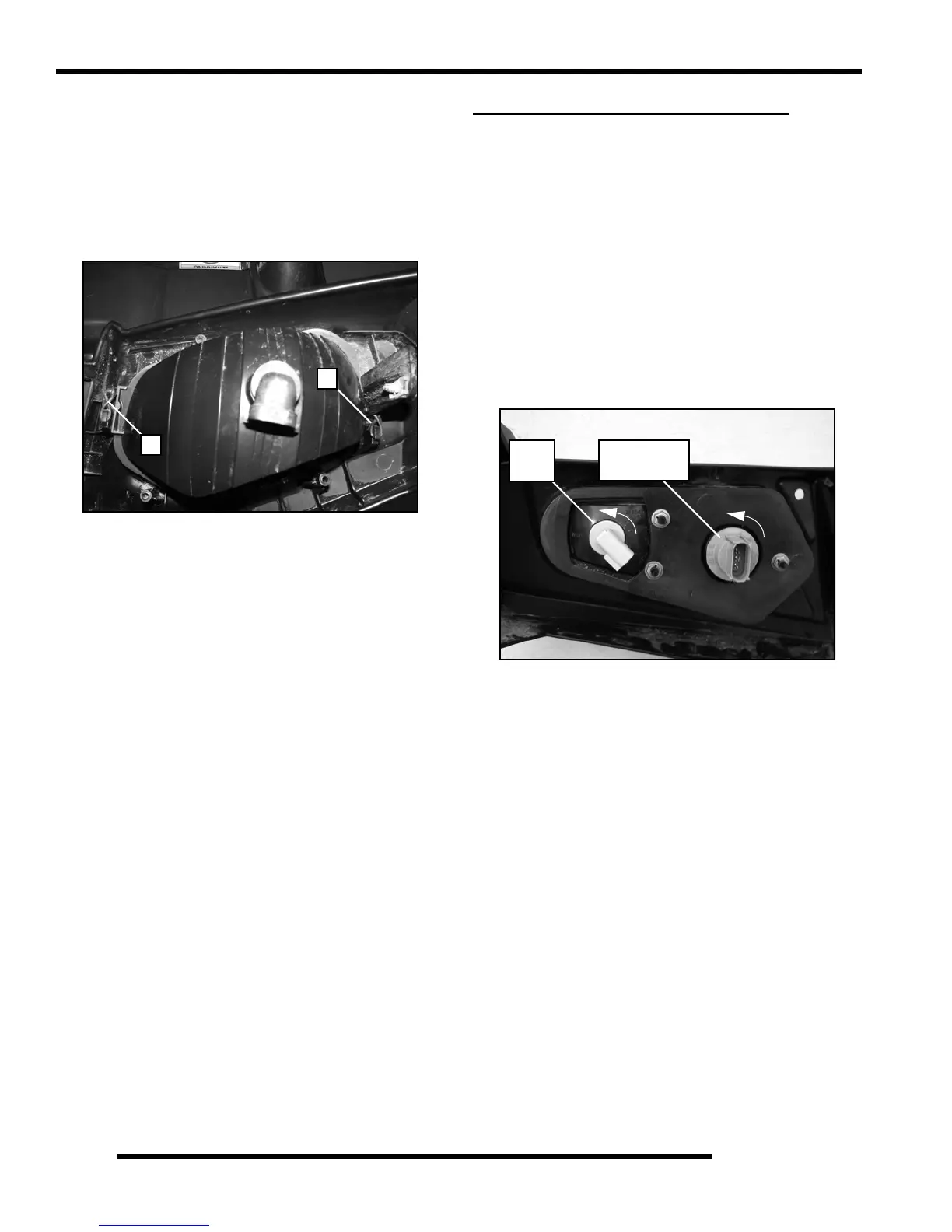

2. Remove the O-rings (A) from the headlamp brackets on
both sides of the headlamp.
3. Remove the headlamp from the front bumper.
Headlamp Housing Installation
1. To install the headlamp housing back into the front
bumper.
2. Secure the headlamp housing with the rubber O-rings (A)
on both sides of the headlamp.
3. Reconnect wire harness or re-insert bulb if previously
removed.
4. Adjust headlights using the “Headlight Adjustment”
procedure in this section.
TAIL / BRAKE / WORK LIGHTS
Bulb Replacement
Before replacing the bulb, use a digital multi-meter to test the
harness to ensure the lamp is receiving 12 volts and that a ground
path is present.
If a tail light, brake light, or work light does not work the bulb
may need to be replaced.
1. Remove bulb by turning the rubber base 1/4 turn and
pulling the bulb out. Replace it with recommended bulb.
Apply Dielectric Grease (PN 2871329).
2. Test the tail light, brake light, and work light to verify it is
working properly.
A
A
Work
Tail / Brake
Light
Light
