7.23
FINAL DRIVE
7

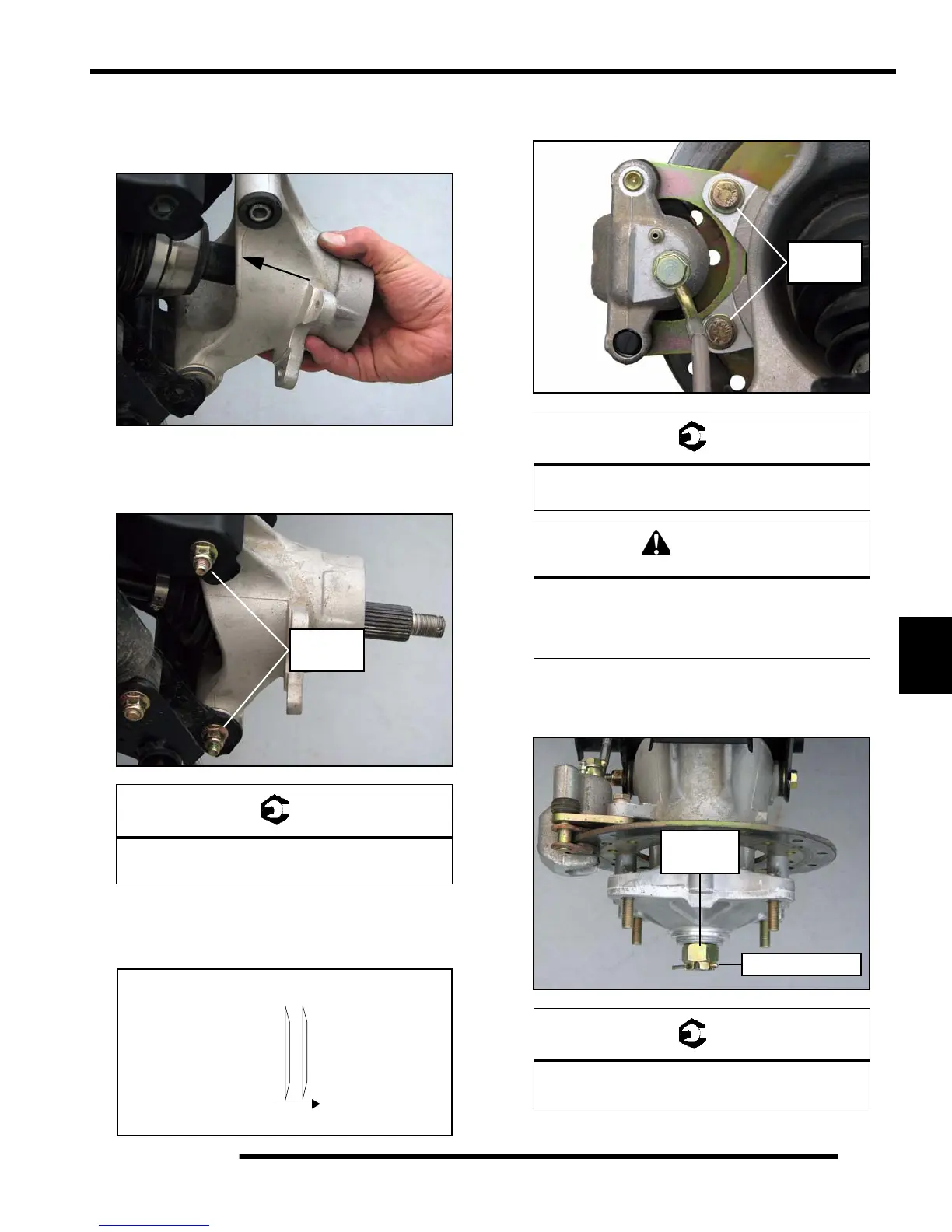

Bearing Carrier Installation
1. Install drive shaft axle through the backside of the bearing
carrier. Be sure bushings and pivot tubes are installed.
2. Install the fasteners that attach the rear bearing carrier to the
upper and lower A-arms. Torque bolts to 37 ft. lbs.
(50 Nm).
3. Apply grease to drive shaft axle splines.
4. Install rear wheel hub assembly, cone washers, and hand
tighten the castle nut. Install washers with domed side out.
5. Install brake caliper mounting bolts and torque to 18 ft. lbs.
(24 Nm).
6. Torque wheel hub nut to 80 ft. lbs. (108 Nm) and install a
NEW cotter pin. Tighten nut slightly if necessary to align
cotter pin holes.
= T
Rear Bearing Carrier Bolt Torque:
37 ft. lbs. (50 Nm)
37 ft. lbs.
50 (Nm)
Out
Cone Washers
Wheel
Hub
= T
Rear Caliper Mounting Bolt Torque:
18 ft. lbs. (24 Nm)
CAUTION
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
= T
Wheel Hub Castle Nut Torque:
80 ft. lbs. (108 Nm)
18 ft. lbs.
24 (Nm)
80 ft. lbs.
(108 Nm)
NEW Cotter Pin
To Next Page
