6. Once the proper adjustment is obtained, place the shift
cable and upper jam nut into the mount. Tighten the lower
jam nut against the mount.
7. Start engine and shift through all gears to ensure the shift
cable is properly adjusted. If transmission still ratchets
after cable adjustment, the transmission will require
service.
FUEL SYSTEM AND AIR INTAKE
Fuel System
Fuel Line
1. Check the quick-connect fuel line for signs of wear,
deterioration, damage or leakage. Replace if necessary.
2. Be sure fuel line is routed properly.
IMPORTANT: Make sure line is not kinked or pinched.
3. Replace fuel line every two years.

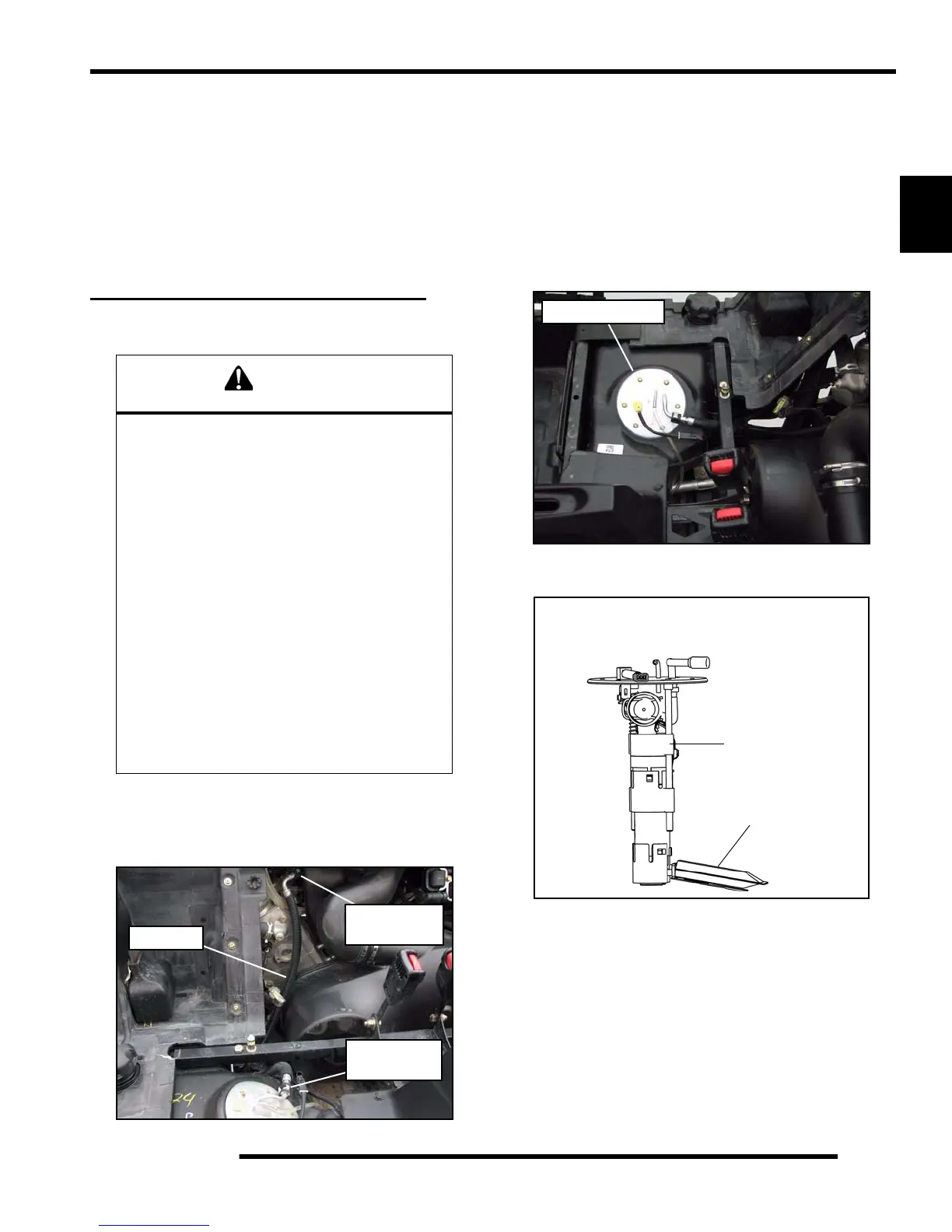

Fuel Pump / Fuel Filters
The 800 EFI RZR engine uses a non-serviceable, high-volume,
high-pressure, fuel pump that includes a preliminary filter and
an internal fine filter located before the pump regulator.
NOTE: Neither filter is servicable.
NOTE: For all other information related to the EFI
System, refer to Chapter 4.
Vent Lines
1. Check fuel tank, front gear case, rear gear case and
transmission vent lines for signs of wear, deterioration,
damage or leakage. Replace every two years.
2. Be sure vent lines are routed properly and secured with
cable ties.
IMPORTANT: Ensure lines are not kinked or pinched.
WARNING
Gasoline is extremely flammable and explosive
under certain conditions.
Always stop the engine and refuel outdoors or in
a well ventilated area.
Do not smoke or allow open flames or sparks in
or near the area where refueling is performed or
where gasoline is stored.
Do not overfill the tank. Do not fill the tank neck.
If you get gasoline in your eyes or if you swallow
gasoline, seek medical attention immediately.
If you spill gasoline on your skin or clothing,
immediately wash it off with soap and water
and change clothing.
Never start the engine or let it run in an enclosed
area. Engine exhaust fumes are poisonous and
can result loss of consciousness or death
in a short time.
Never drain the fuel when the engine is hot.
Severe burns may result.
Injector Rail
Connector
Fuel Line
Fuel Pump
Connector
Fuel Pump Asm
Fuel Pump Asm
Located in Fuel Tank
Preliminary Filter
Fine Filter
To Next Page
