3. Remove air filter assembly and remove the pre-filter sleeve.
4. Inspect the main air filter element and replace if necessary.
Do not clean the main filter, the filter should be replaced.
NOTE: If the filter has been soaked with fuel or oil it
must be replaced.
5. Wash pre-filter in warm soapy water and allow it to air dry.
NOTE: If unable to clean the pre-filter, replace it.
NOTE: Service more frequently if vehicle is operated
in wet conditions or at high throttle openings for
extended periods.
Installation
1. Clean the air box thoroughly.
2. Install a new or clean pre-filter over the main air filter
element.
3. Reinstall the filter into the air box. Be sure the filter fits
tightly in the air box.
NOTE: Apply a small amount of general purpose
grease to the sealing edges of the filter and the air
box cap seal before installing.
4. Install air box cap and secure with clips.

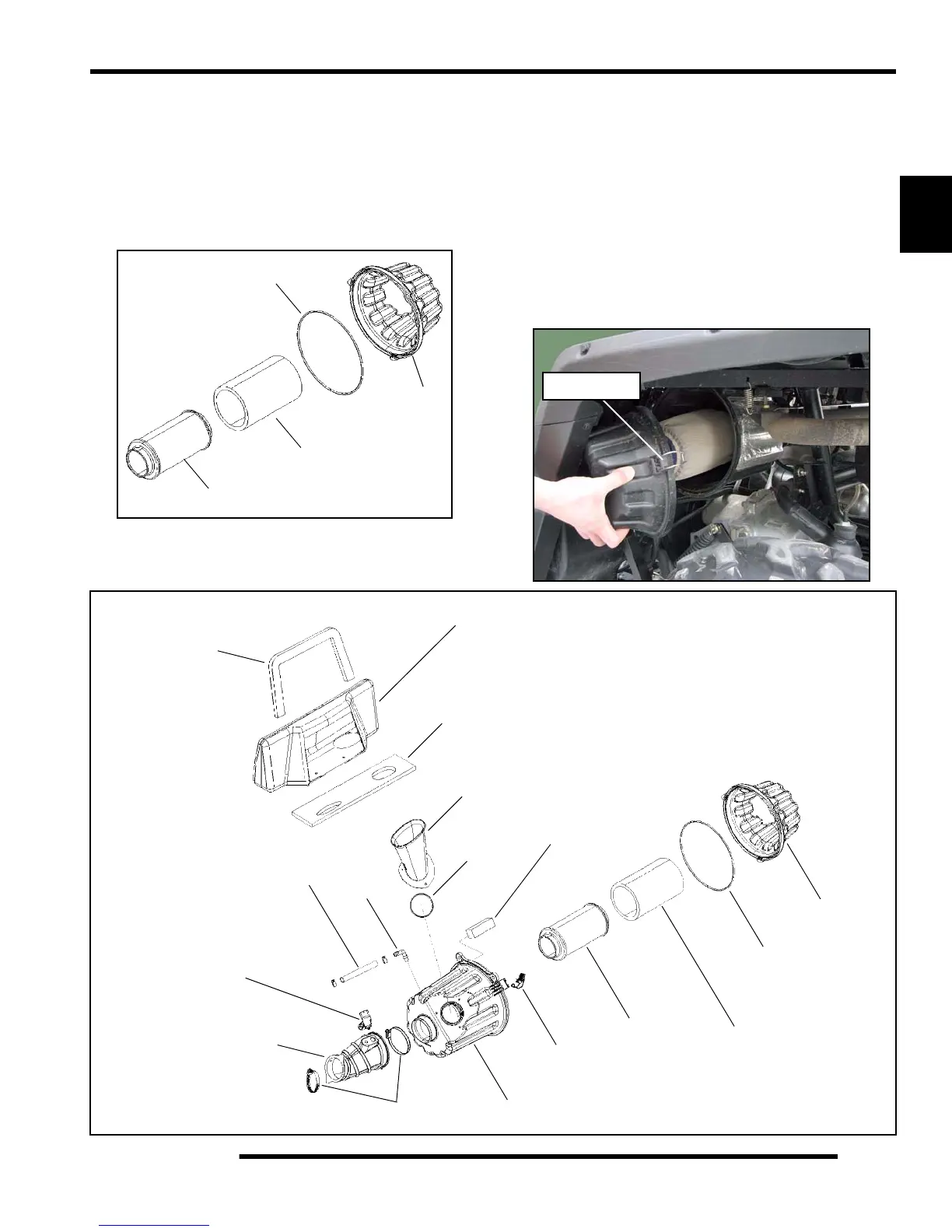

Cap
Seal
Air Filter
Pre-Filter
Sleeve
Secure Clips
Cap
Seal
Clip (2)
Boot
Air Box Can
Air Intake Duct
Breather
Seal
Fitting
T-MAP
Breather
Intake Box
Pre-Filter
Air Filter
Clamps
Intake Duct
Foam Seal
Air Box
Foam Seal
Sleeve
Filter
Hose
Sensor
