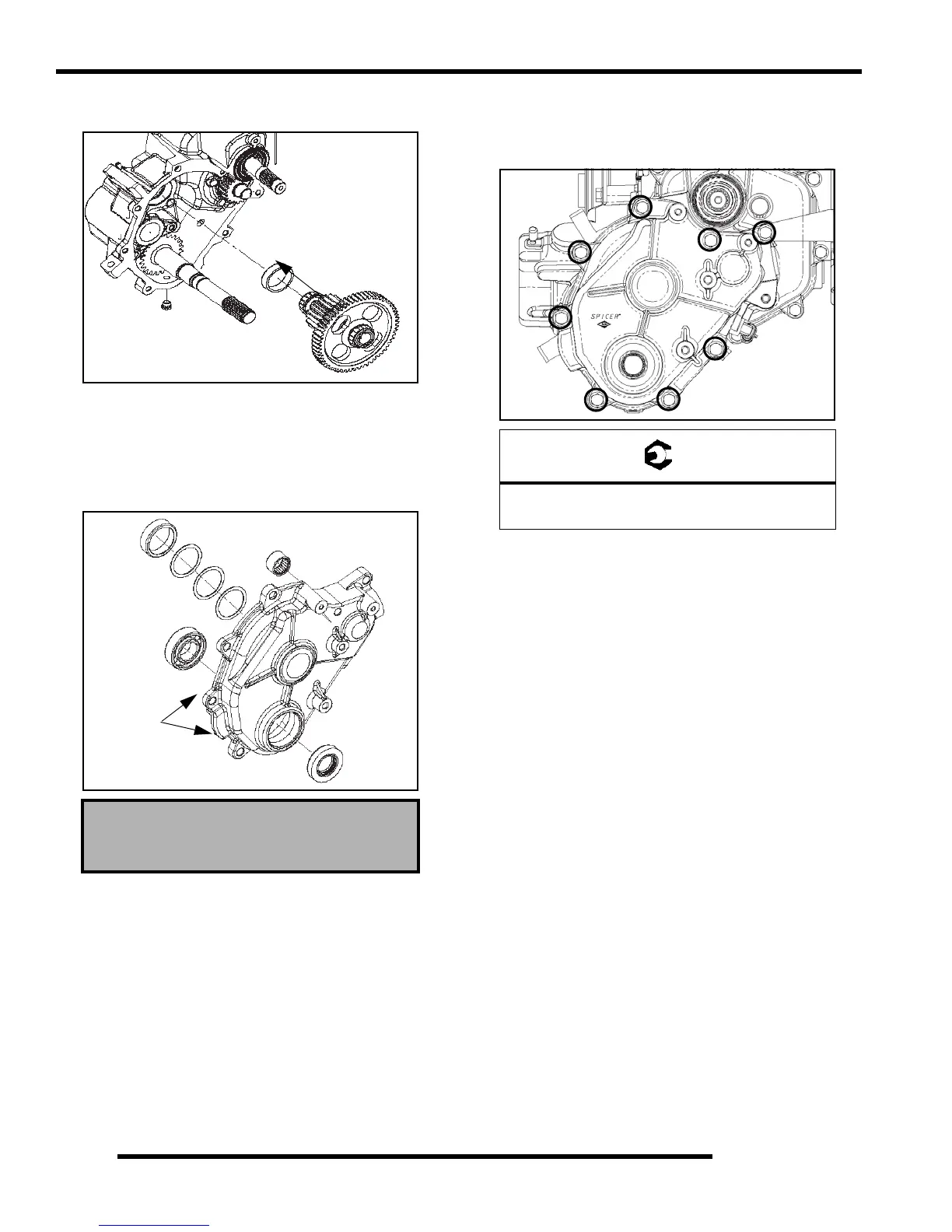

5. Reinstall the intermediate pinion shaft assembly and
bearing cup.
6. Assemble the transfer case cover using new components as
required. Press in new bearings and a seal using standard
installation tools. (needle bearing is installed round edge
inward) Install a new shaft seal flush with the surface, the
shims and bearing cup. Apply a thin coat of sealant to the
mating surfaces. Apply lubricant to the seal lip.
7. Install the transfer case cover. Align the dowels (#1 & #7)
and insert the cover screws (note position of the longest
screw #4). Torque the screws evenly to specification in
sequence as shown.
Apply Sealant PN 2871557
To Case Mating Surfaces
2871557
= T
Transfer Case Cover Screws:
23-27 ft. lbs. (31-37 Nm)
