3.18
ENGINE
12. Elevate the rear of the vehicle off the ground using a
suitable ATV lift and remove both rear wheels.
13. Remove all exhaust components from vehicle and engine.

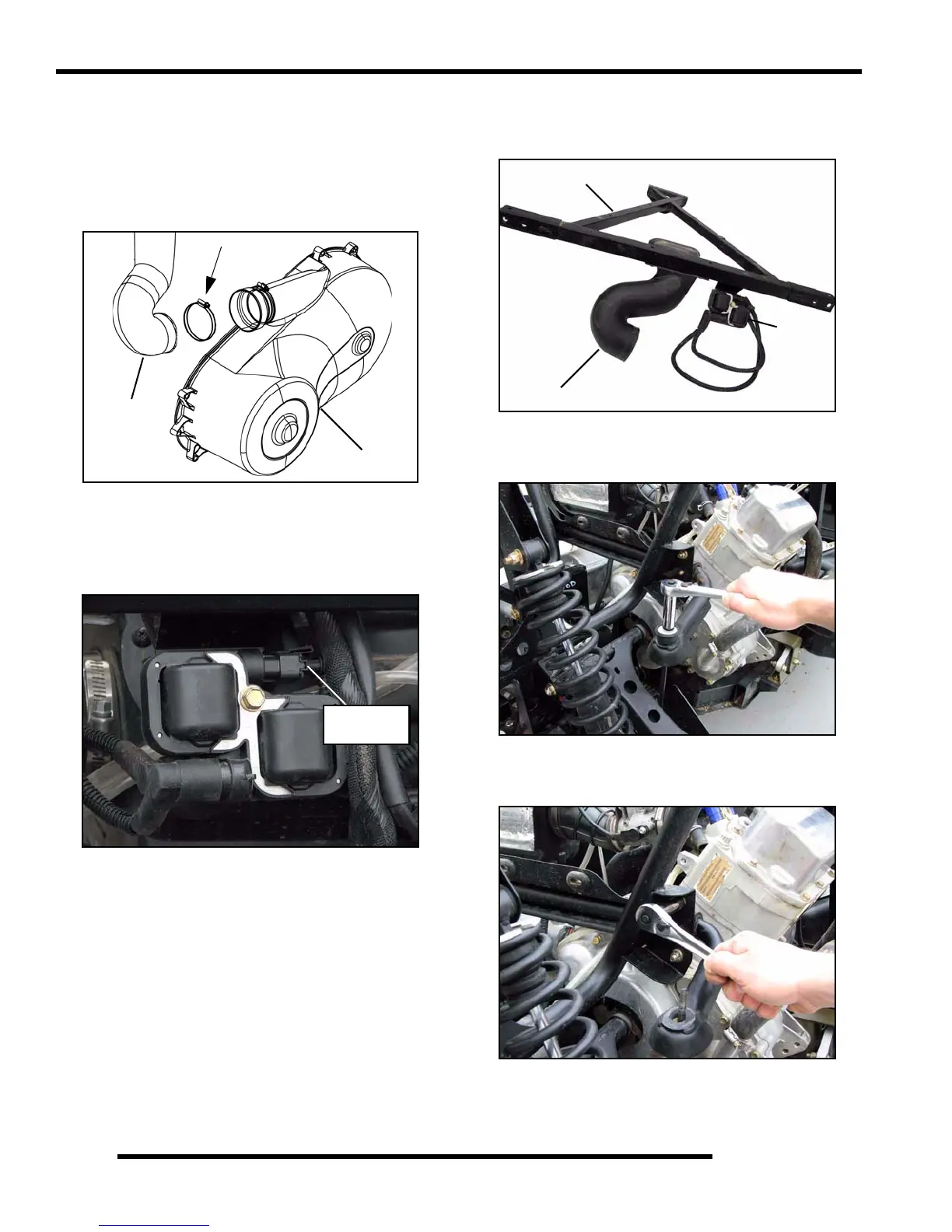

14. Loosen the hose clamp attaching the outlet duct to the PVT
cover. Leave the duct attached to the upper frame support.
15. Remove the (8) screws that retain the PVT cover and
remove cover.
16. Remove the high tension leads from the spark plugs and
disconnect the ignition coil harness.
17. Remove the vent lines from the upper bolt-in frame brace
and plug vent lines to prevent fluid leakage during removal.
18. Remove the (6) fasteners retaining the upper bolt-in frame
brace and remove it from the vehicle with the ignition coil
and PVT duct attached.
19. Remove the upper nut and grommet from the stabilizer bar
linkage on both sides of the vehicle.
20. Remove the (4) fasteners retaining the stabilizer bar and
bracket and remove the assembly from the vehicle.
21. Remove the engine breather hose from the valve cover.
Outlet Duct
PVT Cover
Harness
Connection
Ignition
Coil
Frame Brace
PVT Duct
To Next Page
