9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

3.69

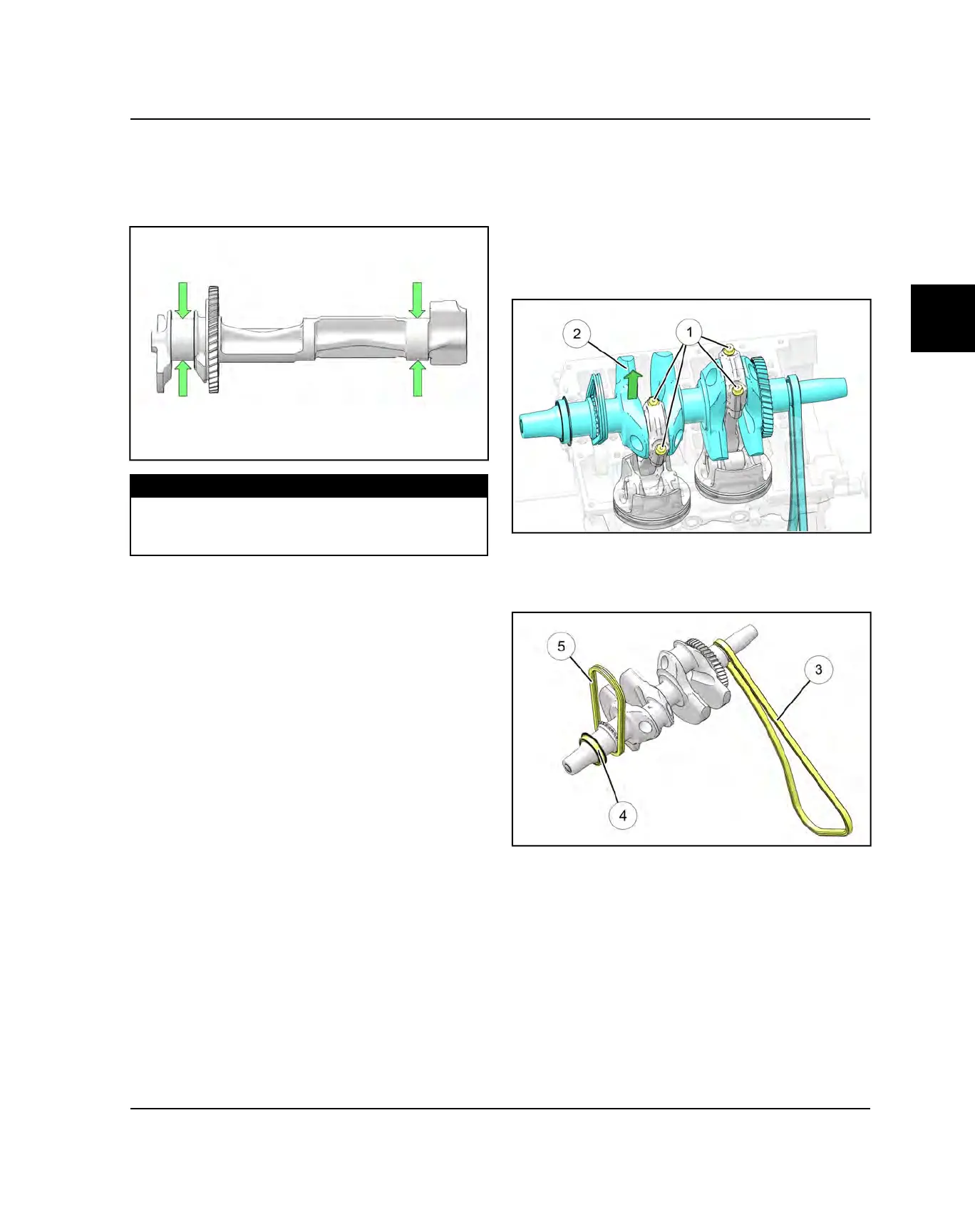

5. Measure each bearing journal in two locations, 90

degrees apart. Replace balance shaft if either journal

is worn below the service limit specification. If worn

past the service limit, replace the balance shaft

assembly.

MEASUREMENT

Balance Shaft Diameter (MAG & PTO):

1.4939 - 1.4946" (37.946 - 37.962 mm)

Service Limit: 1.4921" (37.900 mm)

CRANKSHAFT REMOVAL / INSPECTION

1. Perform Balance Shaft Removal / Inspection page

3.68

2. For ease of assembly, mark each connecting rod and

end cap.

3. Loosen, remove and discard the four connecting rod

bolts

. Remove the end caps from the crankshaft

4. Carefully lift the crankshaft out of the crankcase.

5. Remove the cam chain

, PTO main seal

and oil

pump drive chain

from the crankshaft.
