Polaris RZR PRO XP 2021 - Driven Clutch Assembly View

6
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
6.33

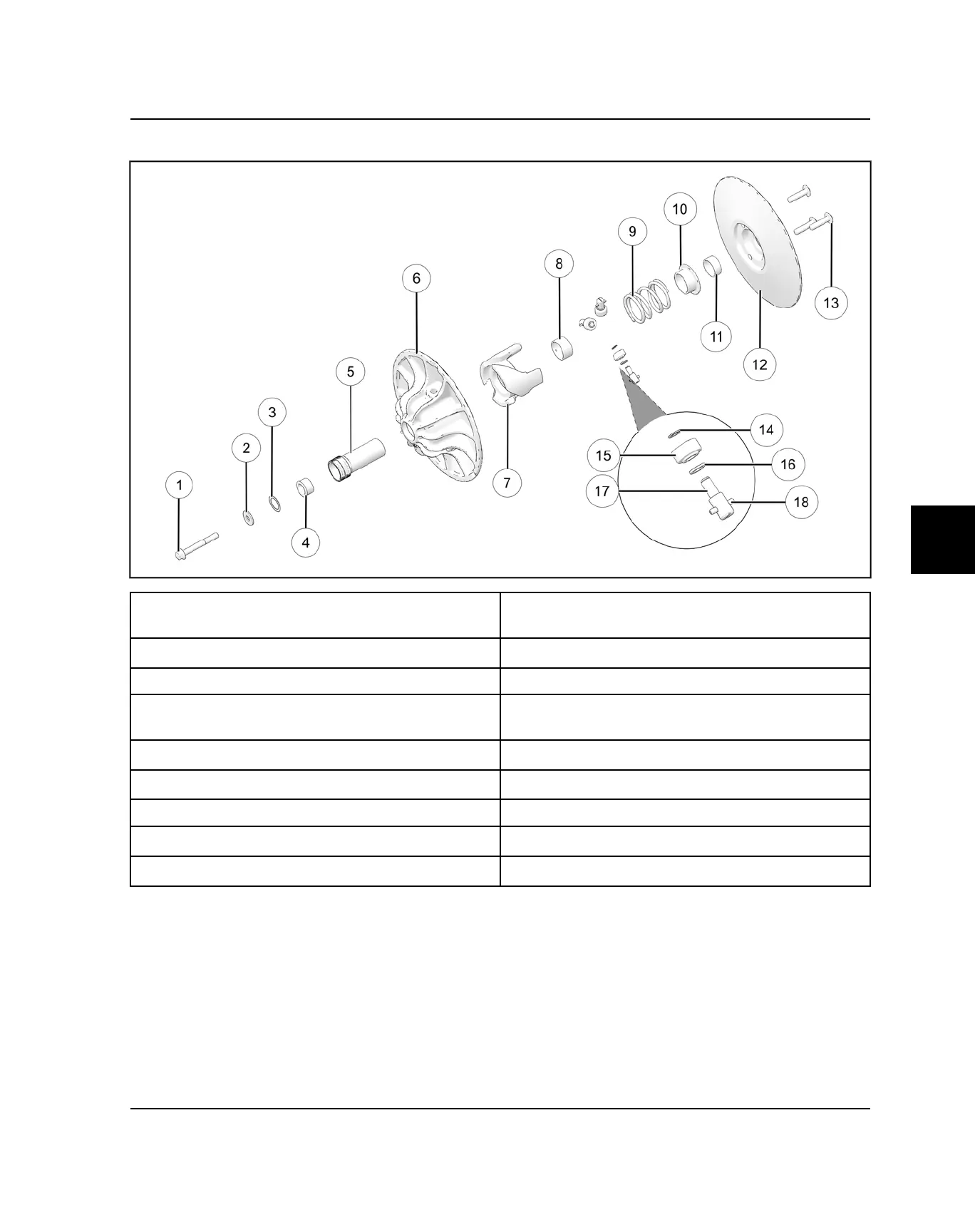

DRIVEN CLUTCH ASSEMBLY VIEW
q
Driven Clutch Bolt
43 ft-lbs (58 Nm)
a
Spring Cup
w
Washer
s
Bushing
e
Shim
d
Moveable Sheave
r
Bushing
f
Helix Fasteners
32 ft-lbs (44 Nm)
t
Driven Post
g
E-Clip
y
Stationary Sheave
h
Roller
u
Helix
j
Washer
i
Bushing
k
Roller Pin
o
Spring
l
Spring Pin
PVT SYSTEM
