9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

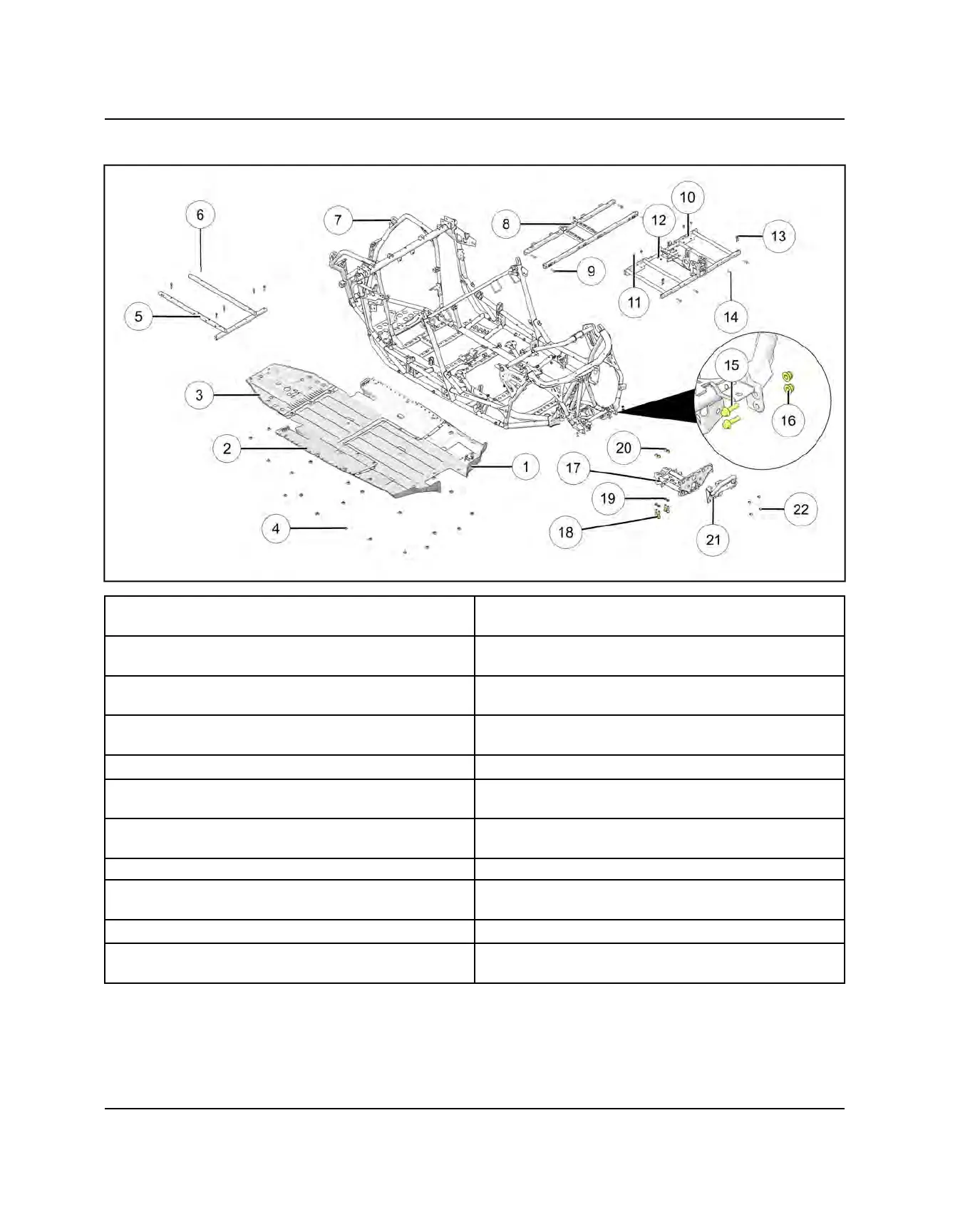

CHASSIS / MAIN FRAME (4-SEAT)
q
Front Skid Plate
d
Fastener - M8 x 1.25 x 45
18 ft-lbs (25 Nm)
w
Middle Skid Plate
f
Fastener - M8 x 1.25 x 50
15 ft-lbs (20 Nm)
e
Rear Skid Plate
g
Fastener - M10 x 1.5 x 50
30 ft-lbs (40 Nm)
r
Skid Plate Fasteners
9 ft-lbs (12 Nm)
h
Fastener - M10 x 1.5 x 35
33 ft-lbs (45 Nm)
t
Cargo Box Support Bracket
j
Nut - M10 x 1.5 Nyloc
y
Cargo Box Support Bracket Fasteners
15 ft-lbs (20 Nm)
k
Front Lower Frame Assembly
u
Main Frame Assembly
l
Fastener - M14 x 2 x 70
148 ft-lbs (200 Nm)
i
Rear Seat Base Frame
1(
Washer - 15 x 28 x 2.5
o
Fastener - M10 x 1.5 x 55
30 ft-lbs (40 Nm)
2)
Nut - M14 x 2 Flanged
a
Front Seat Base Frame
2!
Front Bumper
s
Fastener - M10 x 1.5 x 16
37 ft-lbs (50 Nm)
2@
Front Bumper Fasteners
30 ft-lbs (40 Nm)
