9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
9.23

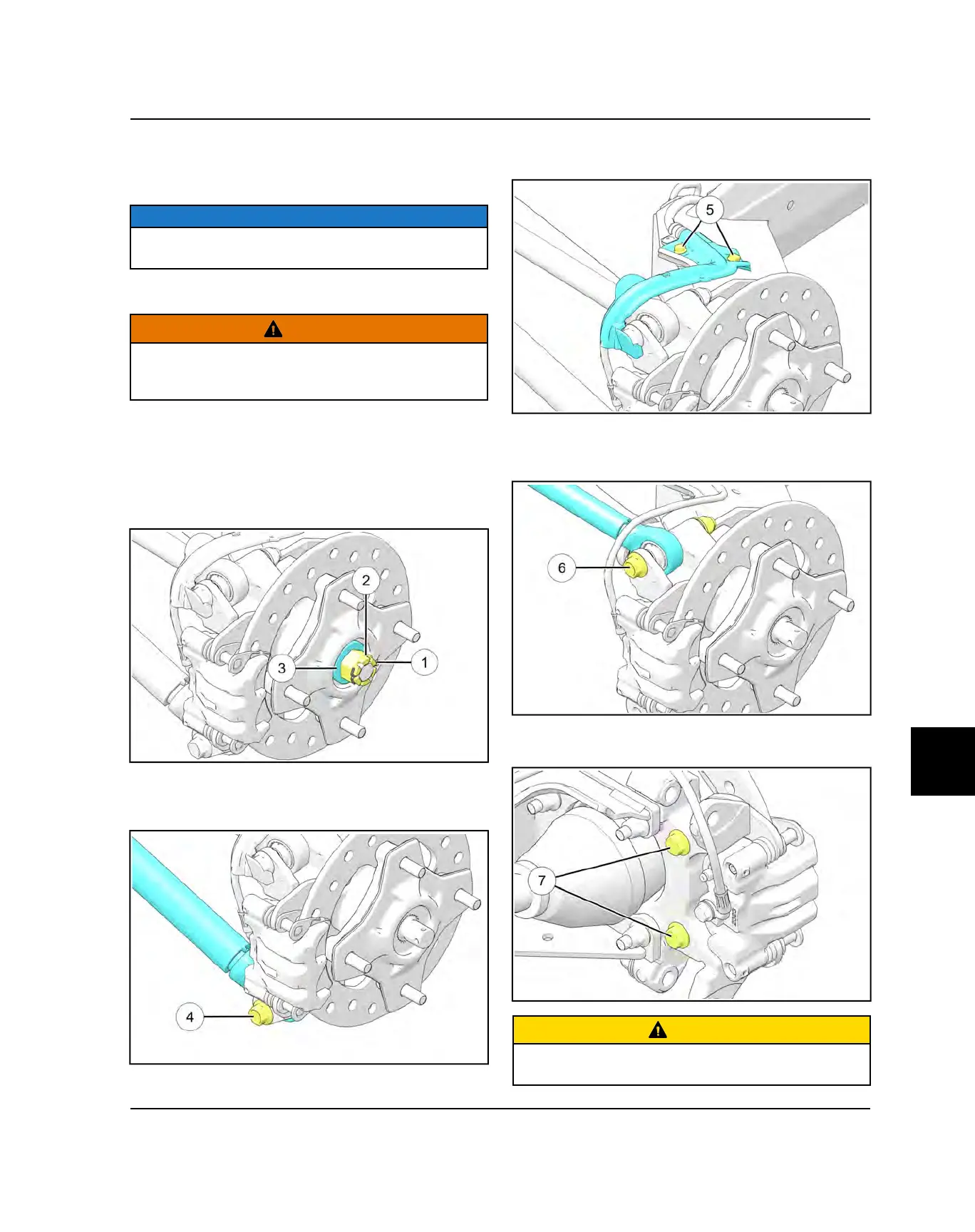

TRAILING ARM REMOVAL /
INSTALLATION
REMOVAL
NOTICE
Use new attaching nuts upon installation of the rear
trailing arm and bearing carrier.
1. Raise and support vehicle by main frame.
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure.
2. Remove the four wheel nuts and remove the rear
wheel.
3. Remove the cotter pin
q
and loosen the rear wheel
hub castle nut
w
. Remove the nut, cone washer
e
from the rear wheel hub assembly. Discard cotter pin,
nut, and cone washer.
4. Remove the lower radius rod mounting bolt
r
, nut
and washer from the bearing carrier. Swing radius rod
down. Discard the nut.
5. Remove two fasteners
t
and remove the brake line
guide.
6. Remove upper radius rod mounting bolt
y
, nut, and
washer from the bearing carrier. Swing radius rod
down. Discard the nut.
7. Remove the two brake caliper mounting bolts
u
.
Discard bolts.
CAUTION
Do not hang the caliper by the brake line. Use wire to
hang caliper to prevent damage to the brake line.
STEERING / SUSPENSION
