9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
STEERING SYSTEM

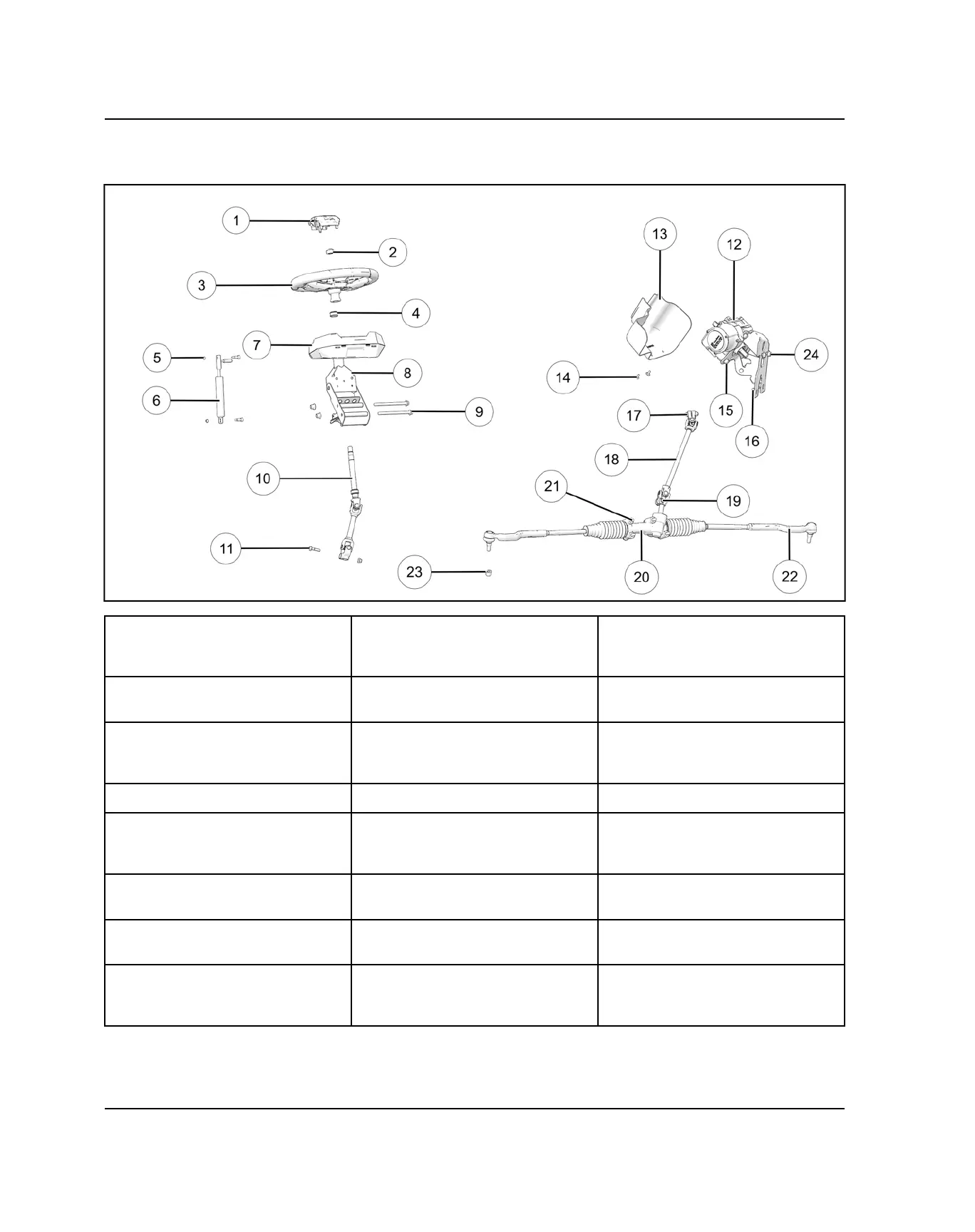

STEERING SYSTEM ASSEMBLY VIEW
q
Steering Wheel Cap
o
Steering Column Fasteners
33 ft-lbs (45 Nm)
k
EPS to Lower Steering Shaft
Pinch Bolt
22 ft-lbs (30 Nm)
w
Steering Wheel Nut
66 ft-lbs (90 Nm)
a
Upper Steering Shaft
l
Lower Steering Shaft
e
Steering Wheel
s
Upper Steering Shaft Pinch Bolts
22 ft-lbs (30 Nm)
1(
Steering Shaft-to-Steering Rack
Pinch Bolts
48 ft-lbs (65 Nm)
r
Steering Bushing
d
EPS Unit
2)
Steering Rack
t
Tilt Shock Fasteners
9 ft-lbs (12 Nm)
f
EPS Cover
2!
Steering Rack Mounting
Fasteners
44 ft-lbs (60 Nm)
y
Tilt Shock
g
EPS Cover Fasteners
2@
Tie Rod End
44 ft-lbs (60 Nm)
u
C4 Gauge Bezel
h
EPS-to-Bracket Fasteners
33 ft-lbs (45 Nm)
2#
Tie Rod End Nut
30 ft-lbs (40 Nm) + 90°
i
Steering Column
j
Lower EPS Bracket Mounting
Fasteners
26 ft-lbs (35 Nm)
2$
Upper EPS Bracket Mounting
Fasteners
33 ft-lbs (45 Nm)
STEERING / SUSPENSION
