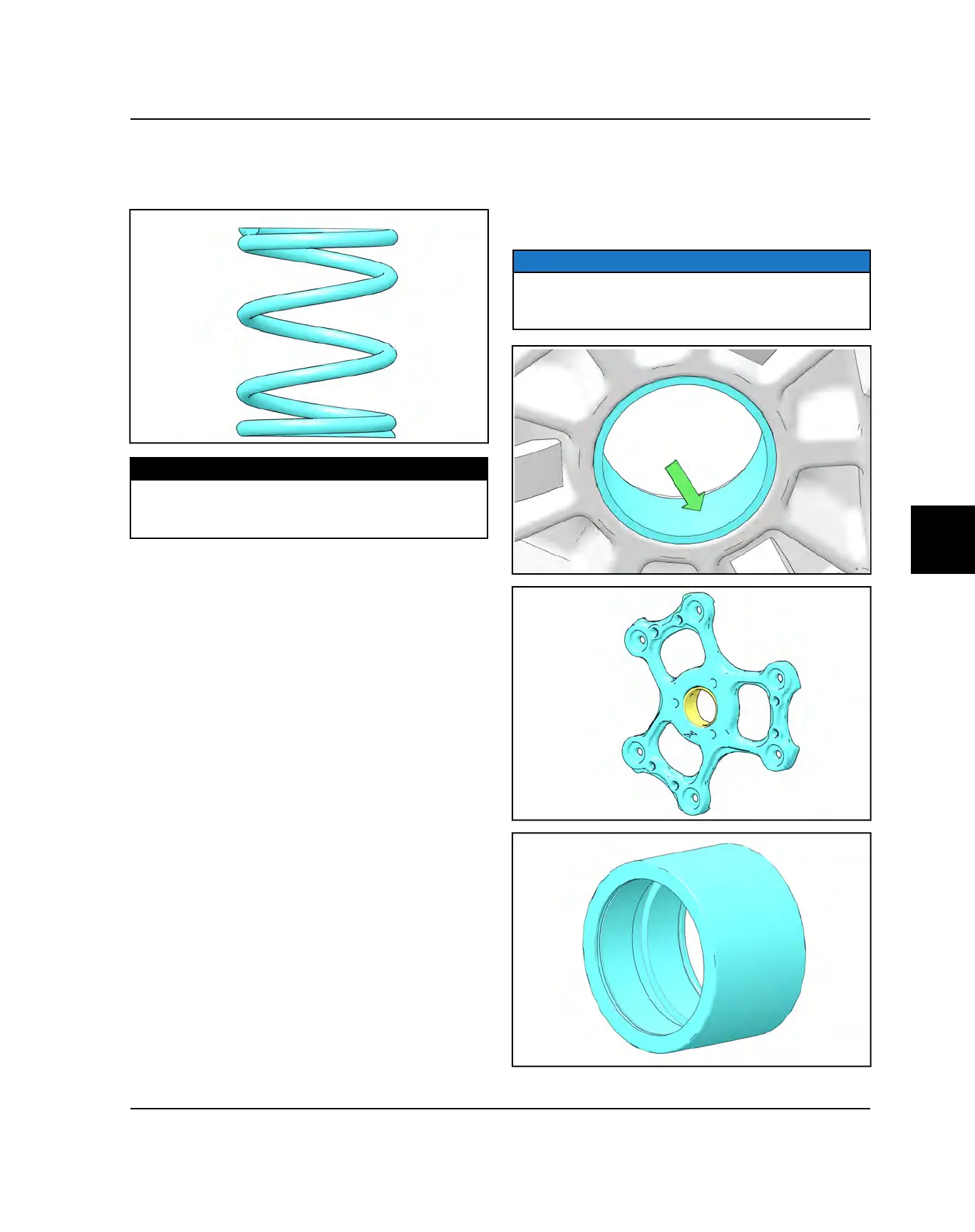

DRIVE CLUTCH SPRING INSPECTION
• Measure the Drive Clutch Spring height. Compare to
specification and replace if necessary.
MEASUREMENT
Drive Clutch Spring Height:
7044938: 3.76 in (95.43 mm)7045110: 4.60”
(116.74mm)7045326: 3.83” (97.26mm)
DRIVE CLUTCH BUSHINGS INSPECTION
1. Inspect the Teflon® coating on the Moveable Sheave
bushing, Drive Clutch Cover Bushing, and the One-
way Bearing Bushing. Inspect for signs of wear,
grooving or cracking. De-glaze sheave surfaces with
a 3M Scotch-Brite™ Pad if needed.
NOTICE
Replace the bushing(s) if more brass than Teflon® is
visible on the bushing(s). Refer to Bushing Service
page 6.16 procedure.
