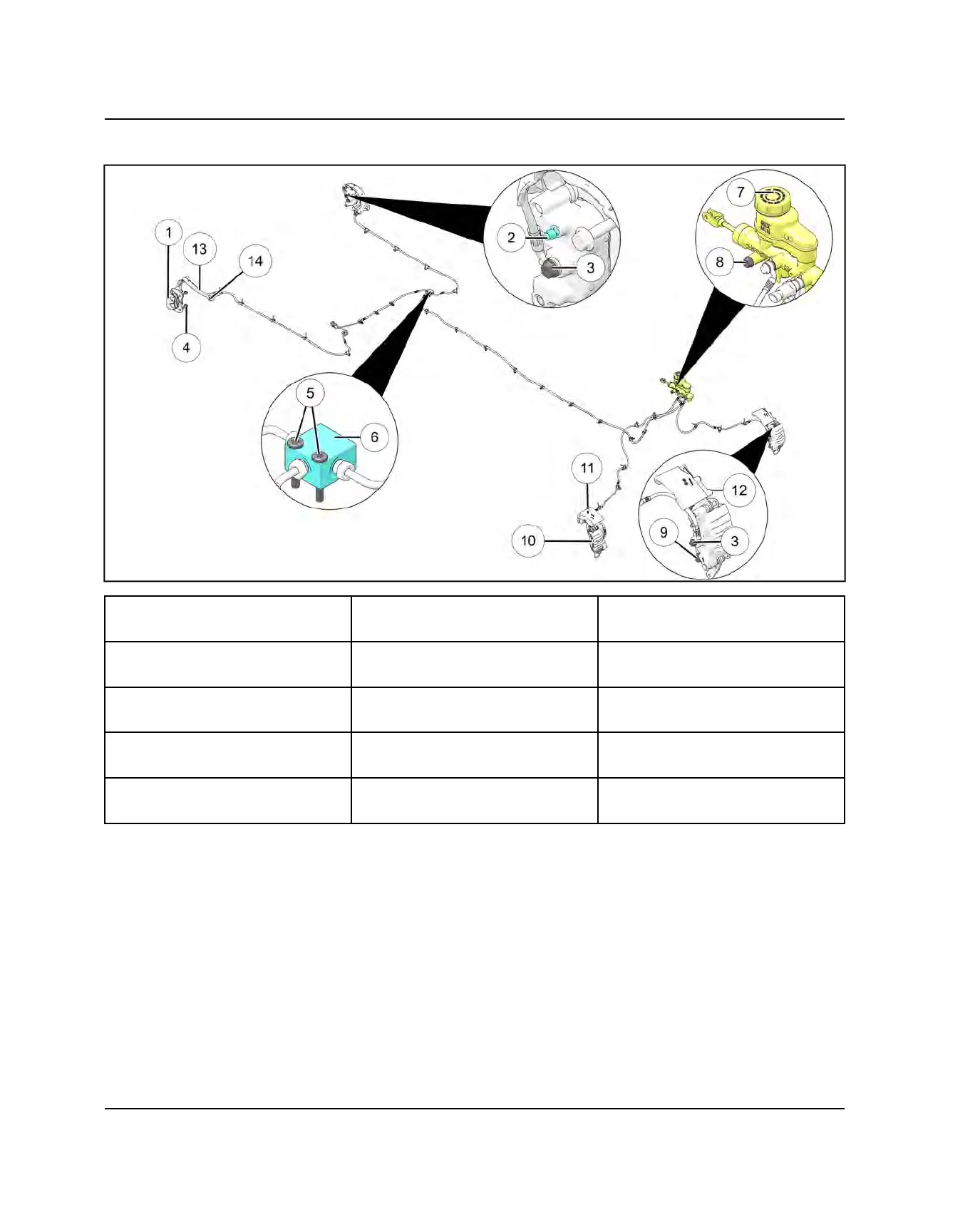

BRAKE SYSTEM VIEW (4-SEAT)
q
Rear Brake Caliper
w
Bleeder Screw
48 in-lb (5 Nm)
e
Brake Banjo Bolt
15 ft-lbs (20 Nm)
r
Rear Brake Caliper Fasteners
35 in-lb (4 Nm)
t
Junction Block Fasteners
35 in-lb (4 Nm)
y
Junction Block
u
Master Cylinder
i
Master Cylinder Shield Fasteners
18 ft-lbs (25 Nm)
o
Front Brake Caliper Fasteners
33 ft-lbs (45 Nm)
a
Front Brake Caliper
s
Front Brake Scraper
d
Brake Scraper Fasteners
7 ft-lbs (10 Nm)
f
Brake Line Guide
g
Brake Line Guide Fasteners
7 ft-lbs (10 Nm)
