Polaris RZR PRO XP 2021 - 2021 Drive Clutch Service; Drive Clutch Assembly View (2021)

6
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
6.21
2021 DRIVE CLUTCH SERVICE

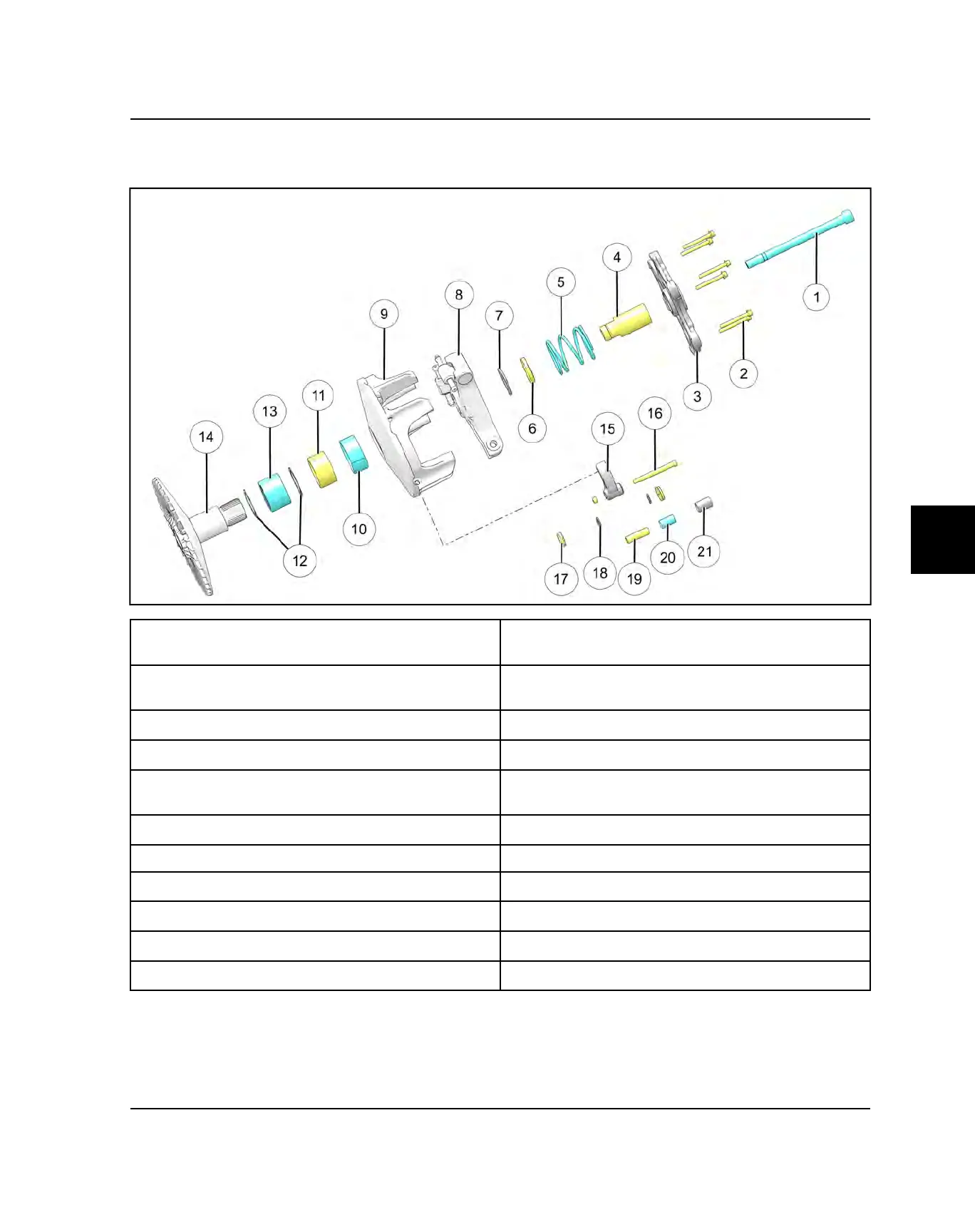

DRIVE CLUTCH ASSEMBLY VIEW (2021)
q
Clutch Bolt
140 ft-lbs (190 Nm)
d
Washer
w
Drive Clutch Cover Bolts
15 ft-lb (21 Nm)
f
Needle Bearing
e
Drive Clutch Cover g
Stationary Sheave
r
Outer Clutch Post h
Shift Weight
t
Spring
j
Shift Weight Fastener
20 in-lb (2 Nm)
y
Belleville Washer (Dome side facing outer post)
k
Clutch Button
u
Washer
l
Washer
i
Spider
1(
Spider Pin
o
Sheave Assembly
2)
Bushing
a
Bushing
2!
Roller
s
Clutch Spacer
PVT SYSTEM
