9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
12.15

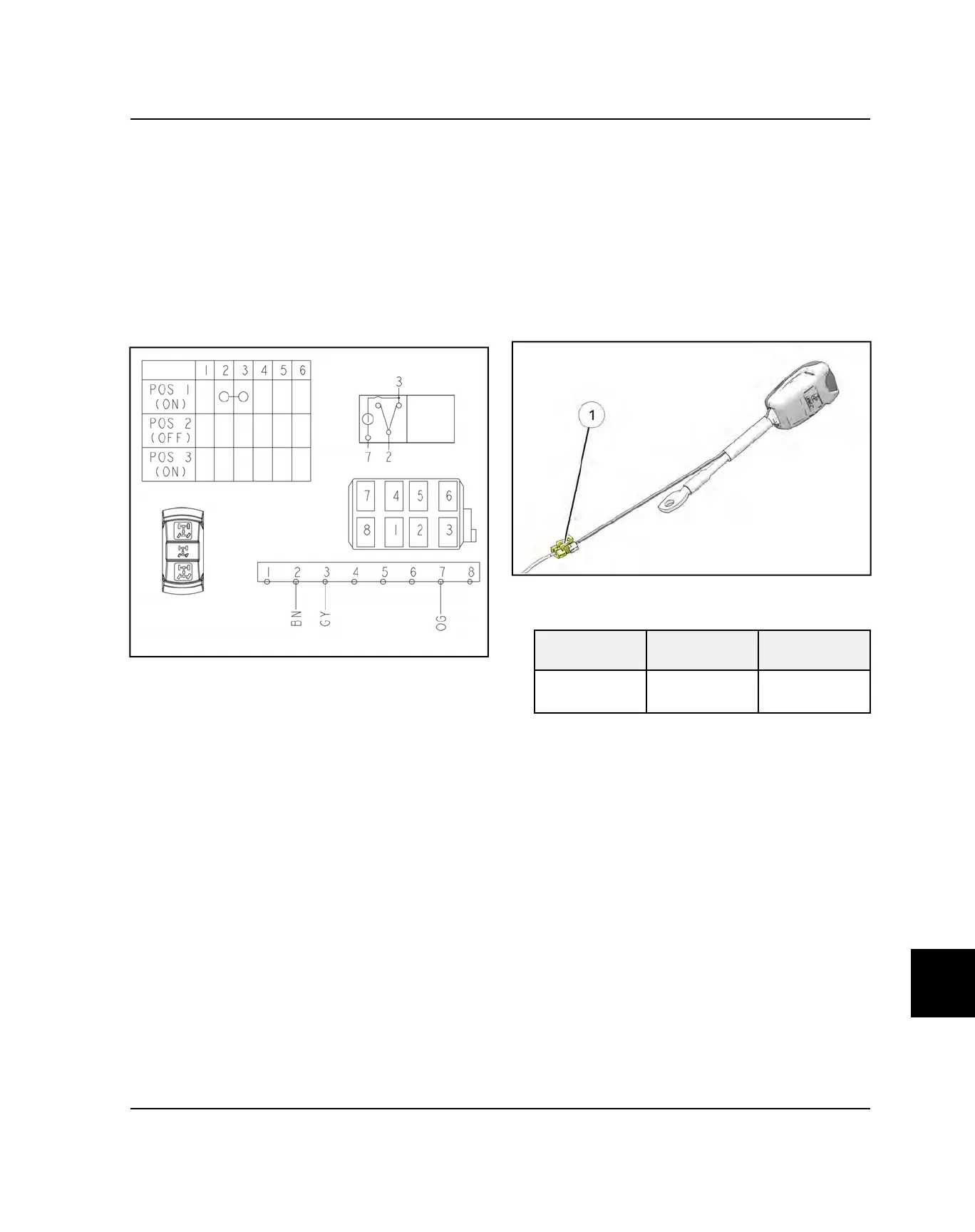

AWD / 2WD SWITCH (NO TURF MODE)
1. Disconnect the AWD / 2WD switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 2 sets of outputs (AWD / 2WD). If
any of the tests fail, replace the switch assembly.
• Move the switch to AWD (ON). There should be
continuity between switch pins 2 and 3 as well as 3
and 7.
• Move the switch to 2WD (NONE / OFF). There should
ONLY be continuity between pins 3 and 7.
SEAT BELT SWITCH
Location
Found on the driver’s seat belt latch
Functionality
If the circuit is open (buckle undone) vehicle speed will
be limited to 15mph. If the circuit is closed (buckle
inserted), the vehicle will function normally.
Testing:
1. Disconnect the harness
q
running to the seat belt.
2. Using a multi-meter, measure between both pins on
switch.
SEAT BELT
DISENGAGED
SEAT BELT
ENGAGED
Between both
pins on switch
∞ (OL)
< 1 Ω
ELECTRICAL
