FUEL LINES

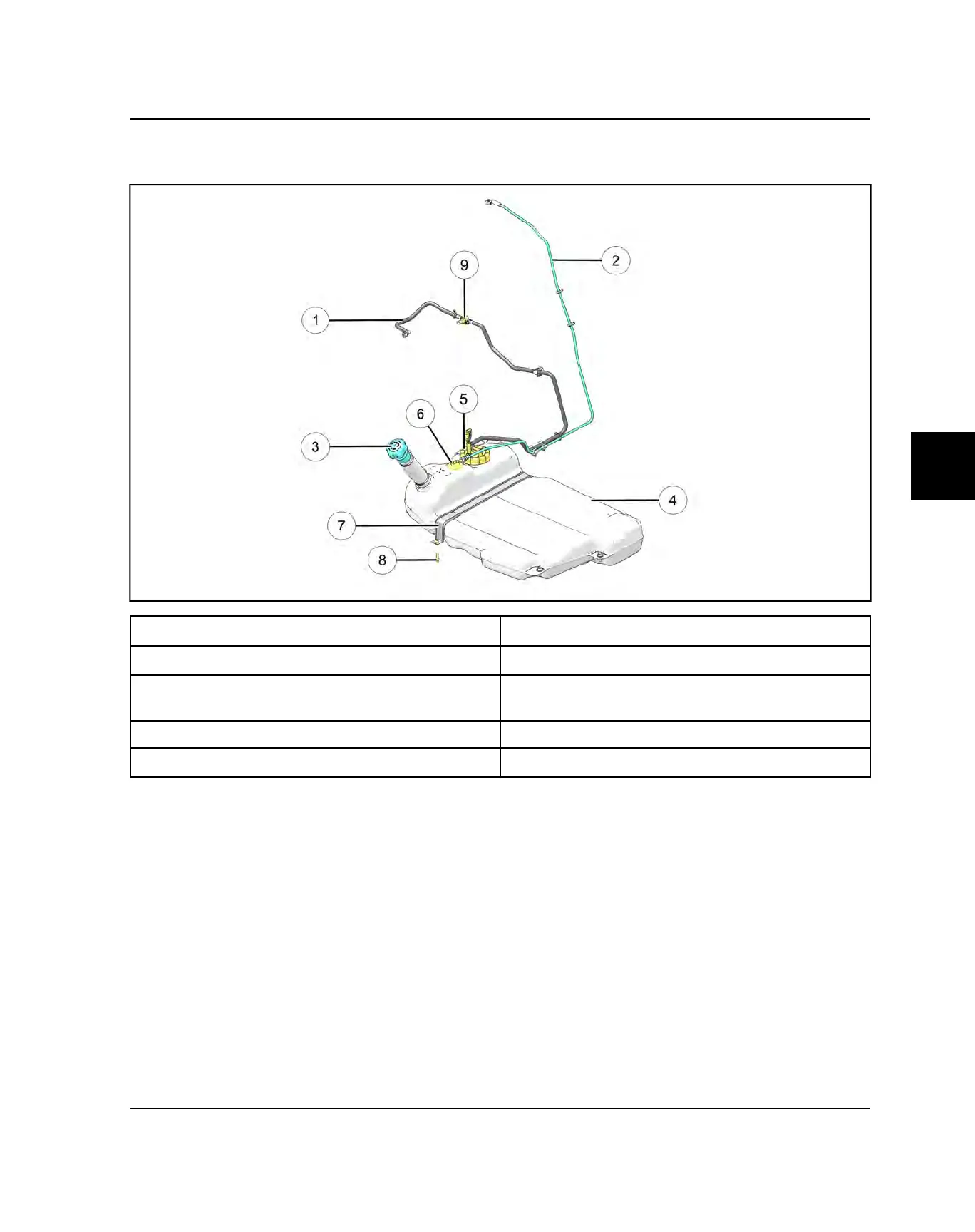

FUEL SYSTEM ASSEMBLY VIEW
q
Fuel Supply Line
y
Vent Rollover Valve
w
Fuel Vent Line
u
Fuel Tank Strap
e
Fuel Fill
i
Fuel Tank Fasteners
15 ft-lbs (20 Nm)
r
Fuel Tank
o
Fuel Pressure Sensor
t
Fuel Pump Assembly
