9.24
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

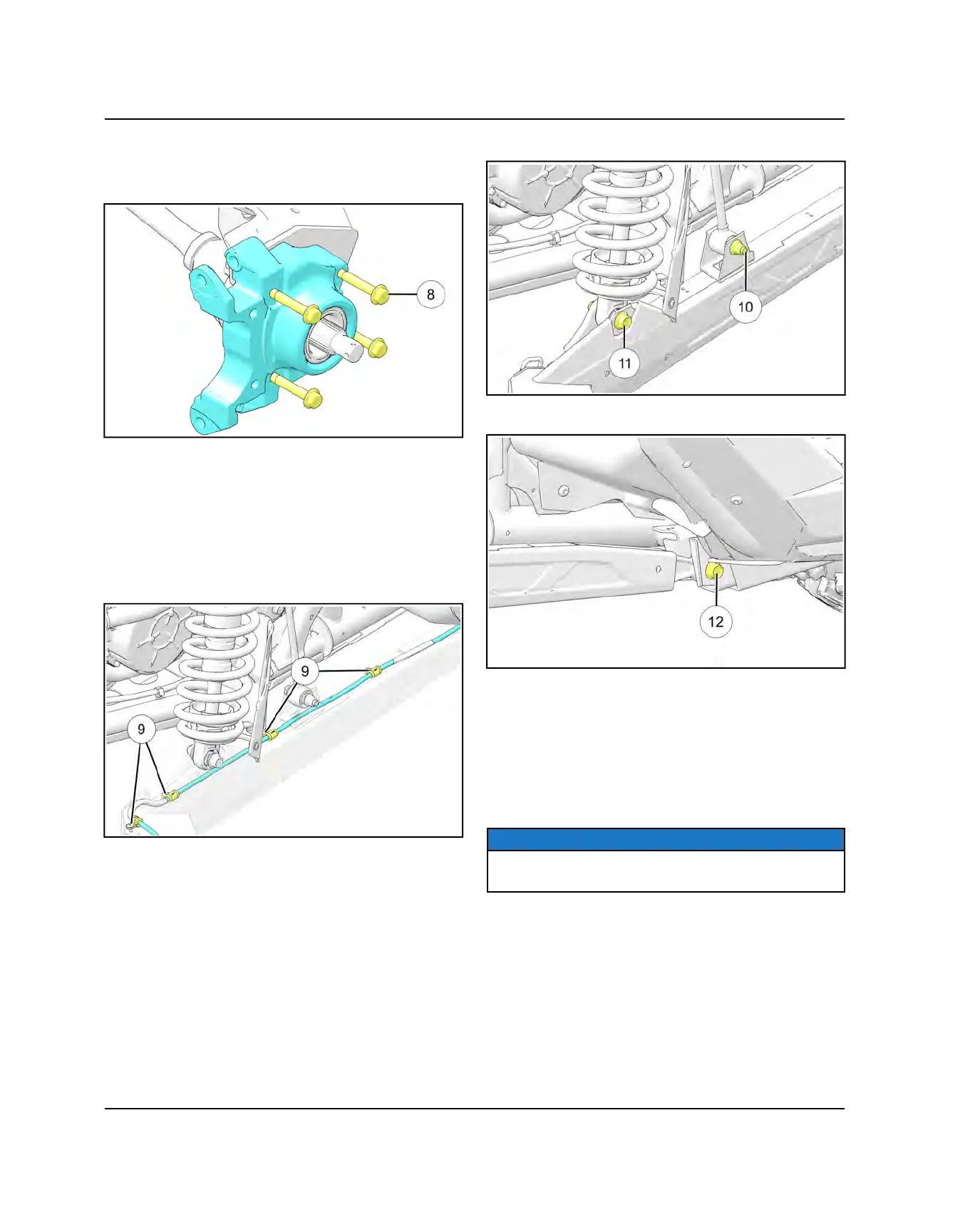

8. Remove the rear wheel hub and brake disc assembly.
9. Remove the four remaining bolts
i
that attach the
rear bearing carrier to trailing arm. Discard the nuts.
10.Remove the bearing carrier from the rear drive shaft
and trailing arm.
11. Rotate bearing by hand and check for smooth
rotation. Visually inspect bearing for moisture, dirt, or
corrosion. Replace bearing if moisture, dirt, corrosion,
or roughness is evident.
12.Remove the four clips
o
that secure the brake line
retainers to the trailing arm.
13.Remove the lower stabilizer bar linkage fastener
a
.
Discard the nut.
14.Support trailing arm with suitable jack stand or
support.
15.Remove the lower shock bolt
s
. Discard the nut.
16.Remove the front trailing arm bolt
d
. Discard the nut.
17.Remove trailing arm from vehicle. Visually inspect
trailing arm, bushings, o-rings and spherical bearing
for wear.
18.Replace trailing arm if physically damaged.
INSTALLATION
1. Reverse removal procedure to reinstall rear trailing
arm.
NOTICE
Use new fastener nuts upon installation of the rear
trailing arm and bearing carrier.
STEERING / SUSPENSION
