9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
3.87
14.Install the eleven M6
o
and two M8
i
upper
crankcase bolts. Tighten all bolts lightly by hand.

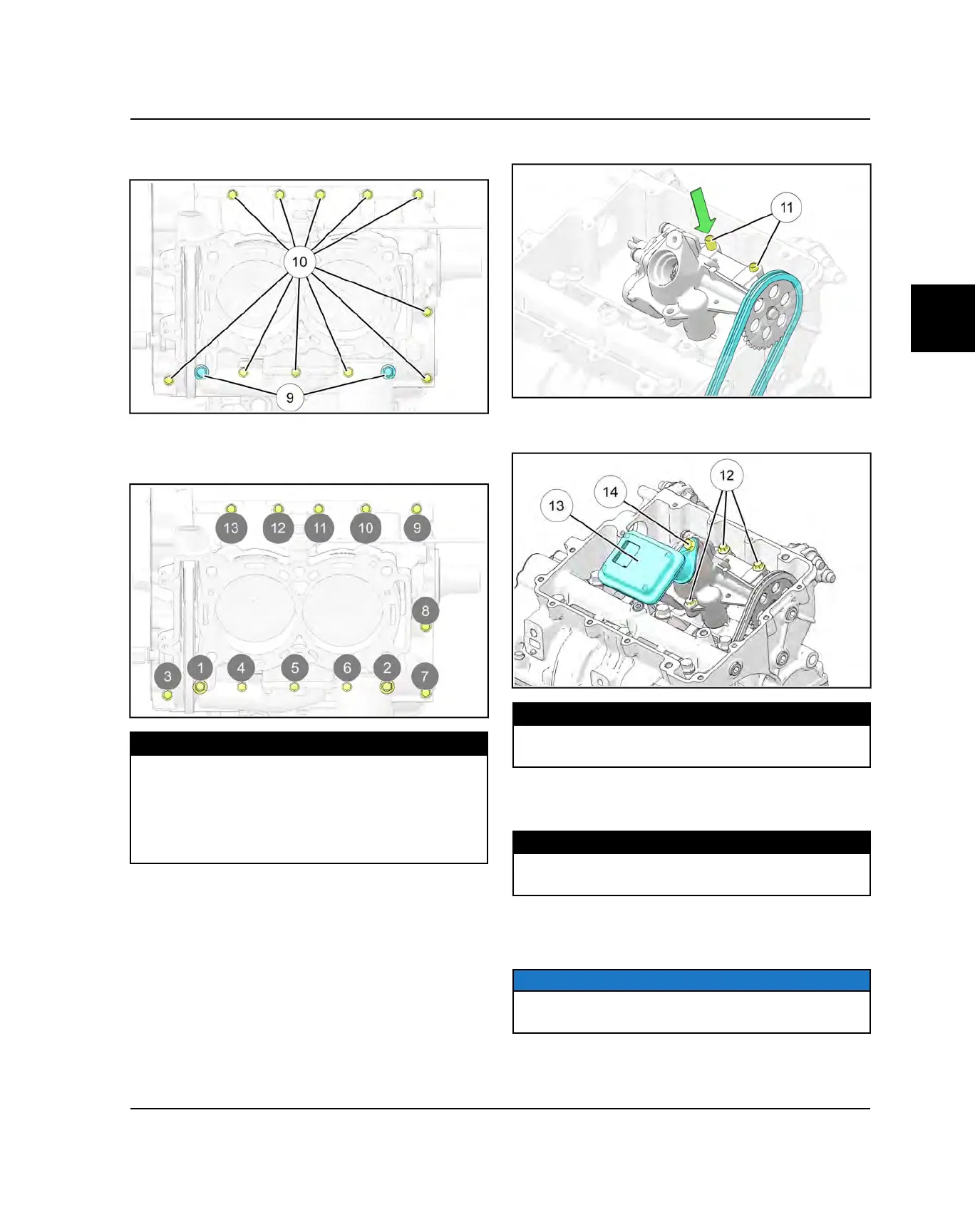

15.Torque the upper crankcase bolts in sequence to
specification. Repeat the sequence to verify final
torque.
TORQUE
Upper Crankcase Bolts:
M8 Bolts:
26 ft-lb (35 Nm)
M6 Bolts:
9 ft-lb (12 Nm)
16.Rotate the engine so the cylinder is facing down.
17.Install a new seal on the oil pump.
18.Lift the oil pump drive chain and install the oil pump.
19.Install dowel pins
s
into oil pump mounting holes.
20.Install the three bolts
d
that retain oil pump to the
crankcase. Torque mounting bolts to specification.
TORQUE
Oil Pump Mounting Bolts:
7 ft-lbs (10 Nm)
21.Reinstall oil pump pick-up
f
. Torque mounting screw
g
to specification.
TORQUE
Oil Pump Pick-Up Retaining Screw:
7 ft-lb (10 Nm)
22.Clean the gasket sealing surfaces on oil sump cover
and crankcase to remove old gasket material and any
oil.
NOTICE
Gasket surfaces must be DRY and oil free. Use care
upon assembly to keep oil away.
