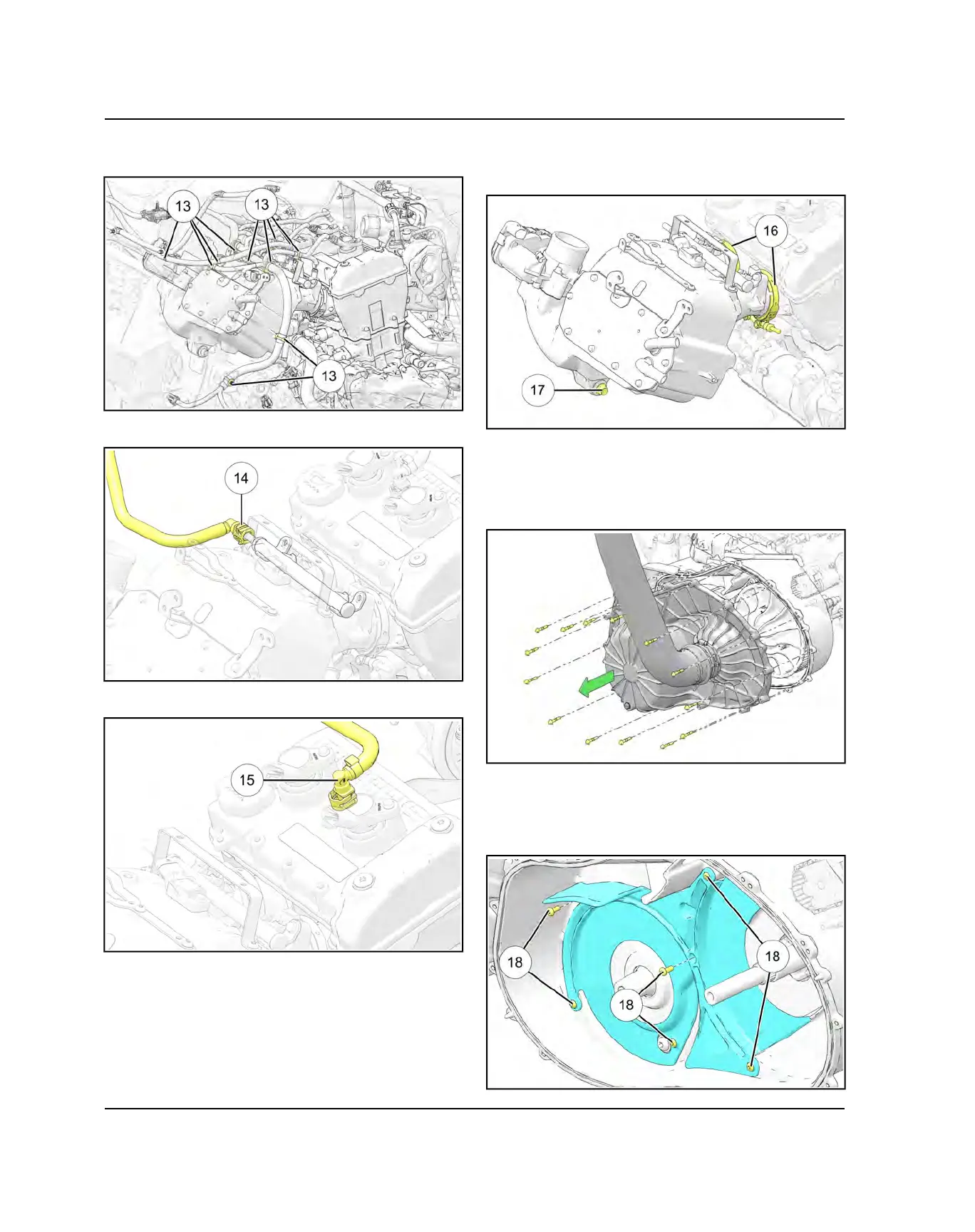

14.Remove zip ties retaining electrical harnesses and
transmission vent line to intake manifold
f
.
15.Disconnect the fuel line
g
at the fuel rail.
16.Disconnect vent line
h
from the valve cover.
17.Loosen and remove clamps
j
retaining intake
manifold to engine. Remove lower manifold mounting
bolt
k
(to trans mount bracket).
18.Remove intake manifold and throttle body as
assembly.
19.Disconnect the starter wiring.
20.Remove PVT hoses and outer cover.
21.Remove the belt, secondary clutch, and primary
clutch.
22.Remove six fasteners
l
and remove the inner PVT
cover baffle.
TRANSMISSION
