9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

8.15

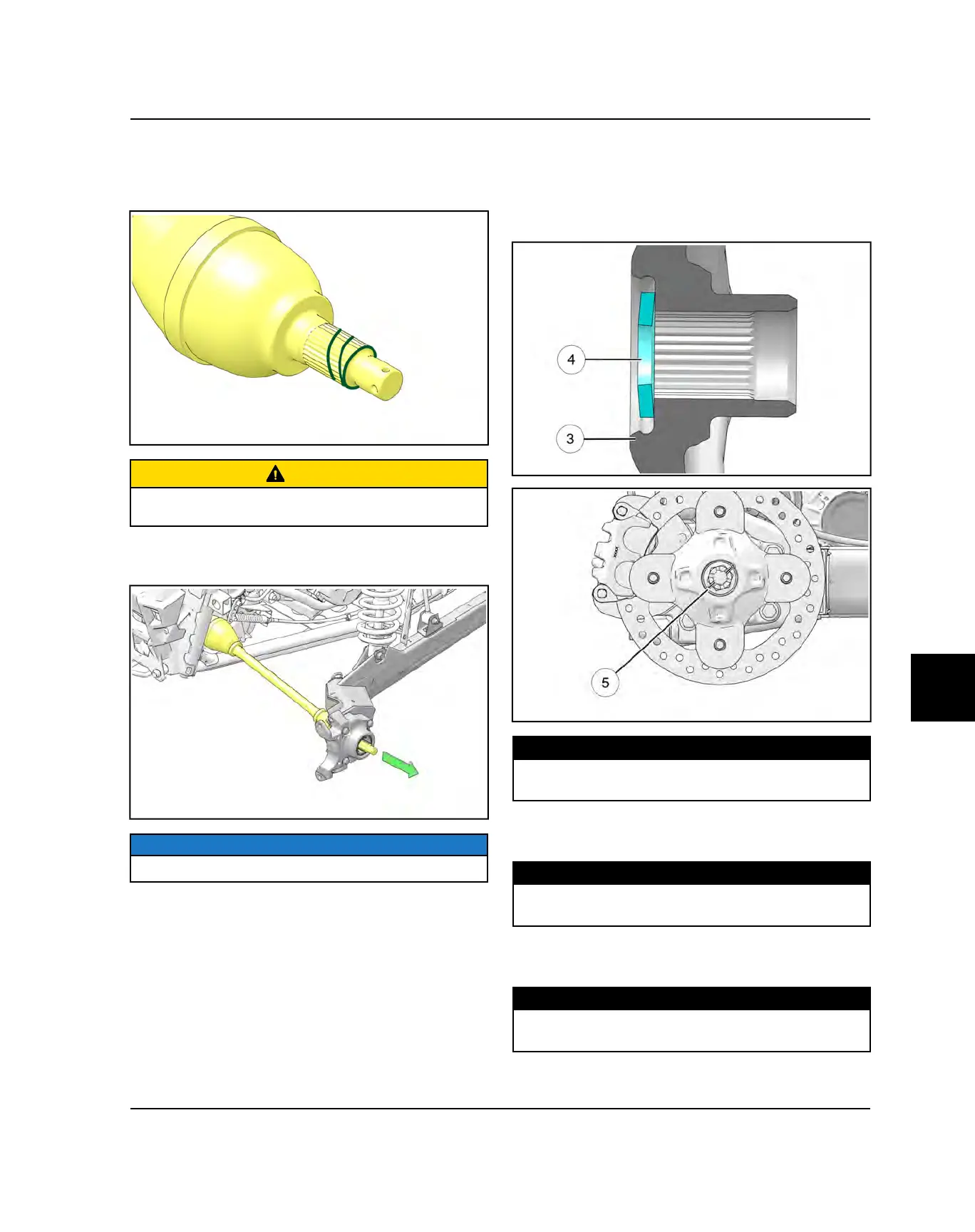

5. Apply Loctite® 680 to the hub-side splines of the

drive shaft. Apply Loctite® 680 around the entire

circumference of the end of the hub-side splines, and

then apply Loctite® 680 in a spiral pattern as shown.

CAUTION

Use caution to avoid getting Loctite® on the drive shaft

threads or castle nut.

6. Insert rear drive shaft into the bearing carrier/hub

assembly.

NOTICE

Hub assembly hidden for image clarity

7. Install NEW cone washer

into the hub assembly

with domed side facing out, and NEW castle nut.

Torque castle nut to specification. Install NEW cotter

. Tighten nut slightly if necessary to align cotter

pin holes. Bend both ends of cotter pin around end of

spindle in different directions.

TORQUE

Rear Hub Castle Nut:

180 ft-lbs (244 Nm)

8. Install the radius rod bolts, washers and new nuts.

Torque fasteners to specification.

TORQUE

Radius Rods to Bearing Carrier:

52 ft-lbs (70 Nm) + 90°

9. Install wheel and four wheel nuts. Torque wheel nuts

to specification.

TORQUE

Wheel Lug Nuts:

120 ft-lbs (163 Nm)

FINAL DRIVE
