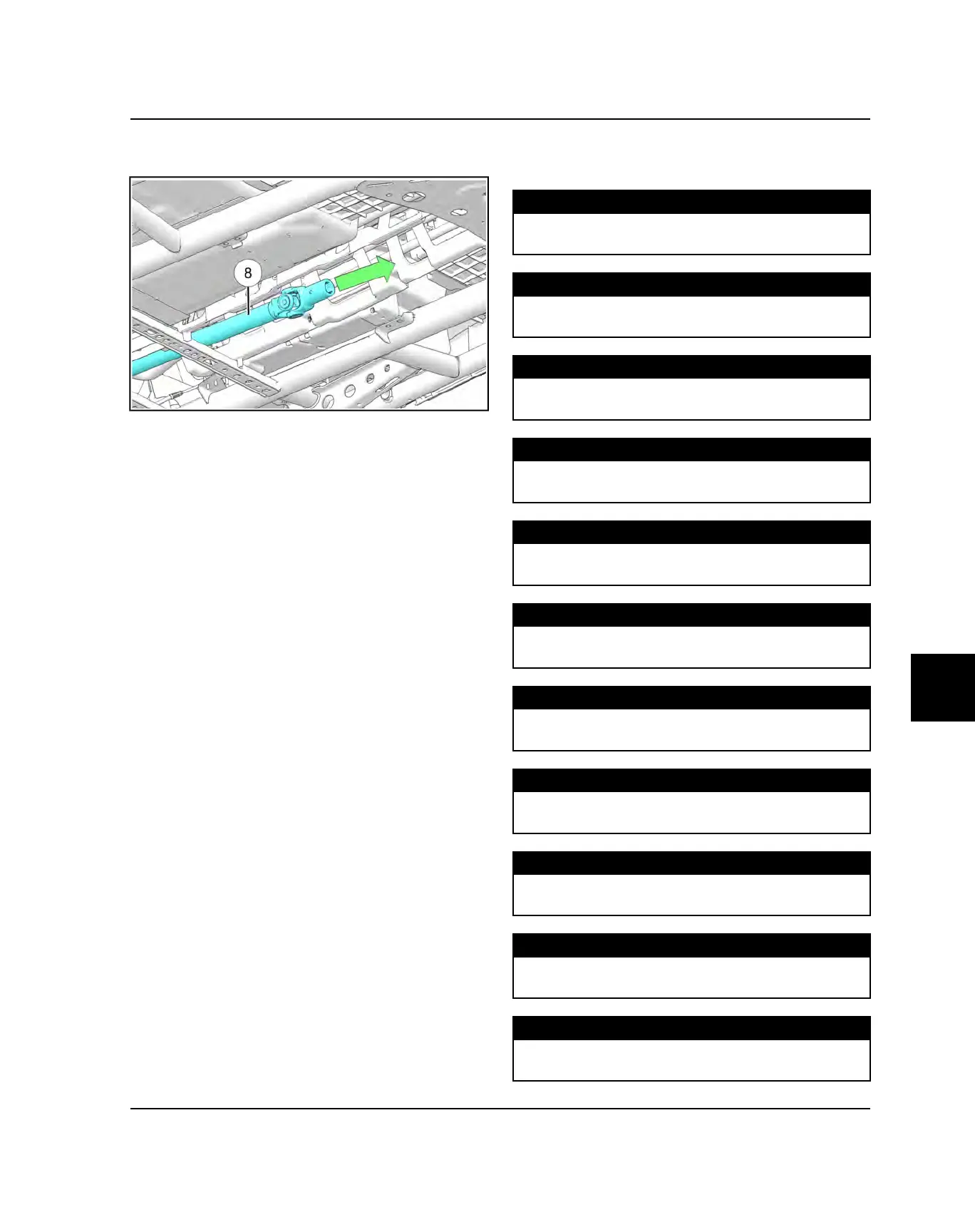

11. Remove rear prop shaft
i
through the bottom of the
vehicle.
INSTALLATION
1. Reverse removal procedure for prop shaft installation.
TORQUE
Support Bearing Fasteners:
30 ft-lbs (40 Nm)
TORQUE
Roll Hoop Fasteners:
13 ft-lbs (18 Nm)
TORQUE
Prop Shaft to Transmission Coupler Fasteners:
11 ft-lbs (15 Nm)
TORQUE
Prop Shaft Mounting Plate Fasteners:
15 ft-lbs (20 Nm)
TORQUE
Body Fasteners:
7 ft-lbs (10 Nm)
TORQUE
Control Arm Fasteners:
74 ft-lbs (100 Nm)
TORQUE
Sub Frame Mounting Fasteners (Rear):
148 ft-lbs (200 Nm)
TORQUE
Sub Frame Mounting Fasteners (Front):
33 ft-lbs (45 Nm)
TORQUE
Tie Rod End Nut:
30 ft-lbs (40 Nm) + 90°
TORQUE
Ball Joint Fasteners:
44 ft-lbs (60 Nm)
TORQUE
Wheel Hub Castle Nut:
180 ft-lbs (244 Nm)
FINAL DRIVE
