9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
8.41

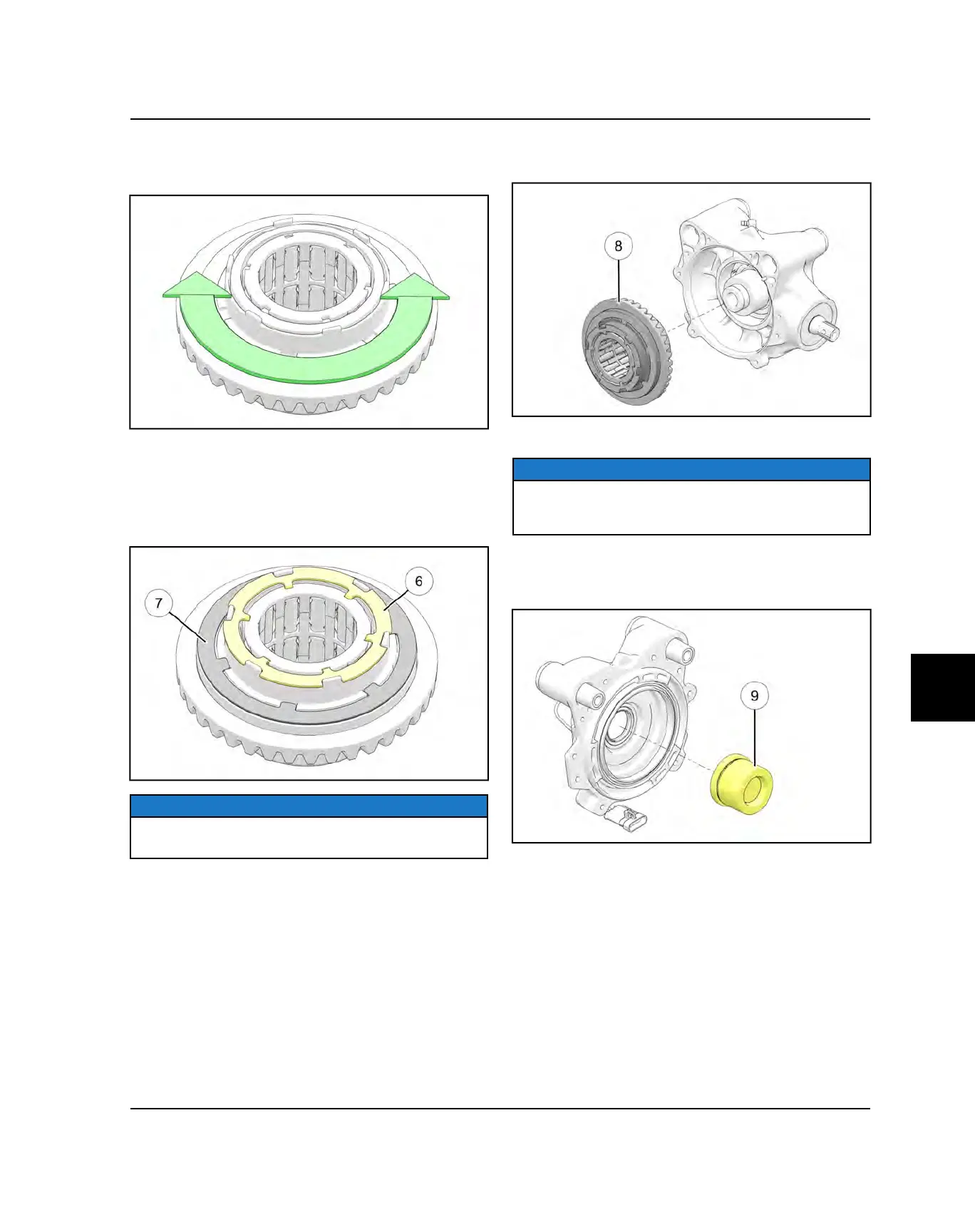

8. Check the action of the springs by rotating in both
directions to ensure the spring and retainer are
installed properly.
9. Install the armature plate
y
and cage plate
u
. Be
sure all of the armature plate tabs are fully engaged
into the roll cage assembly and that it is resting
properly on the spring retainer. Be sure the cage plate
is resting properly on the spring retainer, and all tabs
are fully engaged.
NOTICE
Verify armature plate tabs are in the roll cage slots and
that it rests properly on the spring retainer.
10.Carefully install the ring gear and roll cage assembly
i
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTICE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted, fluid leakage may
occur.
12.Carefully install the LH output hub assembly
o
into
the cover plate. Take care not to damage the new
cover plate seal while installing the output hub.
FINAL DRIVE
