9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

9.45

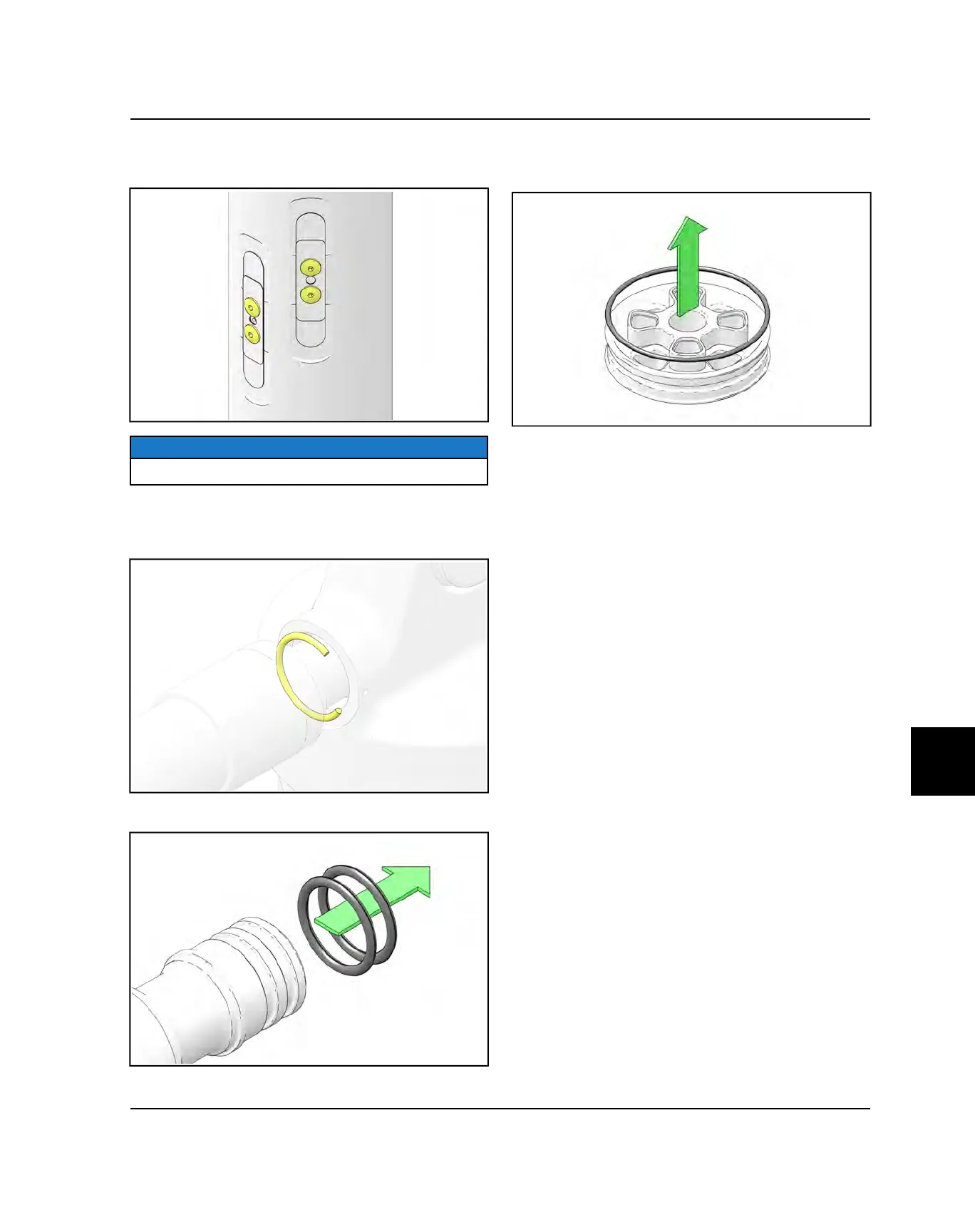

Bypass internal body assembly

37.Remove screws using a 5/64" hex wrench.

NOTICE

Observe location, size and thickness of bypass valves.

38.To remove the remote hose assembly, de-pressurize

reservoir, push hose in and remove retaining ring with

a small pick.

39.Remove hose o-rings.

40.Pistons are equipped with an energizing o-ring under

piston bearing. Clean the surface with contact

cleaner.

STEERING / SUSPENSION
