Pum p Induction Notes:
A Apply continuous bead of marine grade silicone to a mating surfaces of the hull, scoop, front and side.....
edges of ride plate, and front and rear sections of the inlet grate. PN 8560054. Cavitation may occur
if silicone is not continuously applied. Allow 24 hours to cure before operating watercraft.
B 8ft.lb s. (11Nm ) Ap pl y Loc titet 242 to threads......
NOTE: Assemble ride plate and inlet grate at the same time.
A
A
A
B
B

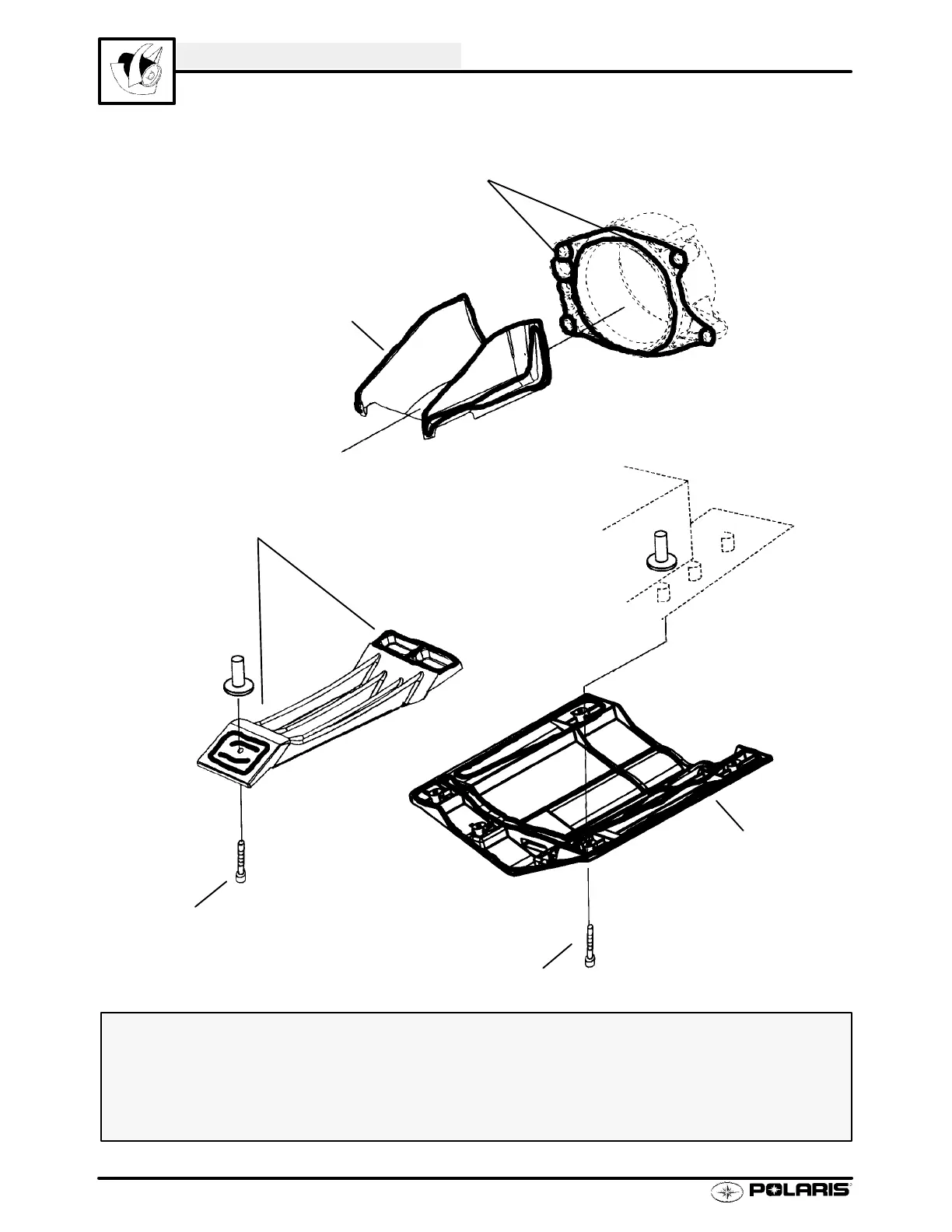

Pump Housing
O--ring
Intake Scoop
Intake Grate
Ride Plate
A
Final Drive / Propulsion
5.8
2002 Pump Induction -- Genesis Ser ies
