4 - 13
b. Gently push down and out to release the Pack Frame Hook Tabs (Figure 4-10) from the Platen
of the Bottom Door Assembly.
c. Squeeze the Pack Frame Hinges to release it from the plastic hinge posts on the Bottom Door
Assembly. Lift out the Pack Frame.

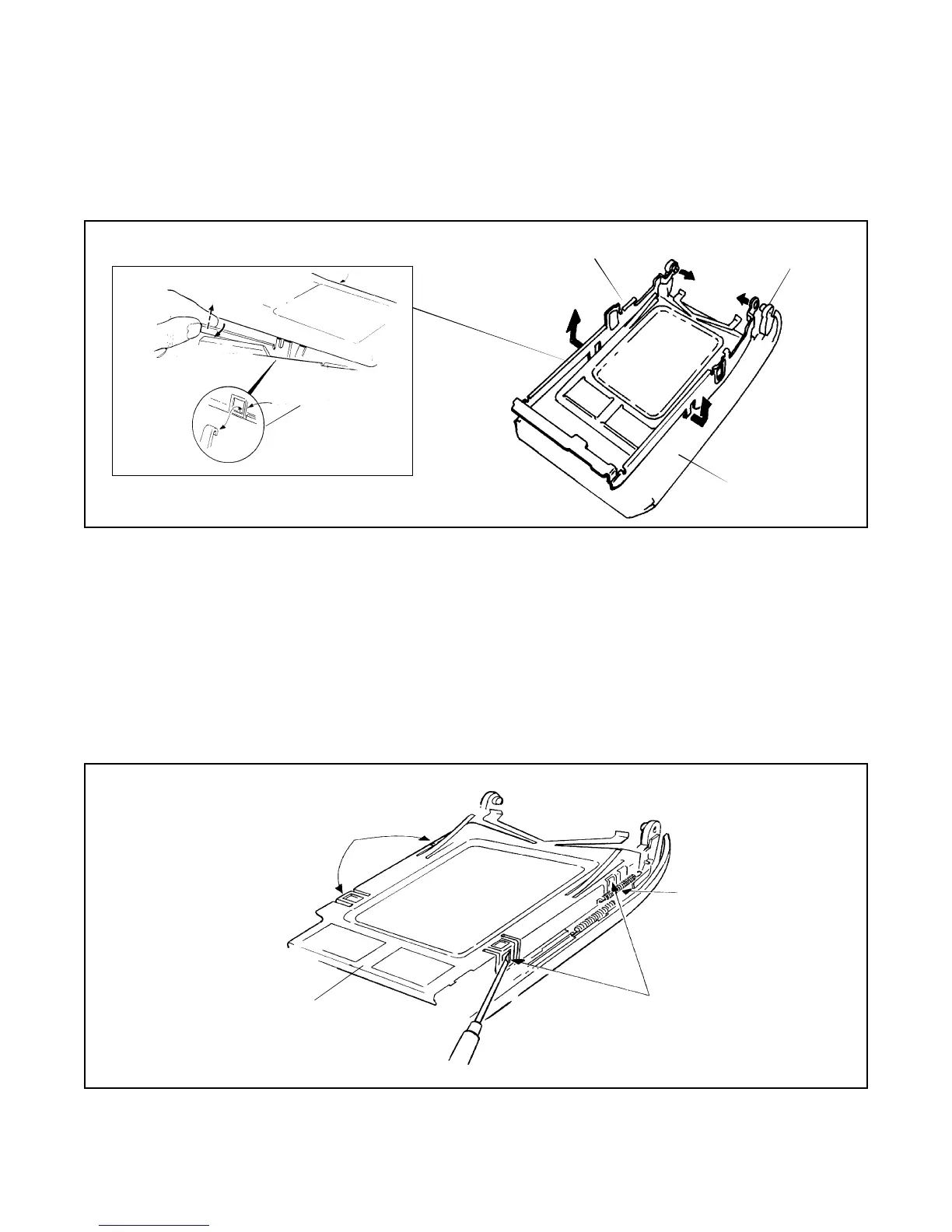

Figure 4-10. Removal of Pack Frame from Bottom Door
d. Using tweezers, remove the Storage Pick Spring (Figure 4-11) from the Storage Pick
Assembly. Lift out the Storage Pick Spring.
e. Using a narrow blade flat screwdriver, gently pry out each latch to release the Platen from the
Bottom Door Assembly. Lift out the Platen.
Figure 4-11. Removal of Platen from Bottom Door
PACK
FRAME
SLOT IN
PLATEN
BOTTOM DOOR
ASSEMBLY
PLASTIC HINGE
POST
METAL SPRING
LATCH
PLATEN
METAL SPRING
LATCH
STORAGE PICK
SPRING
