4 - 14
f. Using a narrow blade flat screwdriver, lift up the red Spreader Bar to access its plastic locking
tabs (Figure 4-12).
g. Using a narrow blade flat screwdriver, gently pry up the plastic locking tabs above each of the
Bottom Door plastic locating pins to release the Spread Roll Assembly from the Bottom Door.
Gently lift out the Spread Roll Assembly.

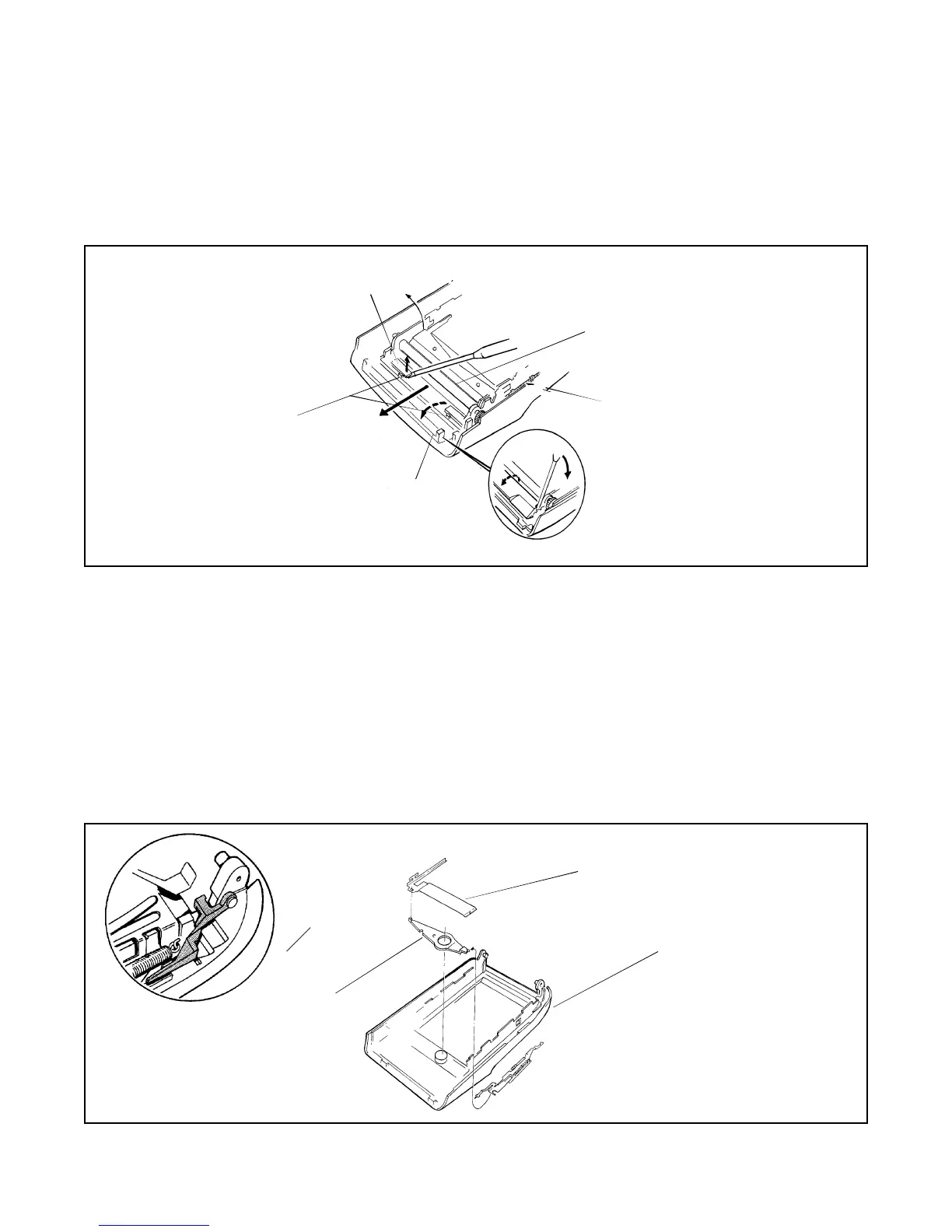

Figure 4-12. Removal of Spread Roll Assembly from Bottom Door
h. Lift up and out the Film Shade from the plastic locating pin on the Actuator Link (Figure 4-13).
i. Lift out Storage Pick Assembly. (NOTE: In reassembly, be certain the Full Chamber Link lies
on top of the Storage Pick Assemnbly. See the inset in Figure 4-13.)
j. Lift out Actuator Link.
Figure 4-13. Removal of Film Shade, Storage Pick, and Actuator Link from Bottom Door
SPREAD ROLL
ASSEMBLY
BOTTOM DOOR
ASSEMBLY
SPREADER BAR
PLASTIC
LOCATING
PINS
PLASTIC
LOCKING
TAB
FILM
SHADE
BOTTOM
DOOR
STORAGE PICK
ASSEMBLY
ACTUATOR
LINK
FULL
CHAMBER
LINK
STORAGE
PICK
ASSEMBLY
