Polaroid Joshua Vision User Manual

4 - 15
3. Reassembly
To reassemble and reinstall the Bottom Door Assembly, follow the disassembly and removal
steps in reverse order.
Note: When re-installing the Spread Roll Assembly (Figure 4-14) make sure the Storage
Pick Assembly is properly positioned to allow the Spread Roll Assembly to slide
into postion without damaging the pick.
If the Storage Pick Assembly is properly positioned then:
• Pick should be in its retract position.
• Film Shade should be over the Actuator Link.
Once the Storage Pick Assembly and the Film Shade are properly positioned, gently
insert the Spread Roll Assembly into its slots on the Bottom Door Assembly making
sure that the pick is properly positioned inside the provided slot (opening) in the
Spread Roll Assembly. Manually actuate the Pick to make sure it operates properly.
(Pick slides freely between opening in Spread Rollers.)

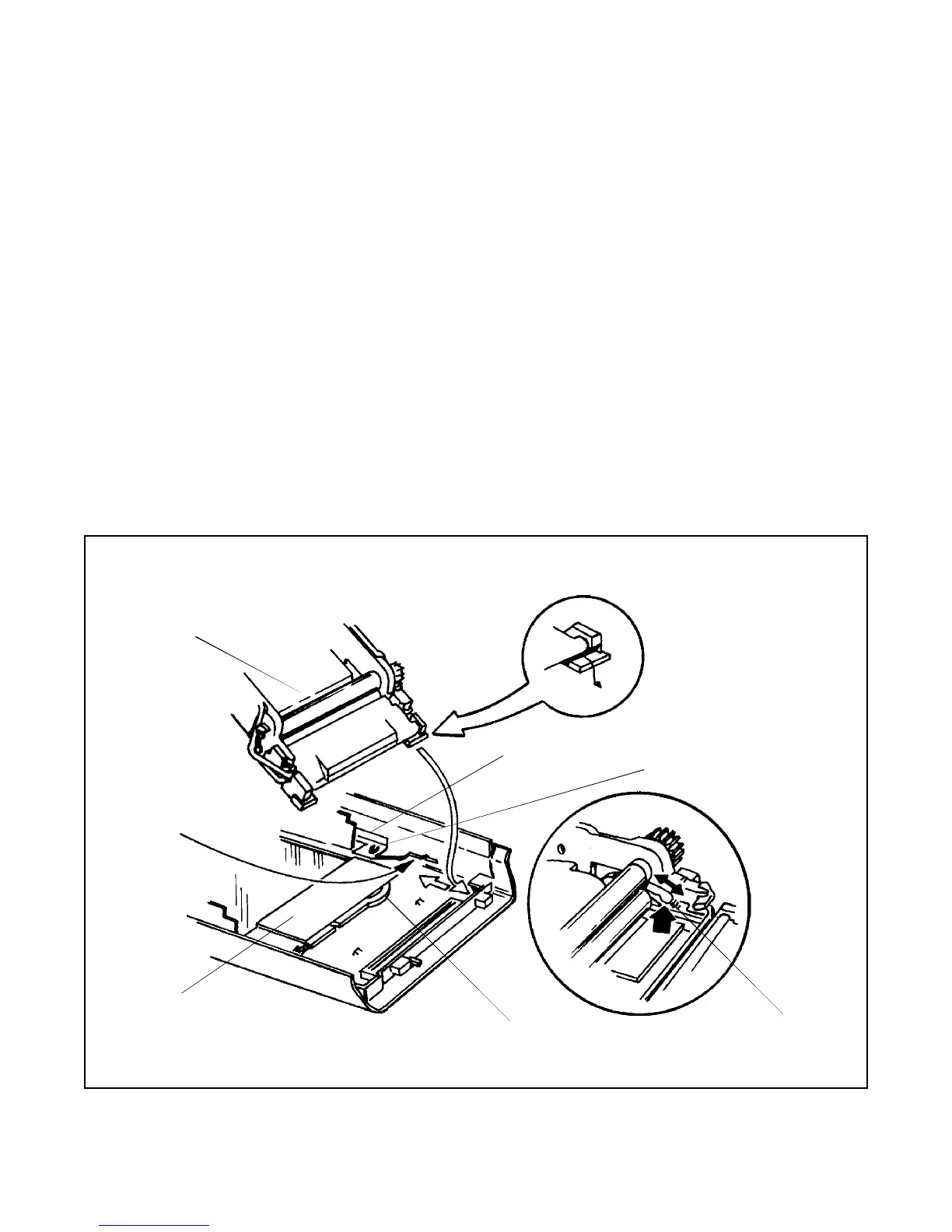

Figure 4-14. Installation of Spread Roll Assembly
FILM SHADE
PICK
SPREAD ROLL
ASSEMBLY
PICK
ACTUATOR LINK
ACTUATOR LINK
LOCATING PIN
STORAGE PICK
ASSEMBLY
