4 - 16
LIFT
TOP COVER
LONG
HINGE
PIN
SHORT
HINGE
PIN
TOP COVER
TAB
Top Cover
1. Removal
a. Using needlenose pliers or tweezers, pull out the pins (Figure 4-15) that hinge the Top Cover to
the Main Body of the Camera. (The Top Cover springs will retract.)

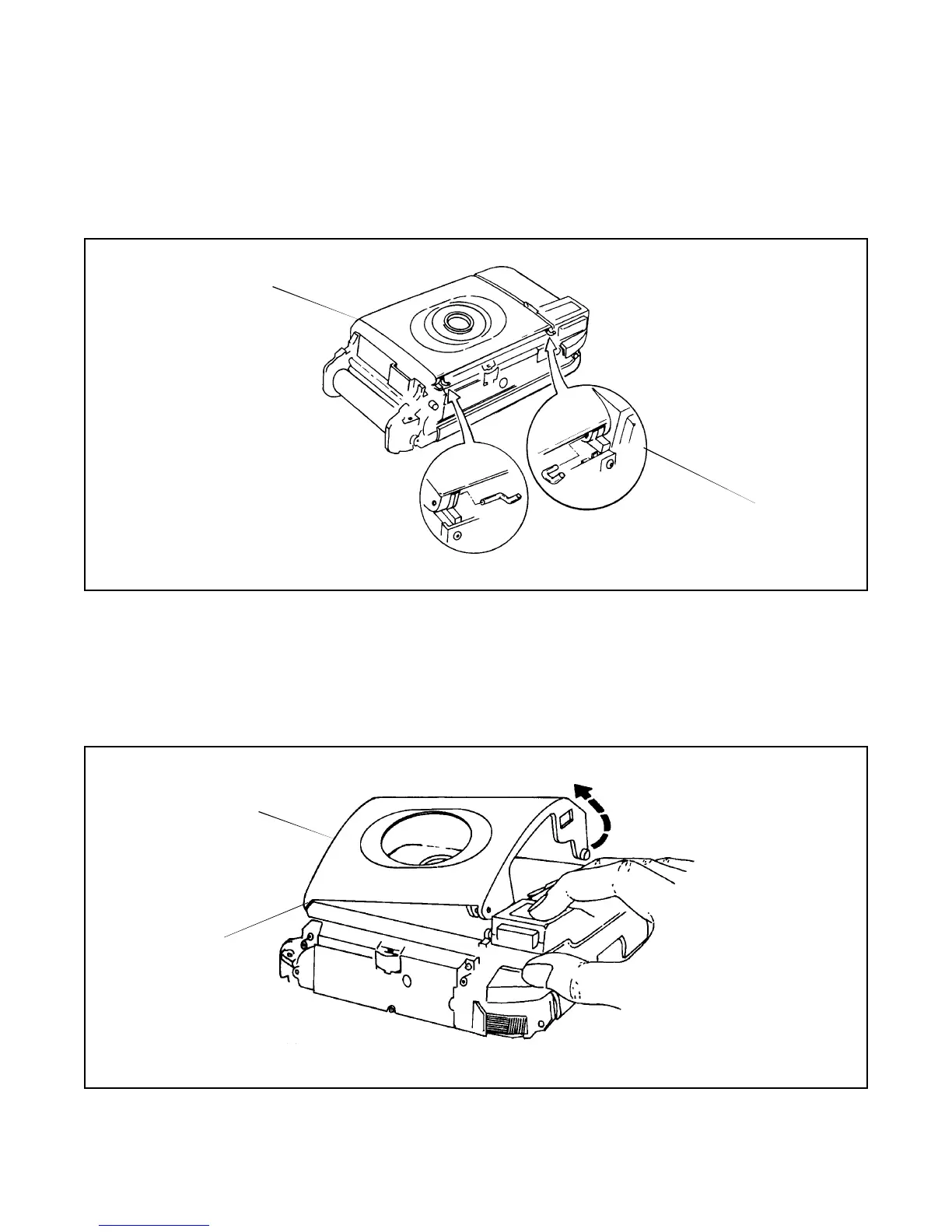

Figure 4-15. Removal of Top Cover Hinge Pins
b. Gently pry up the Top Cover (Figure 4-16) to release it from the Shutter Assembly and the Main
Body of the camera. Lift off the Top cover.
Figure 4-16. Removal of Top Cover
