d. Using a narrow blade flat screwdriver or a dental pick, pry the bellows retainer tabs (two
places) (Figure 4-20) out and then release the VMC/Bellows Assembly from the Shutter
Assembly .

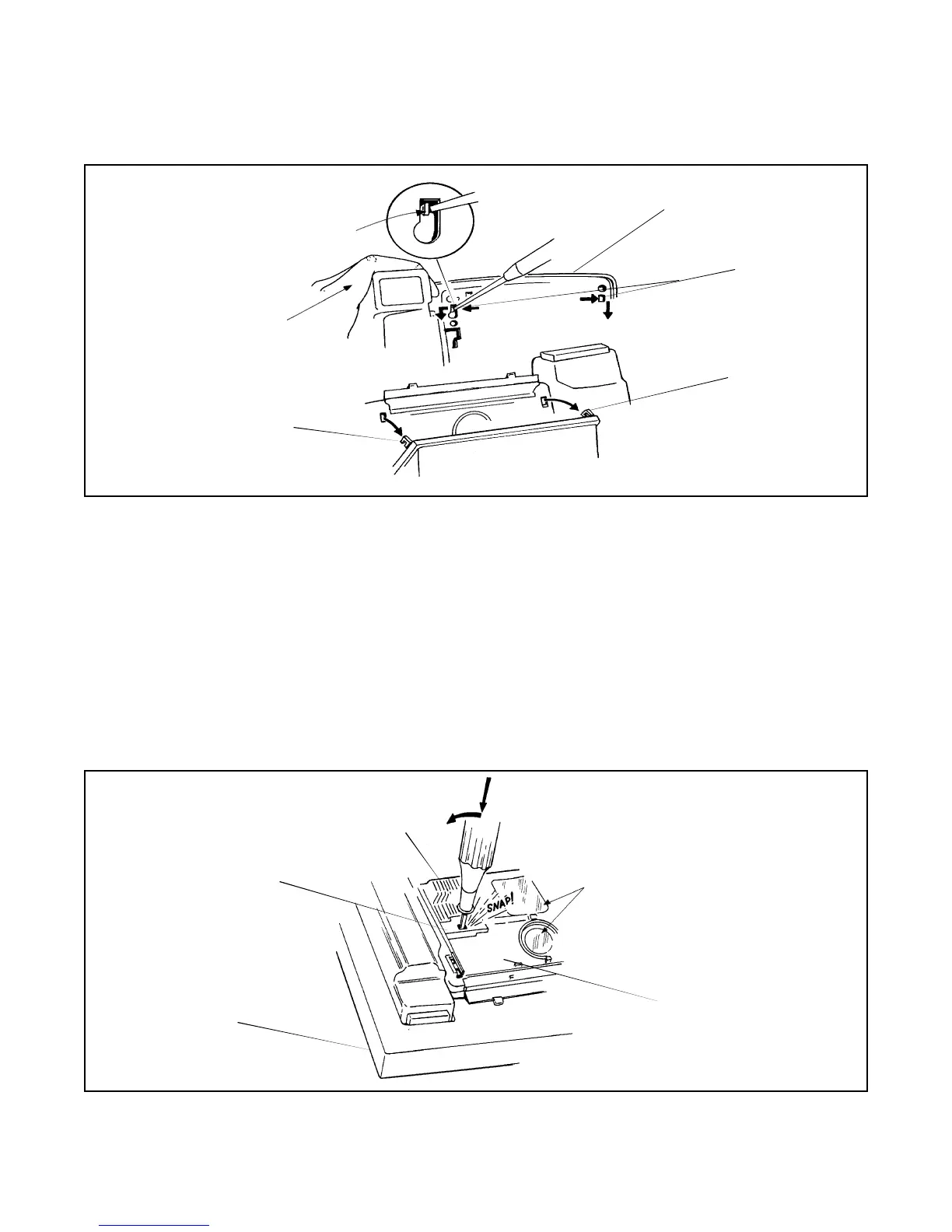

Figure 4-20. Disconnect VMC/Bellows Assembly from Shutter Assembly
e. Manually retract VMC/Bellows Assembly (Rubber Bellows) to access back of Shutter
Assembly.
Note: If necessary, straighten the Bellows locking tabs with tweezers or needlenose pliers.
f. Place the Shutter Assembly into the Shutter Support Fixture (Figure 4-21).
g. Using a narrow blade flat screwdriver, gently push in the slot of the Flex Connector Cap to
release its locking tab. A snap sound occurs indicating that it is unlocked.
Figure 4-21. Release (Unsnap) Flex Connector from Shutter
BELLOWS
BELLOWS
RETAINER
TAB
GRIP FLASH
WITH HAND
BELLOWS
LOCKING
TAB
SHUTTER
ASSEMBLY
BELLOWS
LOCKING
TAB
BELLOWS
RETAINER
TABS
FLEX
SHUTTER
ASSEMBLY
FLEX
CONNECTOR
CAP
SHUTTER SUPPORT
FIXTURE #13556
