h. Release the Flex from the Connector Cap (Figure 4-22).
Caution: When prying out the unsnapped Flex Connector Cap be careful not to
scratch, dirty or damage the lens.
i. Using a solder aid tool, remove the plastic Cap (Connector) from the Flex (Figure 4-22).

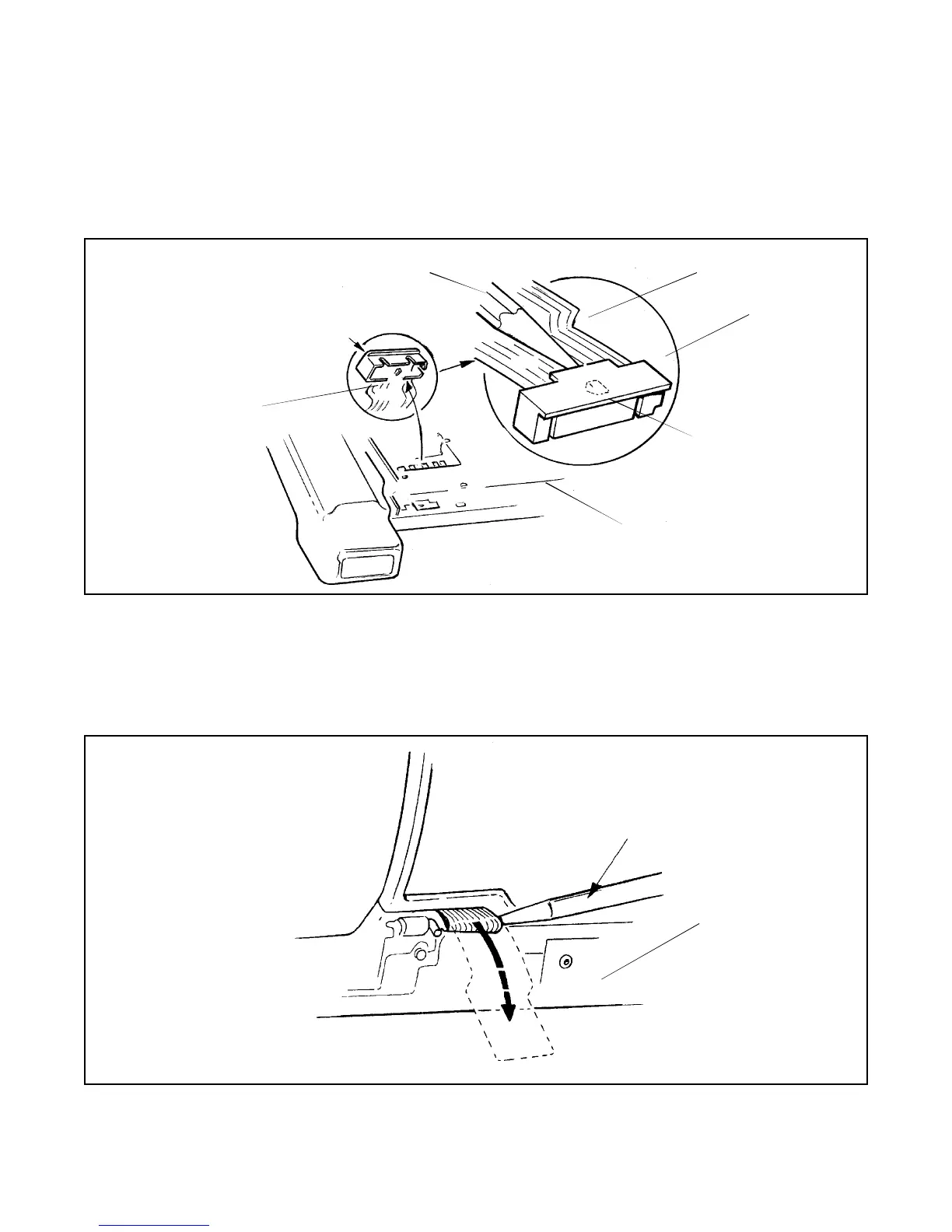

Figure 4-22. Removal of the Flex Connector
j. Using a solder aid stick, gently pull out the Flex (Figure 4-23) to make it easier to remove
the Shutter Assembly hinge pins.
Figure 4-23. Pulling Out Flex to Facilitate Removal of Shutter Hinge Pins
SOLDER AID
TOOL
FLEX
TAB
SHUTTER
ASSEMBLY
FLEX
CONNECTOR
CAP
CONNECTOR
CAP
FLEX
SHUTTER
ASSEMBLY
SOLDER AID
TOOL
