Polycom SoundStation IP 7000 - Connecting Optional External Microphones

Setup Guide for the Polycom SoundStation IP 7000 Phone
1 - 8
6. To connect phones, plug one end of the Console Interconnect Cable into
one of the microphone connectors on the first phone and the other end of
the cable into one of the microphone connectors on the second phone.
7. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
Connecting Optional External Microphones
You can connect microphones to your phone using an optional
External Microphone Kit. Depending on the External Microphone Kit you
have, your kit will contain either two SoundStation IP 7000 extension
microphones (analog), or two Polycom HDX Microphone Arrays (digital).
You connect microphones to the microphone connectors on your phone. Your
phone has two microphone connectors.

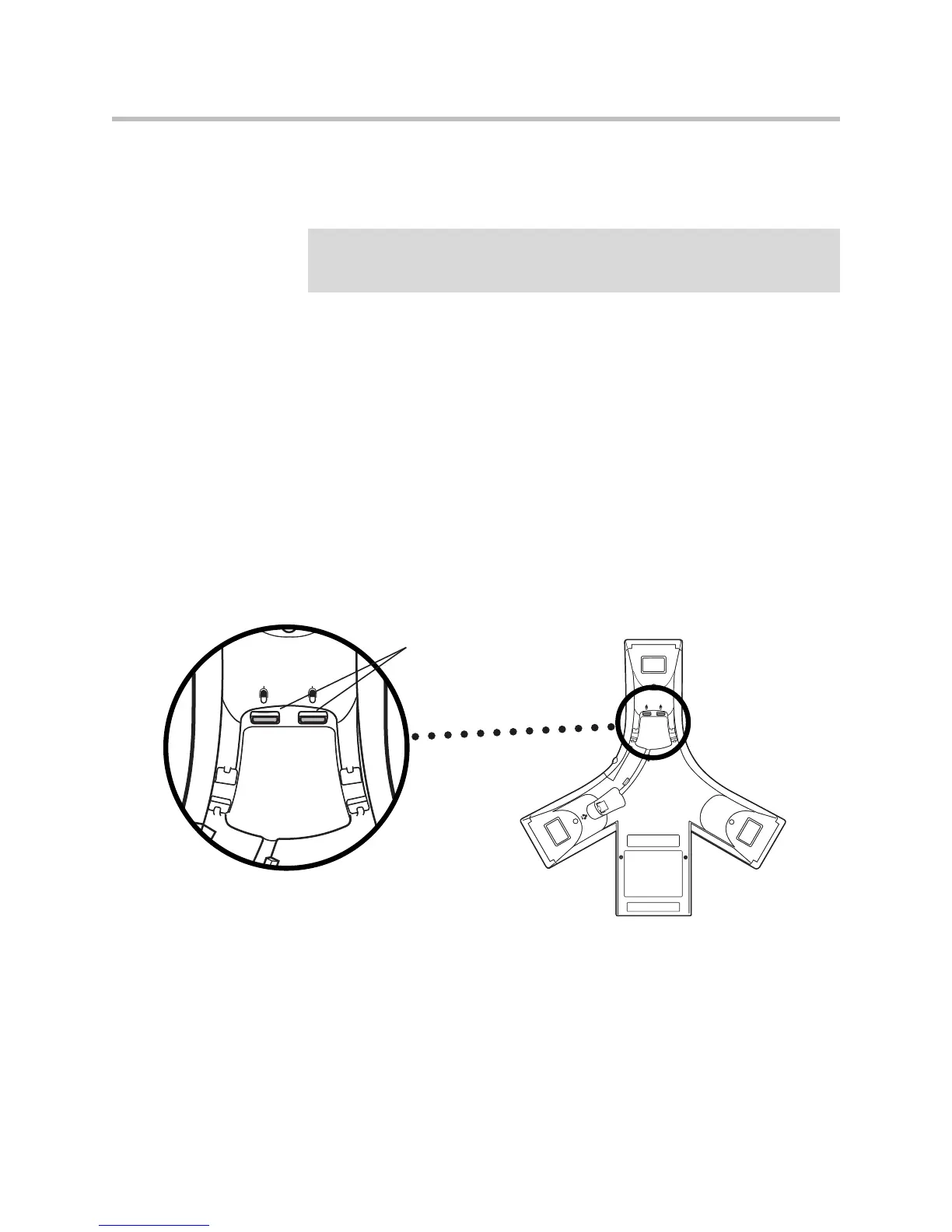

The following figure shows the microphone connectors on the back of your
phone.
Warning
When you insert the cable into a microphone connector, make sure the pins on the
cable line up with the microphone connector so that the cable inserts easily. If you
insert the Console Interconnect Cable upsidedown, you may damage the phone.
Microphone Connectors
